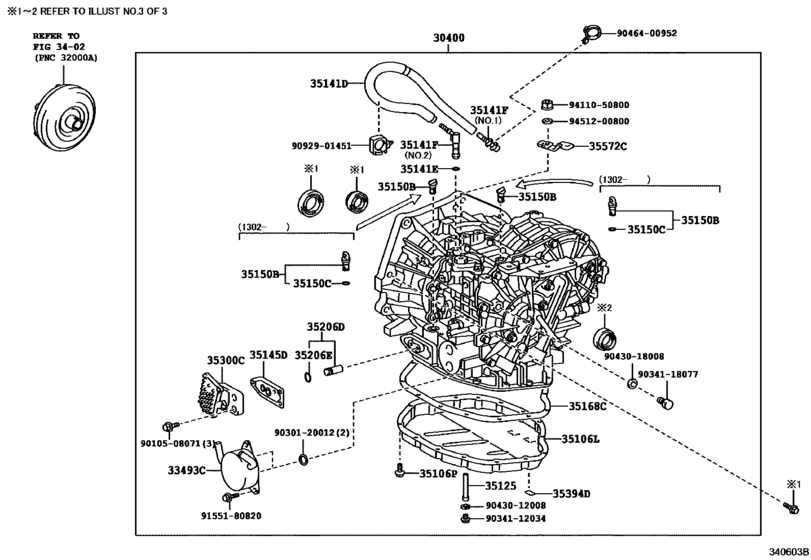

Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#) Diagram Toyota RACTIS
- Year
- 2014 - 2016
- Sales region
- Japan
- Frame
- NSP122
- grade
- X
- ENGINE
- 1NRFKE
- TRANSMISSION
- CVT
- From
- 05.2014
- To
- 07.2016
- Fuel Induction
- HTWCB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-52202 Transaxle Assy, Continuously Variable[05.2014 -] NSP12# Ｋ４１１ |
30400-52202 |
US $4,673.76 |
||
|
33493C
|
33493C
33493-52030 Cooler, Transmission Oil[05.2014 - 07.2016] NSP12# |
33493-52030 |
from US $160.16 |
||
|
35106L
|
35106L
35106-52080 Pan Sub-Assy, Transaxle Oil(Cvt)[05.2014 - 02.2016] NSP12# |
35106-52080 |
US $45.72 |
||
| replacement | |||||
|
35106L
|
35106L
35106-52090 Pan Sub-Assy, Transaxle Oil(Cvt)[05.2014 - 02.2016] NSP12# |
35106-52090 |
from US $51.38 |
||
|
35106L
|
35106L
35106-52090 Pan Sub-Assy, Transaxle Oil(Cvt)[02.2016 -] NSP12# |
35106-52090 |
from US $51.38 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[05.2014 -] NSP12# |
90119-06173 |
from US $0.90 |
||
|
35125
|
35125
35125-52200 Tube, Transmission Oil Filler, No.1[05.2014 -] NSP12# |
35125-52200 |
US $5.28 |
||
|
35141D
|
35141D
35121-52030 Hose(For Breather Plug)[05.2014 -] NSP12# |
35121-52030 |
US $7.86 |
||
|
35141E
|
35141E
90301-08015 Ring, O (For Breather Plug)[05.2014 - 07.2016] NSP12# |
90301-08015 |
from US $2.24 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[05.2014 -] NCP12#,NSP12# ＮＯ．１ |
90930-03149 |
from US $3.52 |
||
|
35141F
|
35141F
90930-03209 Plug, Breather, No.1(Cvt)[05.2014 -] NSP12# ＮＯ．２ |
90930-03209 |
US $2.97 |
||
|
35150B
|
35150B
35150-48010 Plug, Transaxle Hole[05.2014 - 07.2016] NSP12# |
35150-48010 |
US $4.48 |
||
|
35150C
|
35150C
90301-09173 Ring, O(For Transmission Oil Filler Tube)[05.2014 -] NSP12# |
90301-09173 |
from US $2.24 |
||
|
35168C
|
35168C
35168-52030 Gasket, Transaxle Oil Pan(Cvt)[05.2014 -] NSP12# |
35168-52030 |
from US $7.52 |
||
|
35394D
|
35394D
35394-48010 Magnet, Oil Cleaner (For Transmission)[05.2014 -] NSP12# |
35394-48010 |
from US $4.48 |
||
|
35572C
|
35572C
35572-52070 Lever, Transmission Control Shaft[05.2014 -] NSP12# |
35572-52070 |
US $8.30 |
||
|
9010508071
|
9010508071
90105-08071 Bolt (For Transaxle Rear Cover Setting) |
90105-08071 |
US $0.70 |
||
|
9030120012
|
9030120012
90301-20012 Ring, O (For Transmission Oil Cooler) |
90301-20012 |
from US $2.65 |
||
|
9034112034
|
9034112034
90341-12034 Plug Sub-Assy, Drain (Atm) |
90341-12034 |
from US $3.04 |
||
|
9034118077
|
9034118077
90341-18077 Plug , Filler(CVT FE) |
90341-18077 |
from US $3.04 |
||
|
9043012008
|
9043012008
90430-12008 Gasket (For Shift Inter Lock Plate) |
90430-12008 |
from US $0.88 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9046400952
|
9046400952
90464-00952 New Genuine Part |
90464-00952 |
US $2.72 |
||
|
9092901451
|
9092901451
90929-01451 New Genuine Part |
90929-01451 |
US $1.46 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
