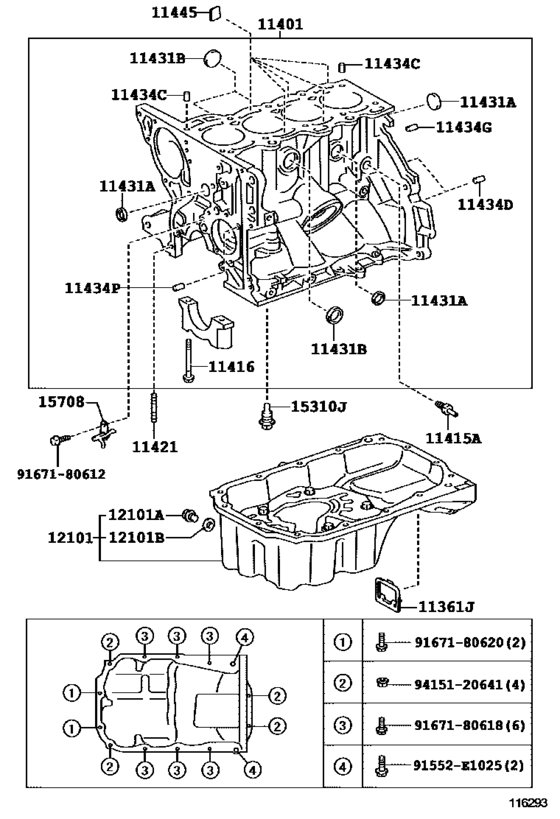

Cylinder Block ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11361J
|
11361J
11361-23020 Cover, Flywheel Housing Under[10.2009 -] 2SZFE..SCP100 |
11361-23020 |
US $6.87 |
||
|
11401
|
11401
11401-23043 Block Sub-Assy, Cylinder[10.2009 -] 2SZFE..SCP100 |
11401-23043 |
US $1,528.80 |
||
|
11415A
|
11415A
90910-09116 Plug, Water Drain Cock(For Cylinder Block)[10.2009 -] 2SZFE..SCP100 |
90910-09116 |
US $4.37 |
||
|
11416
|
11416
90105-10492 Bolt(For Crankshaft Bearing Cap Set)[10.2009 -] 2SZFE..SCP100 |
90105-10492 |
US $2.91 |
||
|
11421
|
11421
90116-06145 Bolt, Stud(For Oil Pan)[10.2009 -] 2SZFE..SCP100 |
90116-06145 |
US $1.51 |
||
|
11431A
|
11431A
96411-62500 Plug, Tight, No.1[10.2009 -] 2SZFE..SCP100 |
96411-62500 |
from US $2.62 |
||
|
11431B
|
11431B
96411-63000 Plug, Tight[10.2009 -] 2SZFE..SCP100 |
96411-63000 |
from US $2.61 |
||
|
11434C
|
11434C
90253-12002 Pin, Ring[10.2009 -] 2SZFE..SCP100 L=12,OD=12 |
90253-12002 |
from US $0.55 |
||
|
11434D
|
11434D
90250-06030 Pin, Straight(For Timing Chain Cover)[10.2009 -] 2SZFE..SCP100 L=12,OD=6 |
90250-06030 |
US $1.31 |
||
|
11434G
|
11434G
90250-10214 Pin, Straight(For End Plate)[10.2009 -] 2SZFE..SCP100 |
90250-10214 |
from US $1.29 |
||
|
11434P
|
11434P
90250-06030 Pin, Straight(For Timing Chain Cover)[10.2009 -] 2SZFE..SCP100 L=12,OD=6 |
90250-06030 |
US $1.31 |
||
|
11445
|
11445
11445-23010 Spacer, Cylinder Block Water Jacket[10.2009 -] 2SZFE..SCP100 |
11445-23010 |
US $13.63 |
||
|
12101
|
12101
12101-23052 Pan Sub-Assy, Oil[10.2009 -] 2SZFE..SCP100 |
12101-23052 |
US $294.11 |
||
|
12101A
|
12101A
90341-12032 Plug(For Oil Pan Drain)[10.2009 -] 2SZFE..SCP100 |
90341-12032 |
from US $2.34 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[10.2009 -] 2SZFE..SCP100 |
90430-12031 |
from US $0.78 |
||
|
15310J
|
15310J
15310-23020 Regulator Assy, Oil[10.2009 -] 2SZFE..SCP100 |
15310-23020 |
US $24.90 |
||
|
15708
|
15708
15708-23020 Nozzle Sub-Assy, Oil, No.1[10.2009 -] 2SZFE..SCP100 |
15708-23020 |
US $24.32 |
||
|
91552E1025
|
91552E1025
91552-E1025 New Genuine Part |
91552-E1025 |
US $2.06 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.59 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $0.69 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $0.69 |
||
|
9415120641
|
9415120641
94151-20641 New Genuine Part |
94151-20641 |
US $0.83 |
