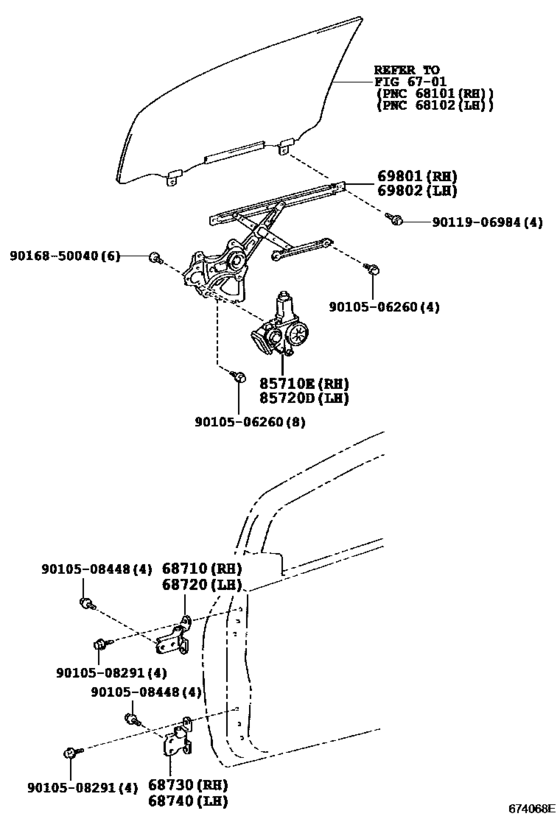

Front Door Window Regulator & Hinge ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[10.2009 - 08.2010] SCP100 |
68710-12151 |
from US $31.86 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[10.2009 - 08.2010] SCP100 |
68720-12151 |
from US $31.79 |
||
|
68730
|
68730
68730-33021 Hinge Assy, Front Door, Lower Rh[10.2009 - 08.2010] SCP100 |
68730-33021 |
from US $35.63 |
||
|
68740
|
68740
68740-33021 Hinge Assy, Front Door, Lower Lh[10.2009 - 08.2010] SCP100 |
68740-33021 |
from US $35.92 |
||
|
69801
|
69801
69801-52070 Regulator Sub-Assy, Front Door Window, Rh[10.2009 -] SCP100 |
69801-52070 |
US $103.32 |
||
|
69802
|
69802
69802-52070 Regulator Sub-Assy, Front Door Window, Lh[10.2009 -] SCP100 |
69802-52070 |
US $103.32 |
||
|
85710E
|
85710E
85710-52140 Motor Assy, Power Window Regulator, Rh[10.2009 -] SCP100 |
85710-52140 |
US $372.74 |
||
|
85720D
|
85720D
85720-35140 Motor Assy, Power Window Regulator, Rh[10.2009 -] SCP100 |
85720-35140 |
from US $218.60 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.66 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.84 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.76 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
