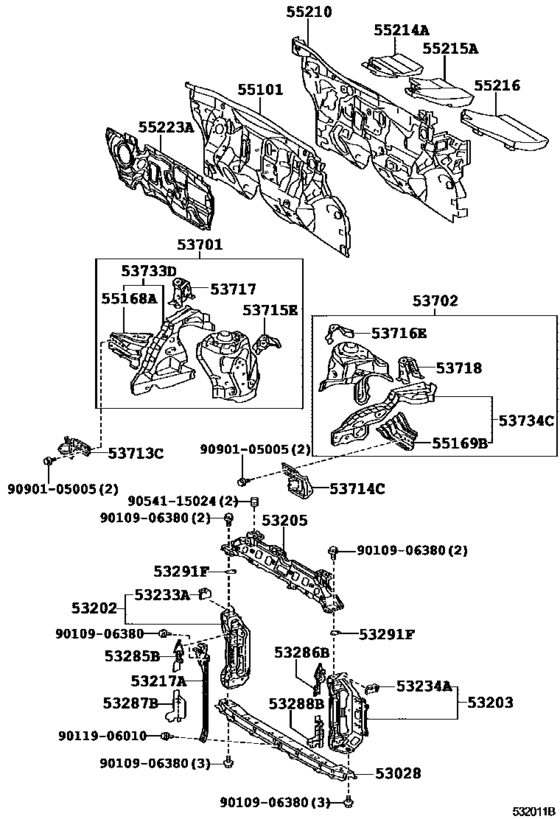

Front Fender Apron & Dash Panel ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53028
|
53028
53028-52070 Support Sub-Assy, Radiator, Lower[10.2009 -] SCP100 |
53028-52070 |
from US $117.88 |
||
|
53202
|
53202
53202-52901 Support Sub-Assy, Radiator, Rh[10.2009 -] SCP100 |
53202-52901 |
US $134.48 |
||
|
53203
|
53203
53203-52901 Support Sub-Assy, Radiator, Lh[10.2009 -] SCP100 |
53203-52901 |
US $157.44 |
||
|
53205
|
53205
53205-52090 Support Sub-Assy, Radiator, Upper[10.2009 -] SCP100 |
53205-52090 |
from US $143.48 |
||
|
53217A
|
53217A
52085-52010 Brace, Hood Lock Support[10.2009 - 08.2010] SCP100 |
52085-52010 |
US $34.78 |
||
|
53233A
|
53233A
53233-52010 Bracket, Headlamp, No.1 Rh[10.2009 -] SCP100 |
53233-52010 |
US $3.93 |
||
|
53234A
|
53234A
53234-52020 Bracket, Headlamp, No.1 Lh[10.2009 -] SCP100 |
53234-52020 |
US $3.93 |
||
|
53285B
|
53285B
53285-52220 Seal, Radiator Side Air, No.1[10.2009 -] SCP100 |
53285-52220 |
US $12.01 |
||
|
53286B
|
53286B
53286-52160 Seal, Radiator Side Air, No.2[10.2009 -] SCP100 |
53286-52160 |
US $12.01 |
||
|
53287B
|
53287B
53287-52040 Extension, Radiator Support, Rh[10.2009 -] SCP100 |
53287-52040 |
US $21.17 |
||
|
53288B
|
53288B
53288-52040 Extension, Radiator Support, Lh[10.2009 -] SCP100 |
53288-52040 |
US $19.49 |
||
|
53291F
|
53291F
53291-52070 Seal, Radiator Support To Frame[10.2009 -] SCP100 |
53291-52070 |
US $5.38 |
||
|
53701
|
53701
53701-52170 Apron Sub-Assy, Front Fender, Rh[10.2009 - 08.2010] SCP100 |
53701-52170 |
US $294.11 |
||
|
53702
|
53702
53702-52170 Apron Sub-Assy, Front Fender, Lh[10.2009 - 08.2010] SCP100 |
53702-52170 |
US $294.11 |
||
|
53713C
|
53713C
53705-52020 Extension, Front Fender Apron, Front Rh[10.2009 - 08.2010] SCP100 |
53705-52020 |
US $33.43 |
||
|
53714C
|
53714C
53706-52020 Extension, Front Fender Apron, Front Lh[10.2009 - 08.2010] SCP100 |
53706-52020 |
US $33.43 |
||
|
53715E
|
53715E
53715-52030 Extension, Front Fender Apron, Rear Rh[10.2009 -] SCP100 |
53715-52030 |
US $13.26 |
||
|
53716E
|
53716E
53716-52030 Extension, Front Fender Apron, Rear Lh[10.2009 -] SCP100 |
53716-52030 |
US $16.13 |
||
|
53717
|
53717
53703-52020 Plate, Fender Apron, Rh[10.2009 -] SCP100 |
53703-52020 |
US $30.58 |
||
|
53718
|
53718
53704-52060 Plate, Fender Apron, Lh[10.2009 -] SCP100 |
53704-52060 |
US $30.58 |
||
|
53733D
|
53733D
53707-52030 Apron Sub-Assy, Fender Side, Rh[10.2009 -] SCP100 |
53707-52030 |
US $131.04 |
||
|
53734C
|
53734C
53708-52030 Apron Sub-Assy, Fender Side, Lh[10.2009 -] SCP100 |
53708-52030 |
US $131.04 |
||
|
55101
|
55101
55101-52570 Panel Sub-Assy, Dash[10.2009 - 08.2010] SCP100 |
55101-52570 |
US $256.26 |
||
|
55168A
|
55168A
55168-52130 Bracket, Front Fender Mounting, Rh[10.2009 -] SCP100 |
55168-52130 |
US $24.53 |
||
|
55169B
|
55169B
55169-52130 Bracket, Front Fender Mounting, Lh[10.2009 -] SCP100 |
55169-52130 |
US $24.53 |
||
|
55210
|
55210
55210-52190 Insulator Assy, Dash Panel[10.2009 -] SCP100 |
55210-52190 |
US $128.13 |
||
|
55214A
|
55214A
55214-52150 Pad, Dash Panel Insulator, No.2[10.2009 -] SCP100 |
55214-52150 |
US $13.98 |
||
|
55215A
|
55215A
55215-52120 Pad, Dash Panel Insulator, No.3[10.2009 -] SCP100 |
55215-52120 |
US $26.21 |
||
|
55216
|
55216
55216-52050 Pad, Dash Panel Insulator, No.4[10.2009 -] SCP100 |
55216-52050 |
US $51.11 |
||
|
55223A
|
55223A
55223-52100 Insulator, Dash Panel, Outer[10.2009 -] SCP100 |
55223-52100 |
US $57.08 |
||
| replacement | |||||
|
55223A
|
55223A
55223-52101 Insulator, Dash Panel, Outer[10.2009 -] SCP100 |
55223-52101 |
US $51.83 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $1.08 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.97 |
||
|
9054115024
|
9054115024
90541-15024 Cushion, Radiator Support |
90541-15024 |
from US $3.45 |
||
|
9090105005
|
9090105005
90901-05005 New Genuine Part |
90901-05005 |
US $1.61 |
||
