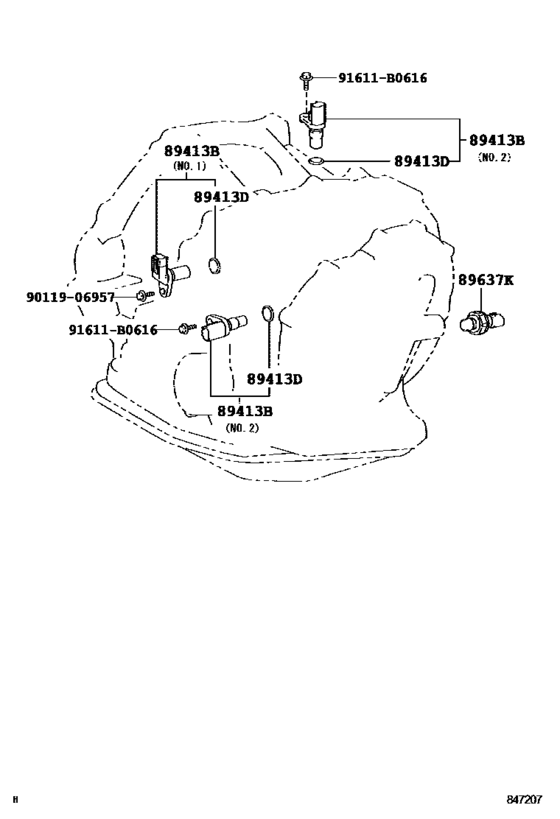

Overdrive & Electronic Controlled Transmission ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89413B
|
89413B
89413-32010
SENSOR, TRANSMISSION REVOLUTION
[10.2009 - 08.2010] SCP100 NO.1 |
89413-32010 |
— | ||
| replacement | |||||
|
89413B
|
89413B
89413-32011 SENSOR, TRANSMISSION REVOLUTION[10.2009 - 08.2010] SCP100 NO.1 |
89413-32011 |
from US $54.17 |
||
|
89413B
|
89413B
89413-60020
Sensor, Speed
[10.2009 - 08.2010] SCP100 NO.2 |
89413-60020 |
— | ||
| replacement | |||||
|
89413B
|
89413B
89413-60021 SENSOR TRANSMISSION[10.2009 - 08.2010] SCP100 NO.2 |
89413-60021 |
from US $48.08 |
||
|
89413D
|
89413D
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[10.2009 -] SCP100 |
90301-11008 |
from US $0.84 |
||
|
89637K
|
89637K
89637-63010 Sensor, Oil Pressure[10.2009 - 08.2010] SCP100 |
89637-63010 |
from US $68.64 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.70 |
||
|
9011906957
|
9011906957
90119-06957 New Genuine Part |
90119-06957 |
US $0.83 |
||
