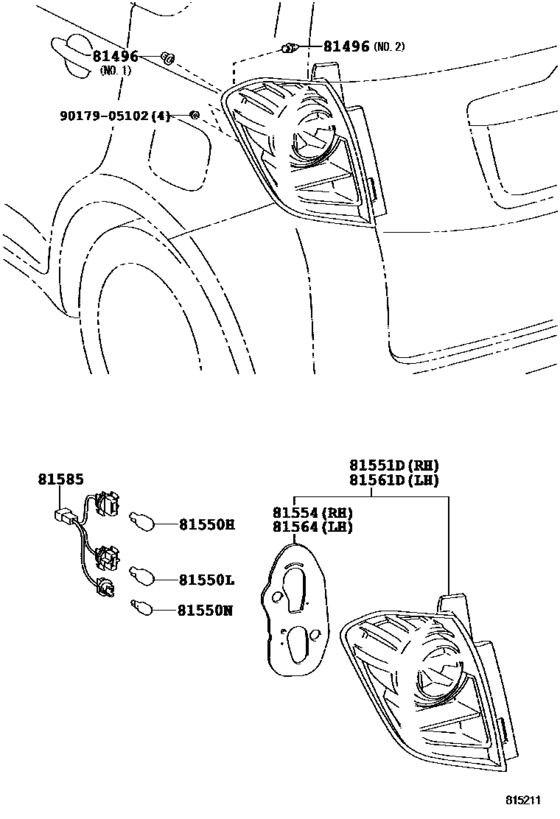

Rear Combination Lamp ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-52020 Guide, Rear Combination Lamp[10.2009 -] SCP100 NO.1 |
81496-52020 |
from US $0.76 |
||
|
81496
|
81496
81496-60010 Guide, Rear Combination Lamp[10.2009 -] SCP100 NO.2 |
81496-60010 |
from US $1.06 |
||
|
81550H
|
81550H
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[10.2009 -] SCP100 |
90981-13044 |
from US $1.57 |
||
|
81550L
|
81550L
90981-15021 Bulb (For Front Turn Signal Lamp)[10.2009 -] SCP100 |
90981-15021 |
from US $2.10 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[10.2009 -] SCP100 |
90981-11059 |
from US $1.37 |
||
|
81551D
|
81551D
81551-52750 Lens & Body, Rear Combination Lamp, Rh[10.2009 -] SCP100 |
81551-52750 |
from US $244.93 |
||
|
81554
|
81554
81552-52750 Gasket, Rear Combination Lamp Body, Rh[10.2009 -] SCP100 |
81552-52750 |
US $12.93 |
||
|
81561D
|
81561D
81561-52660 Lens & Body, Rear Combination Lamp, Lh[10.2009 -] SCP100 |
81561-52660 |
US $276.58 |
||
|
81564
|
81564
81562-52660 Gasket, Rear Combination Lamp Body, Lh[10.2009 -] SCP100 |
81562-52660 |
US $12.93 |
||
|
81585
|
81585
81555-52750 Socket & Wire, Rear Lamp[10.2009 -] SCP100 |
81555-52750 |
US $29.55 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.74 |
