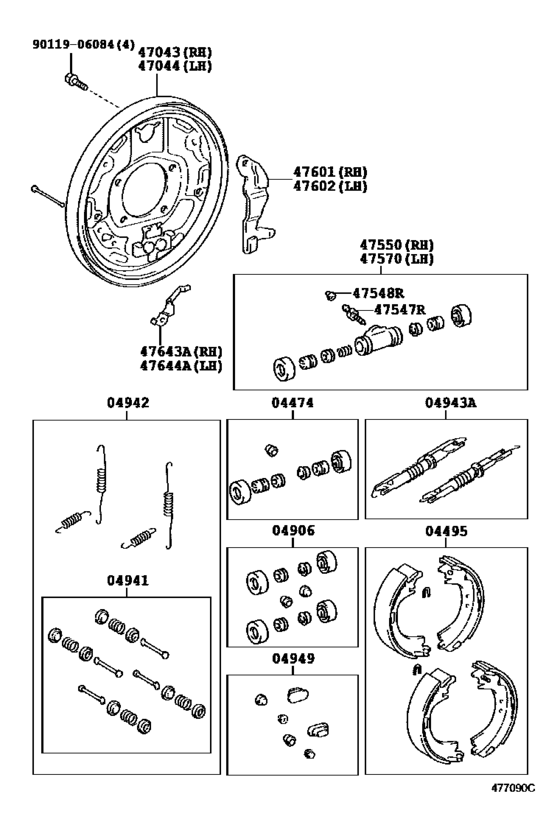

Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-52140 Cylinder Kit, Rear Wheel[10.2009 -] SCP100 |
04474-52140 |
US $26.38 |
||
|
04495
|
04495
04495-52120
Shoe Kit, Rear Brake
[10.2009 -] SCP100 MARK NBK LN521 |
04495-52120 |
— | ||
| replacement | |||||
|
04495
|
04495
04495-52121 Shoe Kit, Rear Brake[10.2009 -] SCP100 MARK NBK LN521 |
04495-52121 |
from US $65.83 |
||
|
04906
|
04906
04906-28040 Cup Kit, Rear Wheel Cylinder[10.2009 -] SCP100 |
04906-28040 |
US $15.59 |
||
|
04941
|
04941
04941-28010 Spring Kit, Rear Brake Shoe Hold Down[10.2009 -] SCP100 |
04941-28010 |
US $31.25 |
||
|
04942
|
04942
04942-13030 Spring Kit, Rear Brake[10.2009 -] SCP100 |
04942-13030 |
US $34.78 |
||
|
04943A
|
04943A
04943-52030 Strut Kit, Rear Brake[10.2009 -] SCP100 |
04943-52030 |
US $41.33 |
||
|
04949
|
04949
04949-13010 Plug Kit, Rear Brake[10.2009 -] SCP100 |
04949-13010 |
from US $11.80 |
||
|
47043
|
47043
47043-52120 Plate Sub-Assy, Brake Backing, Rear Rh[10.2009 -] SCP100 |
47043-52120 |
US $47.21 |
||
|
47044
|
47044
47044-52120 Plate Sub-Assy, Brake Backing, Rear Lh[10.2009 -] SCP100 |
47044-52120 |
US $47.21 |
||
|
47547R
|
47547R
47547-27030 Plug, Bleeder(For Front Disc Brake)[10.2009 -] SCP100 |
47547-27030 |
from US $3.10 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[10.2009 -] SCP100 |
31478-30010 |
from US $1.60 |
||
|
47550
|
47550
47550-28060 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[10.2009 -] SCP100 |
47550-28060 |
US $59.81 |
||
|
47570
|
47570
47550-28060 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[10.2009 -] SCP100 |
47550-28060 |
US $59.81 |
||
|
47601
|
47601
47601-12480 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[10.2009 -] SCP100 |
47601-12480 |
US $7.51 |
||
|
47602
|
47602
47602-12480 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)[10.2009 -] SCP100 |
47602-12480 |
US $7.51 |
||
|
47643A
|
47643A
47643-52120 Lever, Rear Brake Automatic Adjust, Rh[10.2009 -] SCP100 |
47643-52120 |
US $3.58 |
||
|
47644A
|
47644A
47644-52120 Lever, Rear Brake Automatic Adjust, Lh[10.2009 -] SCP100 |
47644-52120 |
US $3.58 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $0.99 |
||
