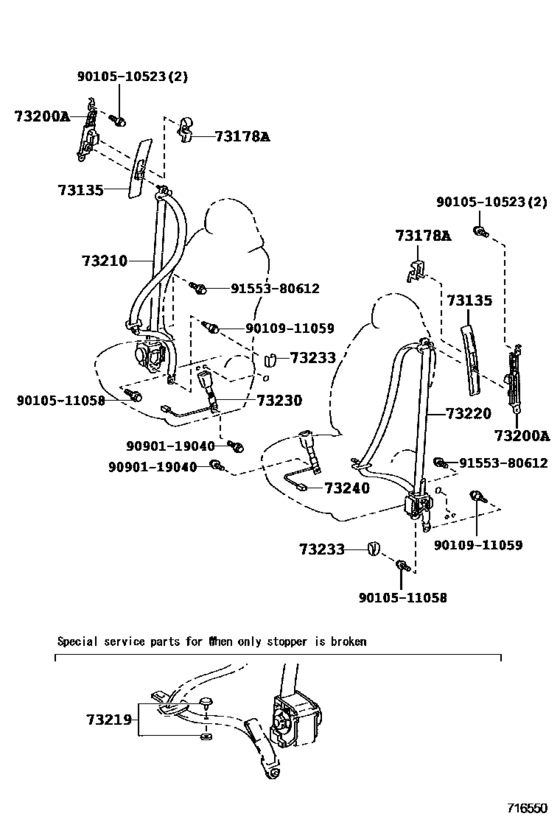

Seat Belt & Child Restraint Seat ([10.2009 - ] FRONT SEAT (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135
|
73135
73135-52020-B2 Cover, Shoulder Belt Anchorage Plate[10.2009 - 08.2010] SCP100 LT.GRAY,TRIM1# |
73135-52020-B2 |
US $8.74 |
||
|
73178A
|
73178A
73178-52020-B2 Cap, Seat Belt Anchor Cover[10.2009 - 08.2010] SCP100 LT.GRAY,TRIM1# |
73178-52020-B2 |
US $5.53 |
||
|
73200A
|
73200A
73200-52050-B2 Adjuster Assy, Front Shoulder Belt Anchor[10.2009 - 08.2010] SCP100 LT.GRAY,TRIM1# |
73200-52050-B2 |
US $49.50 |
||
|
73210
|
73210
73210-52661-E2 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [10.2009 - 08.2010] SCP100 GREGE,TRIM1# |
73210-52661-E2 |
US $423.70 |
||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[10.2009 -] SCP100 |
73219-33010 |
from US $0.84 |
||
|
73220
|
73220
73220-52691-E2 Belt Assy, Front Seat Outer, LhFRONT SEAT OUTER, LH [10.2009 - 08.2010] SCP100 GREGE,TRIM1# |
73220-52691-E2 |
US $423.70 |
||
|
73230
|
73230
73230-52650-E1 Belt Assy, Front Seat Inner, Rh[10.2009 - 08.2010] SCP100 GREGE,TRIM1# |
73230-52650-E1 |
US $42.66 |
||
|
73233
|
73233
73233-52010-B1 Cover, Lap Belt Outer Anchor[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
73233-52010-B1 |
US $7.71 |
||
|
73240
|
73240
73230-52760-E1 Belt Assy, Front Seat Inner, Lh[10.2009 - 08.2010] SCP100 GREGE,TRIM1# |
73230-52760-E1 |
US $63.77 |
||
|
9010510523
|
9010510523
90105-10523 BOLT FLANGE |
90105-10523 |
from US $1.01 |
||
|
9010511058
|
9010511058
90105-11058 BOLT FLANGE |
90105-11058 |
from US $0.87 |
||
|
9010911059
|
9010911059
90109-11059 BOLT |
90109-11059 |
from US $2.45 |
||
|
9090119040
|
9090119040
90901-19040 BOLT WWASHER |
90901-19040 |
US $1.51 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.63 |
