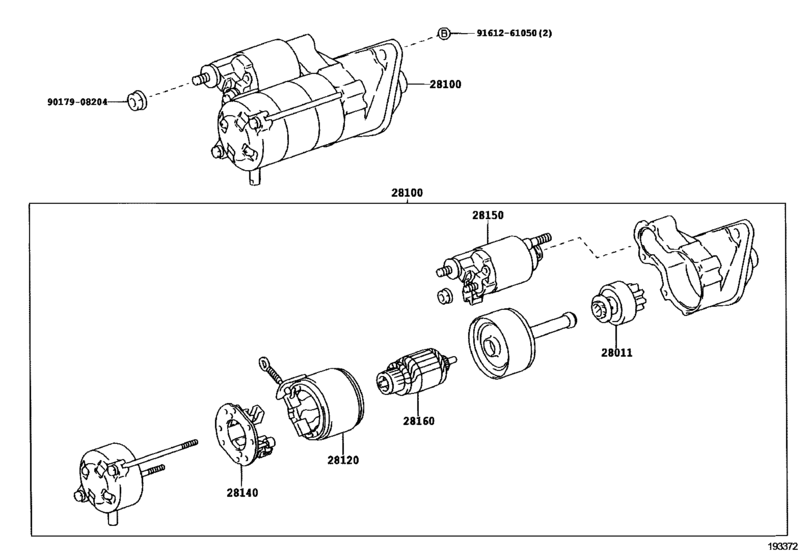

Starter ([10.2009 - ] 12V 0.8KW (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-23030 Clutch Sub-Assy, Starter[10.2009 -] 2SZFE..SCP100 |
28011-23030 |
US $82.99 |
||
|
28100
|
28100
28100-23061 Starter Assy[10.2009 - 08.2010] 2SZFE..SCP100 12V 0.8KW |
28100-23061 |
US $749.84 |
||
|
28120
|
28120
28120-47120
Yoke Assy, Starter
[10.2009 -] 2SZFE..SCP100 |
28120-47120 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[10.2009 -] 2SZFE..SCP100 |
28140-70020 |
from US $20.09 |
||
|
28150
|
28150
28150-21020 Switch Assy, Magnet Starter[10.2009 -] 2SZFE..SCP100 |
28150-21020 |
from US $112.29 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[10.2009 -] 2SZFE..SCP100 |
28160-70021 |
US $131.04 |
||
|
9017908204
|
9017908204
90179-08204 Nut (For Front Wiper Arm Setting) |
90179-08204 |
from US $0.99 |
||
|
9161261050
|
9161261050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
US $1.51 |
