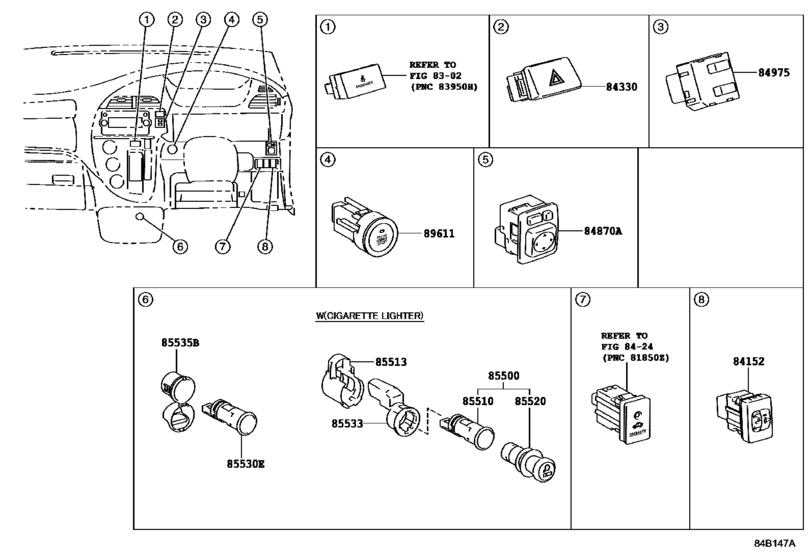

Switch & Relay & Computer ([10.2009 - ] INSTRUMENT PANEL (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-52130
Switch, Headlamp Leveling
[10.2009 -] SCP100 |
84152-52130 |
— | ||
| replacement | |||||
|
84152
|
84152
84152-52131 Switch, Headlamp Leveling[10.2009 -] SCP100 |
84152-52131 |
US $45.72 |
||
|
84330
|
84330
84332-52040 Switch Assy, Hazard Warning Signal[10.2009 - 08.2010] SCP100 |
84332-52040 |
US $41.35 |
||
|
84870A
|
84870A
84870-28020 Switch Assy, Outer Mirror[10.2009 -] SCP100 |
84870-28020 |
from US $73.25 |
||
|
84870A
|
84870A
84870-52030 Switch Assy, Outer Mirror[10.2009 -] SCP100 L PACKAGE |
84870-52030 |
US $78.62 |
||
|
84975
|
84975
84975-52181-B0 Switch, Trip[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
84975-52181-B0 |
US $57.22 |
||
|
85500
|
85500
85500-26040 Lighter Assy, Cigarette[10.2009 -] SCP100 CIGARETTE LIGHTER-W(DOP) |
85500-26040 |
US $30.72 |
||
|
85510
|
85510
85510-26040 Socket & Retainer Assy, Cigarlighter[10.2009 -] SCP100 CIGARETTE LIGHTER-W(DOP) |
85510-26040 |
US $14.85 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[10.2009 -] SCP100 CIGARETTE LIGHTER-W(DOP) |
85513-28010 |
from US $2.54 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[10.2009 -] SCP100 CIGARETTE LIGHTER-W(DOP) |
85520-28010 |
from US $16.77 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[10.2009 -] SCP100 |
85530-42010 |
from US $26.27 |
||
|
85533
|
85533
85533-30060 Lens, Cigarette Lighter Indicator[10.2009 -] SCP100 CIGARETTE LIGHTER-W(DOP) |
85533-30060 |
US $31.75 |
||
|
85535B
|
85535B
85535-52051 Cover, Power Outlet Socket, No.1[10.2009 -] SCP100 |
85535-52051 |
US $15.23 |
||
|
89611
|
89611
89611-52011 Switch, Push Start[10.2009 - 01.2010] SCP100 L PACKAGE |
89611-52011 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[10.2009 - 01.2010] SCP100 L PACKAGE |
89611-52015 |
from US $160.06 |
||
|
89611
|
89611
89611-52012 Switch, Push StartPUSH START [02.2010 -] SCP100 L PACKAGE |
89611-52012 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[02.2010 -] SCP100 L PACKAGE |
89611-52015 |
from US $160.06 |
||
