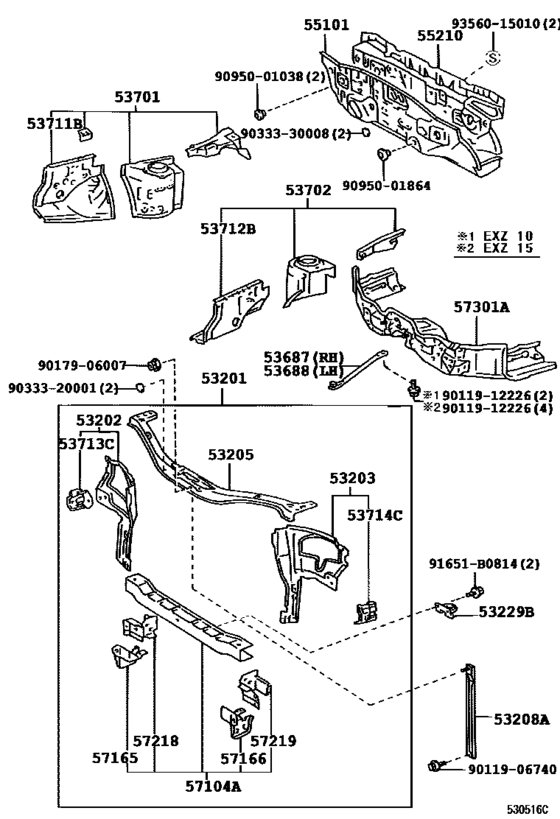

Front Fender Apron & Dash Panel ([05.1997 - ] (9705- )) Diagram Toyota RAUM
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- EXZ15
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- From
- 07.1999
- To
- 04.2003
- Seat Type
- PB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-46011 Support Sub-Assy, Radiator[06.1997 -] EXZ1# |
53201-46011 |
US $563.47 |
||
|
53202
|
53202
53202-46010 Support Sub-Assy, Radiator, Rh[05.1997 -] EXZ1# |
53202-46010 |
US $75.71 |
||
|
53203
|
53203
53203-46010 Support Sub-Assy, Radiator, Lh[05.1997 -] EXZ1# |
53203-46010 |
US $75.71 |
||
|
53205
|
53205
53205-46010 Support Sub-Assy, Radiator, Upper[05.1997 -] EXZ1# |
53205-46010 |
US $145.60 |
||
|
53208A
|
53208A
53208-46011 Support Sub-Assy, Hood Lock[05.1997 -] EXZ1# |
53208-46011 |
US $29.27 |
||
|
53229B
|
53229B
53229-16040 Bracket, Radiator Mounting, Lower No.2[05.1997 -] EXZ1# |
53229-16040 |
US $12.52 |
||
|
53687
|
53687
53687-10030 Brace, Front Suspension Lower To Steering Member, Rh[05.1997 -] EXZ1# |
53687-10030 |
US $29.27 |
||
|
53688
|
53688
53687-10030 Brace, Front Suspension Lower To Steering Member, Rh[05.1997 -] EXZ1# |
53687-10030 |
US $29.27 |
||
|
53701
|
53701
53701-46010 Apron Sub-Assy, Front Fender, Rh[05.1997 -] EXZ1# |
53701-46010 |
US $262.08 |
||
|
53702
|
53702
53702-46010 Apron Sub-Assy, Front Fender, Lh[05.1997 -] EXZ1# |
53702-46010 |
US $262.08 |
||
|
53711B
|
53711B
53707-46010 Apron, Front Fender, Front Rh[05.1997 -] EXZ1# |
53707-46010 |
US $82.99 |
||
|
53712B
|
53712B
53708-46010 Apron, Front Fender, Front Lh[05.1997 -] EXZ1# |
53708-46010 |
US $82.99 |
||
|
53713C
|
53713C
53713-46010 Extension, Front Fender Apron, Front Rh[05.1997 -] EXZ1# |
53713-46010 |
US $11.07 |
||
|
53714C
|
53714C
53714-46010 Extension, Front Fender Apron, Front Lh[05.1997 -] EXZ1# |
53714-46010 |
US $11.07 |
||
|
55101
|
55101
55101-46030 Panel Sub-Assy, Dash[07.1999 - 04.2002] EXZ1# |
55101-46030 |
US $468.83 |
||
|
55210
|
55210
55210-46020 Insulator Assy, Dash Panel[07.1999 -] EXZ1# |
55210-46020 |
US $334.88 |
||
|
57104A
|
57104A
57104-16071 Member Sub-Assy, Front Cross[05.1997 -] EXZ1# |
57104-16071 |
from US $193.19 |
||
|
57165
|
57165
57165-16020 Reinforcement, Front Crossmember, Lower Rh[05.1997 -] EXZ1# |
57165-16020 |
US $33.20 |
||
|
57166
|
57166
57166-16010 Reinforcement, Front Crossmember, No.2[05.1997 -] EXZ1# |
57166-16010 |
US $33.20 |
||
|
57218
|
57218
57218-16031 Gusset, Front Side Member, No.1[05.1997 -] EXZ1# |
57218-16031 |
US $25.77 |
||
|
57219
|
57219
57219-16031 Gusset, Front Side Member, No.2[05.1997 -] EXZ1# |
57219-16031 |
US $25.77 |
||
|
57301A
|
57301A
57301-46020 Member Sub-Assy, Steering Gear Box Support[08.1997 -] EXZ15 |
57301-46020 |
US $732.37 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
| replacement | |||||
|
91651B0814
|
91651B0814
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9011906740
|
9011906740
90119-06740 New Genuine Part |
90119-06740 |
US $1.22 |
||
|
9011912226
|
9011912226
90119-12226 New Genuine Part |
90119-12226 |
US $4.16 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001864
|
9095001864
90950-01864 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01864 |
US $1.60 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.28 |
||
