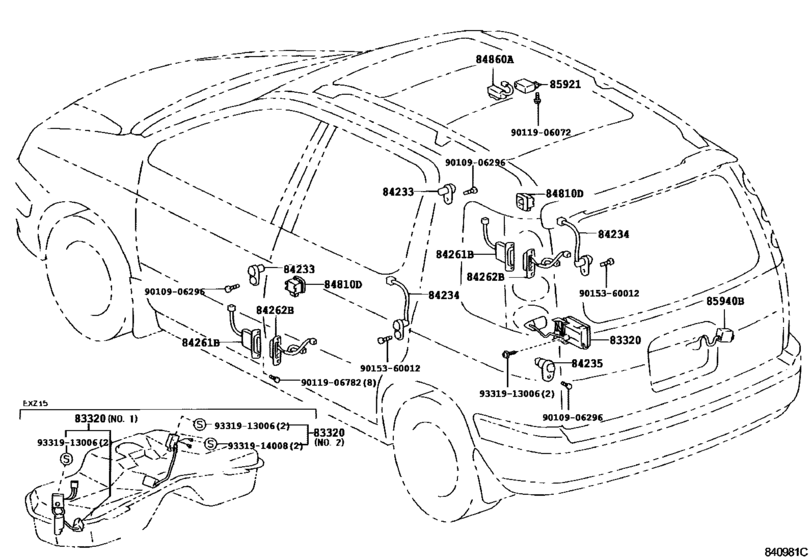

Switch & Relay & Computer ([05.1997 - ] FRONT,REAR DOOR & ROOF (9705- )) Diagram Toyota RAUM
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- EXZ15
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- From
- 07.1999
- To
- 04.2003
- Seat Type
- PB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80185 Gage Assy, Fuel Sender[08.1997 -] EXZ15 ＮＯ．２ |
83320-80185 |
US $58.39 |
||
|
83320
|
83320
83320-80186 Gage Assy, Fuel Sender[07.1999 -] EXZ15 ＮＯ．１ |
83320-80186 |
US $58.39 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[05.1999 -] EXZ1# |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-46010 Switch Assy, Courtesy Lamp (For Rear Door)[05.1997 -] EXZ1# |
84231-46010 |
US $14.41 |
||
| replacement | |||||
|
84234
|
84234
84231-28080 Switch, Courtesy Lamp (For Slide Door)[05.1997 -] EXZ1# |
84231-28080 |
from US $15.20 |
||
|
84235
|
84235
84231-60070 Switch, Courtesy Lamp[05.1999 -] EXZ1# |
84231-60070 |
from US $10.56 |
||
|
84261B
|
84261B
84261-46011 Junction, Slide Door Control,male[05.1997 -] EXZ1# |
84261-46011 |
US $72.36 |
||
|
84262B
|
84262B
84262-46020 Junction, Slide Door Control, Female[05.1997 -] EXZ1# 右側 |
84262-46020 |
US $69.01 |
||
|
84262B
|
84262B
84262-46030 Junction, Slide Door Control, Female[05.1997 -] EXZ1# 左側 |
84262-46030 |
US $69.01 |
||
|
84810D
|
84810D
84810-10020-B7 Switch Assy, Power Window Regulator, Rear[07.1999 -] EXZ1# DK.GRAY,TRIM1# |
84810-10020-B7 |
US $47.88 |
||
|
84860A
|
84860A
84860-46010-B1 Switch Assy, Sliding Roof[07.1999 - 04.2002] EXZ1# LT.GRAY,TRIM1# |
84860-46010-B1 |
US $53.73 |
||
|
85921
|
85921
85921-46010 Relay, Sliding Roof Control[05.1997 -] EXZ1# |
85921-46010 |
US $366.91 |
||
|
85940B
|
85940B
85940-46010 Relay Assy, Rear Wiper[05.1997 -] EXZ1# |
85940-46010 |
US $151.42 |
||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.44 |
||
|
9011906072
|
9011906072
90119-06072 Bolt |
90119-06072 |
US $1.75 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.84 |
||
|
9015360012
|
9015360012
90153-60012 New Genuine Part |
90153-60012 |
US $1.46 |
||
|
9331913006
|
9331913006
93319-13006 New Genuine Part |
93319-13006 |
US $0.44 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
