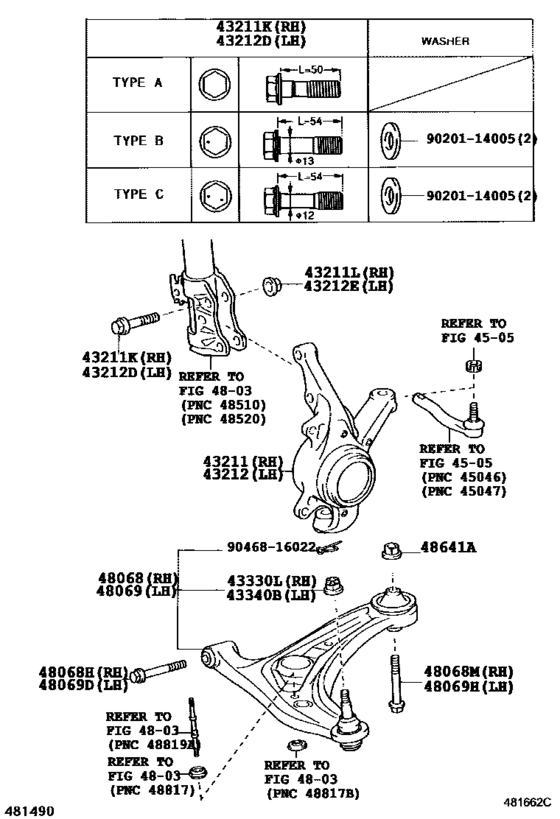

Front Axle Arm & Steering Knuckle ([04.2003 - ] (0304- )) Diagram Toyota RAUM
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- NCZ20
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 04.2003
- To
- 04.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-52020 Knuckle, Steering, Rh[04.2003 - 04.2011] NCZ20 |
43211-52020 |
US $268.80 |
||
|
43211K
|
43211K
90105-14140 Bolt (For Steering Knuckle Rh)[04.2003 - 04.2011] NCZ2# 外径＝１４ |
90105-14140 |
US $5.56 |
||
|
43211K
|
43211K
90105-14146 Bolt (For Steering Knuckle Rh)[04.2003 - 04.2011] NCZ2# 外径＝１３ |
90105-14146 |
US $6.99 |
||
|
43211K
|
43211K
90105-14147 Bolt (For Steering Knuckle Rh)[04.2003 - 04.2011] NCZ2# 外径＝１２ |
90105-14147 |
US $5.56 |
||
|
43211L
|
43211L
90179-14062 Nut (For Steering Knuckle Rh)[04.2003 - 04.2011] NCZ2# |
90179-14062 |
from US $1.21 |
||
|
43212
|
43212
43212-52020 Knuckle, Steering, Lh[04.2003 -] NCZ20 |
43212-52020 |
US $268.80 |
||
|
43212D
|
43212D
90105-14140 Bolt (For Steering Knuckle Rh)[04.2003 - 04.2011] NCZ2# 外径＝１４ |
90105-14140 |
US $5.56 |
||
|
43212D
|
43212D
90105-14146 Bolt (For Steering Knuckle Rh)[04.2003 - 04.2011] NCZ2# 外径＝１３ |
90105-14146 |
US $6.99 |
||
|
43212D
|
43212D
90105-14147 Bolt (For Steering Knuckle Rh)[04.2003 - 04.2011] NCZ2# 外径＝１２ |
90105-14147 |
US $5.56 |
||
|
43212E
|
43212E
90179-14062 Nut (For Steering Knuckle Rh)[04.2003 - 04.2011] NCZ2# |
90179-14062 |
from US $1.21 |
||
|
43330L
|
43330L
90171-12007 Nut, Castle (For Front Lower Ball Joint Setting)[04.2003 -] NCZ2# |
90171-12007 |
US $1.97 |
||
|
43340B
|
43340B
90171-12007 Nut, Castle (For Front Lower Ball Joint Setting)[04.2003 -] NCZ2# |
90171-12007 |
US $1.97 |
||
|
48068
|
48068
48068-59035 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[04.2003 - 05.2003] NCZ2# |
48068-59035 |
US $400.92 |
||
|
48068
|
48068
48068-59055 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[05.2003 -] NCZ2# |
48068-59055 |
from US $397.80 |
||
|
48068H
|
48068H
90119-12338 Bolt(For Front Suspension Lower Arm No.1 Rh)[04.2003 - 05.2003] NCZ2# |
90119-12338 |
from US $2.93 |
||
|
48068H
|
48068H
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[05.2003 - 04.2011] NCZ2# |
90119-14086 |
from US $3.37 |
||
|
48068M
|
48068M
90119-12337 Bolt(For Front Suspension Lower Arm No.2 Rh)[04.2003 -] NCZ2# |
90119-12337 |
from US $3.32 |
||
|
48069
|
48069
48069-59035 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[04.2003 - 05.2003] NCZ2# |
48069-59035 |
US $400.92 |
||
|
48069
|
48069
48069-59055 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[05.2003 -] NCZ2# |
48069-59055 |
from US $397.80 |
||
|
48069D
|
48069D
90119-12338 Bolt(For Front Suspension Lower Arm No.1 Rh)[04.2003 - 05.2003] NCZ2# |
90119-12338 |
from US $2.93 |
||
|
48069D
|
48069D
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[05.2003 - 04.2011] NCZ2# |
90119-14086 |
from US $3.37 |
||
|
48069H
|
48069H
90119-12337 Bolt(For Front Suspension Lower Arm No.2 Rh)[04.2003 -] NCZ2# |
90119-12337 |
from US $3.32 |
||
|
48641A
|
48641A
90178-12009 Nut(For Suspension Lower Arm Shaft)[04.2003 -] NCZ2# |
90178-12009 |
from US $1.11 |
||
|
9020114005
|
9020114005
90201-14005 Washer, Plate |
90201-14005 |
US $4.30 |
||
|
9046816022
|
9046816022
90468-16022 CLIP |
90468-16022 |
US $1.61 |
