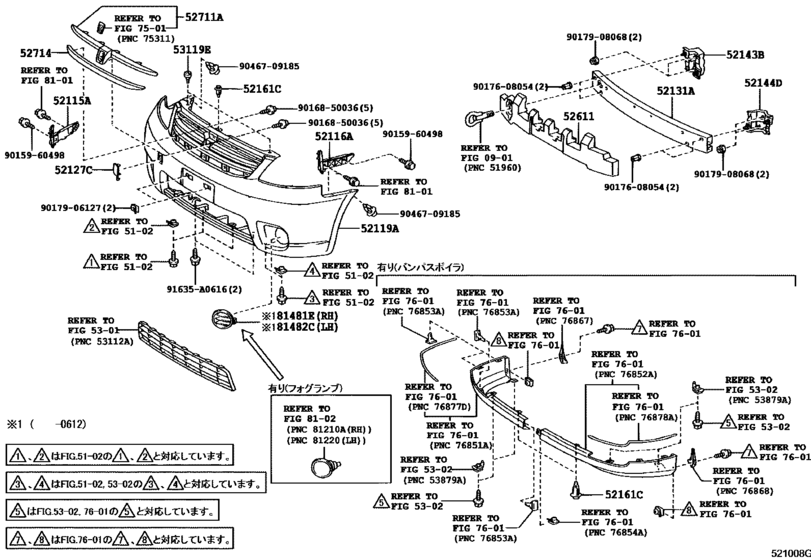

Front Bumper & Bumper Stay ([04.2003 - ] (0304- )) Diagram Toyota RAUM
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- NCZ20
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 04.2003
- To
- 04.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52115A
|
52115A
52115-46030 Support, Front Bumper Side, Rh[04.2003 - 04.2011] NCZ2# |
52115-46030 |
US $27.72 |
||
|
52116A
|
52116A
52116-46030 Support, Front Bumper Side, Lh[04.2003 -] NCZ2# |
52116-46030 |
US $27.72 |
||
|
52119A
|
52119A
52119-46090-A0 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# SUPER WHITE 2,040 |
52119-46090-A0 |
US $1,078.90 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46902 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# SUPER WHITE 2,040 |
52119-46902 |
from US $401.06 |
||
|
52119A
|
52119A
52119-46090-A1 Cover, Front Bumper[04.2004 - 08.2005] NCZ2# Ｃ ＰＡＣＫＡＧＥ＆ＮＥＯ ＥＤＩＴＩＯＮ ＊（Ａ）,WHITE PEARL CS.,073 |
52119-46090-A1 |
US $1,080.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46902 Cover, Front Bumper[04.2004 - 08.2005] NCZ2# Ｃ ＰＡＣＫＡＧＥ＆ＮＥＯ ＥＤＩＴＩＯＮ ＊（Ａ）,WHITE PEARL CS.,073 |
52119-46902 |
from US $401.06 |
||
|
52119A
|
52119A
52119-46090-A2 Cover, Front Bumper[12.2006 - 04.2011] NCZ2# WHITE PEARL CS.,070 |
52119-46090-A2 |
US $898.35 |
||
|
52119A
|
52119A
52119-46090-B0 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# SILVER ME.GR.,1D9 |
52119-46090-B0 |
US $1,078.90 |
||
|
52119A
|
52119A
52119-46090-B1 Cover, Front Bumper[12.2006 - 04.2011] NCZ2# SILVER ME.,1F7 |
52119-46090-B1 |
US $1,025.54 |
||
|
52119A
|
52119A
52119-46090-C0 Cover, Front BumperFRONT BUMPER [12.2008 - 04.2011] NCZ2# BLACK MC.,209 |
52119-46090-C0 |
US $898.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46902 Cover, Front Bumper[12.2008 - 04.2011] NCZ2# BLACK MC.,209 |
52119-46902 |
from US $401.06 |
||
|
52119A
|
52119A
52119-46090-D1 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# SUPER RED 5,3P0 |
52119-46090-D1 |
US $898.35 |
||
|
52119A
|
52119A
52119-46090-E0 Cover, Front Bumper[12.2006 - 01.2011] NCZ2# PALE ORANGE MICA METALLIC,4S3 |
52119-46090-E0 |
US $898.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46902 Cover, Front Bumper[12.2006 - 01.2011] NCZ2# PALE ORANGE MICA METALLIC,4S3 |
52119-46902 |
from US $401.06 |
||
|
52119A
|
52119A
52119-46090-F0 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# CREAM PM.,594 |
52119-46090-F0 |
US $1,078.90 |
||
|
52119A
|
52119A
52119-46090-G0 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# LT.GREEN M.M.,6T4 |
52119-46090-G0 |
US $1,025.54 |
||
|
52119A
|
52119A
52119-46090-J0 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# DK.BLUE MC.,8N8 |
52119-46090-J0 |
US $898.35 |
||
|
52119A
|
52119A
52119-46090-J1 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# LT.BLUE M.M.,8R2 |
52119-46090-J1 |
US $1,025.54 |
||
|
52119A
|
52119A
52119-46110-A0 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,SUPER WHITE 2,040 |
52119-46110-A0 |
US $1,078.90 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46903 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,SUPER WHITE 2,040 |
52119-46903 |
US $613.70 |
||
|
52119A
|
52119A
52119-46110-A2 Cover, Front Bumper[12.2006 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,WHITE PEARL CS.,070 |
52119-46110-A2 |
US $898.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46903 Cover, Front Bumper[12.2006 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,WHITE PEARL CS.,070 |
52119-46903 |
US $613.70 |
||
|
52119A
|
52119A
52119-46110-B0 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,SILVER ME.GR.,1D9 |
52119-46110-B0 |
US $898.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46903 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,SILVER ME.GR.,1D9 |
52119-46903 |
US $613.70 |
||
|
52119A
|
52119A
52119-46110-B1 Cover, Front Bumper[12.2006 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,SILVER ME.,1F7 |
52119-46110-B1 |
US $898.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46903 Cover, Front Bumper[12.2006 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,SILVER ME.,1F7 |
52119-46903 |
US $613.70 |
||
|
52119A
|
52119A
52119-46110-D1 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,SUPER RED 5,3P0 |
52119-46110-D1 |
US $898.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46903 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,SUPER RED 5,3P0 |
52119-46903 |
US $613.70 |
||
|
52119A
|
52119A
52119-46110-E0 Cover, Front Bumper[12.2006 - 01.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,PALE ORANGE MICA METALLIC,4S3 |
52119-46110-E0 |
US $898.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46903 Cover, Front Bumper[12.2006 - 01.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,PALE ORANGE MICA METALLIC,4S3 |
52119-46903 |
US $613.70 |
||
|
52119A
|
52119A
52119-46110-F0 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,CREAM PM.,594 |
52119-46110-F0 |
US $1,078.90 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46903 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,CREAM PM.,594 |
52119-46903 |
US $613.70 |
||
|
52119A
|
52119A
52119-46110-G0 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,LT.GREEN M.M.,6T4 |
52119-46110-G0 |
US $898.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46903 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,LT.GREEN M.M.,6T4 |
52119-46903 |
US $613.70 |
||
|
52119A
|
52119A
52119-46110-J0 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,DK.BLUE MC.,8N8 |
52119-46110-J0 |
US $898.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46903 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,DK.BLUE MC.,8N8 |
52119-46903 |
US $613.70 |
||
|
52119A
|
52119A
52119-46110-J1 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,LT.BLUE M.M.,8R2 |
52119-46110-J1 |
US $898.35 |
||
| replacement | |||||
|
52119A
|
52119A
52119-46903 Cover, Front Bumper[04.2003 - 04.2011] NCZ2# Ｓ ＰＡＣＫＡＧＥ,LT.BLUE M.M.,8R2 |
52119-46903 |
US $613.70 |
||
|
52127C
|
52127C
52127-46010-A0 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# SUPER WHITE 2,040 |
52127-46010-A0 |
US $9.61 |
||
| replacement | |||||
|
52127C
|
52127C
52127-46901 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# SUPER WHITE 2,040 |
52127-46901 |
US $10.57 |
||
|
52127C
|
52127C
52127-46010-A1 Cover, Front Bumper Hole[04.2004 - 08.2005] NCZ2# Ｃ ＰＡＣＫＡＧＥ＆ＮＥＯ ＥＤＩＴＩＯＮ ＊（Ａ）,WHITE PEARL CS.,073 |
52127-46010-A1 |
US $9.90 |
||
| replacement | |||||
|
52127C
|
52127C
52127-46901 Cover, Front Bumper Hole[04.2004 - 08.2005] NCZ2# Ｃ ＰＡＣＫＡＧＥ＆ＮＥＯ ＥＤＩＴＩＯＮ ＊（Ａ）,WHITE PEARL CS.,073 |
52127-46901 |
US $10.57 |
||
|
52127C
|
52127C
52127-46010-A2 Cover, Front Bumper Hole[12.2006 - 04.2011] NCZ2# WHITE PEARL CS.,070 |
52127-46010-A2 |
US $8.15 |
||
| replacement | |||||
|
52127C
|
52127C
52127-46901 Cover, Front Bumper Hole[12.2006 - 04.2011] NCZ2# WHITE PEARL CS.,070 |
52127-46901 |
US $10.57 |
||
|
52127C
|
52127C
52127-46010-B0 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# SILVER ME.GR.,1D9 |
52127-46010-B0 |
US $9.61 |
||
|
52127C
|
52127C
52127-46010-B1 Cover, Front Bumper Hole[12.2006 - 04.2011] NCZ2# SILVER ME.,1F7 |
52127-46010-B1 |
US $9.36 |
||
|
52127C
|
52127C
52127-46010-C0 Cover, Front Bumper HoleFRONT BUMPER HOLE [12.2008 - 04.2011] NCZ2# BLACK MC.,209 |
52127-46010-C0 |
US $8.15 |
||
| replacement | |||||
|
52127C
|
52127C
52127-46901 Cover, Front Bumper Hole[12.2008 - 04.2011] NCZ2# BLACK MC.,209 |
52127-46901 |
US $10.57 |
||
|
52127C
|
52127C
52127-46010-D1 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# SUPER RED 5,3P0 |
52127-46010-D1 |
US $8.15 |
||
| replacement | |||||
|
52127C
|
52127C
52127-46901 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# SUPER RED 5,3P0 |
52127-46901 |
US $10.57 |
||
|
52127C
|
52127C
52127-46010-E0 Cover, Front Bumper Hole[12.2006 - 01.2011] NCZ2# PALE ORANGE MICA METALLIC,4S3 |
52127-46010-E0 |
US $8.15 |
||
| replacement | |||||
|
52127C
|
52127C
52127-46901 Cover, Front Bumper Hole[12.2006 - 01.2011] NCZ2# PALE ORANGE MICA METALLIC,4S3 |
52127-46901 |
US $10.57 |
||
|
52127C
|
52127C
52127-46010-F0 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# CREAM PM.,594 |
52127-46010-F0 |
US $9.61 |
||
| replacement | |||||
|
52127C
|
52127C
52127-46901 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# CREAM PM.,594 |
52127-46901 |
US $10.57 |
||
|
52127C
|
52127C
52127-46010-G0 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# LT.GREEN M.M.,6T4 |
52127-46010-G0 |
US $9.36 |
||
|
52127C
|
52127C
52127-46010-J0 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# DK.BLUE MC.,8N8 |
52127-46010-J0 |
US $8.15 |
||
| replacement | |||||
|
52127C
|
52127C
52127-46901 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# DK.BLUE MC.,8N8 |
52127-46901 |
US $10.57 |
||
|
52127C
|
52127C
52127-46010-J1 Cover, Front Bumper Hole[04.2003 - 04.2011] NCZ2# LT.BLUE M.M.,8R2 |
52127-46010-J1 |
US $8.15 |
||
|
52131A
|
52131A
52131-46020 Reinforcement, Front Bumper[04.2003 - 04.2011] NCZ2# |
52131-46020 |
US $220.32 |
||
|
52143B
|
52143B
52143-46010 Bracket, Front Bumper Side[04.2003 - 04.2011] NCZ2# |
52143-46010 |
US $35.60 |
||
|
52144D
|
52144D
52144-46020 Bracket, Front Bumper Side, Lh[04.2003 - 04.2011] NCZ2# |
52144-46020 |
US $35.60 |
||
|
52161C
|
52161C
52161-16010 Clip[04.2003 -] NCZ2# |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[04.2003 -] NCZ2# |
52161-0K040 |
from US $1.50 |
||
|
52161C
|
52161C
52161-02020 Clip[04.2003 -] NCZ2# |
52161-02020 |
US $5.27 |
||
|
52611
|
52611
52611-46010 Absorber, Front Bumper Energy[04.2003 -] NCZ2# |
52611-46010 |
US $139.40 |
||
|
52711A
|
52711A
52711-46010 Garnish, Front Bumper[04.2003 - 12.2006] NCZ2# |
52711-46010 |
from US $106.92 |
||
|
52711A
|
52711A
52711-46020 Garnish, Front Bumper[12.2006 - 04.2011] NCZ2# |
52711-46020 |
US $105.60 |
||
|
52714
|
52714
52714-46010 Plug, Front Bumper Moulding, Lh[04.2003 - 04.2011] NCZ2# |
52714-46010 |
from US $76.78 |
||
|
53119E
|
53119E
53119-12150 Cover, Front Bumper Side(For Gllile Guard)[04.2003 -] NCZ2# |
53119-12150 |
from US $7.68 |
||
|
81481E
|
81481E
81481-52040 Cover, Fog Lamp, Rh[04.2003 - 12.2006] NCZ2#; NCZ2# Ｃ ＰＡＣＫＡＧＥ＆フロントフォグランプ−有り |
81481-52040 |
from US $23.33 |
||
|
81482C
|
81482C
81482-52020 Cover, Fog Lamp, Lh[04.2003 - 12.2006] NCZ2#; NCZ2# Ｃ ＰＡＣＫＡＧＥ＆フロントフォグランプ−有り |
81482-52020 |
US $23.33 |
||
|
91635A0616
|
91635A0616
91635-A0616 BOLT WWASHER |
91635-A0616 |
from US $0.76 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.68 |
||
|
9016850036
|
9016850036
90168-50036 SCREW TAPPING |
90168-50036 |
US $2.33 |
||
|
9017608054
|
9017608054
90176-08054 NUT CAP |
90176-08054 |
US $2.51 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.80 |
||
|
9046709185
|
9046709185
90467-09185 CLIPS |
90467-09185 |
from US $0.90 |
||
