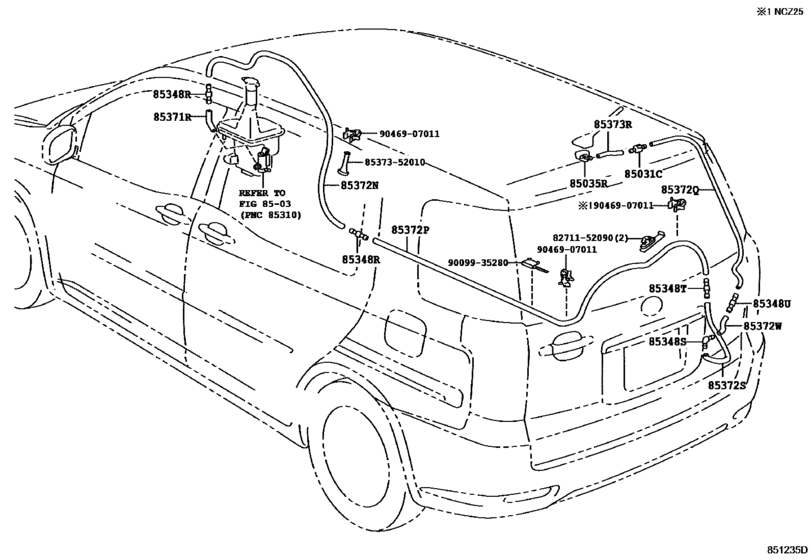

Rear Washer ([04.2003 - 10.2009] (0304-0910)) Diagram Toyota RAUM
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- NCZ20
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 04.2003
- To
- 04.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031C
|
85031C
85321-26020 Valve Sub-Assy, Washer[04.2003 -] NCZ2# |
85321-26020 |
from US $1.64 |
||
|
85035R
|
85035R
85391-46010
Nozzle Sub-Assy, Rear Washer
[04.2003 -] NCZ2# |
85391-46010 |
— | ||
|
85348R
|
85348R
85349-89122 Valve Sub-Assy, Washer[04.2003 - 10.2009] NCZ2# |
85349-89122 |
from US $1.25 |
||
|
85348S
|
85348S
85355-20200 Joint, Windshield Washer Hose, No.1[04.2003 -] NCZ2# |
85355-20200 |
from US $0.98 |
||
|
85348T
|
85348T
85349-89122 Valve Sub-Assy, Washer[04.2003 -] NCZ2# |
85349-89122 |
from US $1.25 |
||
|
85348U
|
85348U
85349-89122 Valve Sub-Assy, Washer[04.2003 -] NCZ2# |
85349-89122 |
from US $1.25 |
||
|
85371R
|
85371R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.2003 - 04.2011] NCZ2# ＊Ｈ，Ｌ＝５０ |
90099-33080 |
from US $5.38 |
||
|
85372N
|
85372N
90446-06006 Hose, Windshield Washer (From Motor To Joint)[04.2003 -] NCZ20 ＊Ｈ，Ｌ＝１１００ |
90446-06006 |
from US $6.36 |
||
|
85372P
|
85372P
90099-62024
Hose, Rear Washer (From Joint To Joint), No.2
[04.2003 - 10.2009] NCZ2# 長さ＝３３００ |
90099-62024 |
— | ||
| replacement | |||||
|
85372P
|
85372P
90099-62052
Hose, Rear Washer (From Joint To Joint), No.6
[04.2003 - 10.2009] NCZ2# 長さ＝３３００ |
90099-62052 |
— | ||
|
85372P
|
85372P
90446-06292
Hose, Rear Washer (From Motor To Joint)
[10.2009 -] NCZ2# |
90446-06292 |
— | ||
|
85372Q
|
85372Q
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.2003 - 10.2009] NCZ2# ＊Ｈ，Ｌ＝９６０ |
90099-33080 |
from US $5.38 |
||
|
85372Q
|
85372Q
90446-07001 Hose, Windshield Washer (From Motor To Joint)[10.2009 -] NCZ2# ＊Ｈ，Ｌ＝９６０ |
90446-07001 |
from US $1.75 |
||
|
85372S
|
85372S
90099-33299 Joint, Windshield Washer Elbow, No.2[04.2003 -] NCZ2# ＊Ｈ，Ｌ＝７２０ |
90099-33299 |
from US $4.37 |
||
|
85372W
|
85372W
90099-33299 Joint, Windshield Washer Elbow, No.2[04.2003 -] NCZ2# ＊Ｈ，Ｌ＝５０ |
90099-33299 |
from US $4.37 |
||
|
85373R
|
85373R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.2003 -] NCZ2# ＊Ｈ，Ｌ＝１５０ |
90099-33080 |
from US $5.38 |
||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.90 |
||
|
8537352010
|
8537352010
85373-52010 Hose, Windshield Washer (from Joint To Nozzle) |
85373-52010 |
US $1.92 |
||
|
9009935280
|
9009935280
90099-35280
New Genuine Part
|
90099-35280 |
— | ||
|
9046907011
|
9046907011
90469-07011 Clamp No.1 (For Windseield Washer) |
90469-07011 |
from US $1.97 |
||
