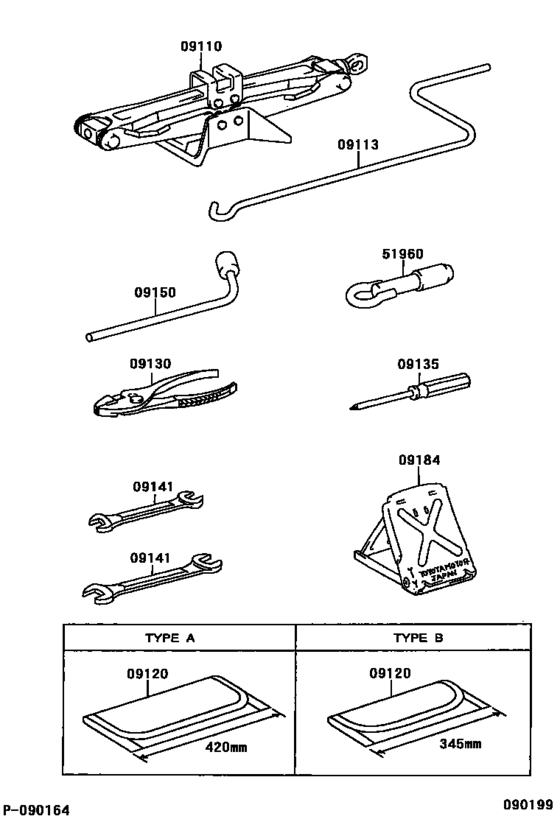

Standard Tool ([04.2003 - ] (0304- )) Diagram Toyota RAUM
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- NCZ20
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 04.2003
- To
- 04.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09111-47010 Jack Assy[03.2004 - 08.2010] NCZ2# |
09111-47010 |
US $77.17 |
||
| replacement | |||||
|
09110
|
09110
09111-52060 Jack Assy[03.2004 - 08.2010] NCZ2# |
09111-52060 |
US $90.20 |
||
|
09110
|
09110
09111-52040 Jack Assy[04.2003 - 08.2003] NCZ2# |
09111-52040 |
US $80.08 |
||
| replacement | |||||
|
09110
|
09110
09111-52060 Jack Assy[04.2003 - 08.2003] NCZ2# |
09111-52060 |
US $90.20 |
||
|
09110
|
09110
09111-52041 Jack Assy[08.2003 - 02.2004] NCZ2# |
09111-52041 |
US $77.17 |
||
| replacement | |||||
|
09110
|
09110
09111-52060 Jack Assy[08.2003 - 02.2004] NCZ2# |
09111-52060 |
US $90.20 |
||
|
09110
|
09110
09111-52060 Jack Assy[09.2010 -] NCZ2# |
09111-52060 |
US $90.20 |
||
|
09113
|
09113
09113-52010 Handle, Jack[04.2003 - 08.2003] NCZ2# |
09113-52010 |
US $8.06 |
||
|
09113
|
09113
09113-52040 Handle, Jack[08.2003 -] NCZ2# |
09113-52040 |
US $6.55 |
||
| replacement | |||||
|
09113
|
09113
09113-20050 Handle, Jack[08.2003 -] NCZ2# |
09113-20050 |
US $8.06 |
||
|
09120
|
09120
09120-16030 Tool Bag (Type A) BLACK, No Toyota Label[04.2003 -] NCZ2# |
09120-16030 |
US $8.06 |
||
|
09130
|
09130
99913-11500 Pliers (China)No Toyota stamp [04.2003 -] NCZ2# |
99913-11500 |
from US $7.17 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [04.2003 -] NCZ2# |
99915-10700 |
from US $8.24 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [04.2003 -] NCZ2# |
90089-99009 |
from US $2.46 |
||
|
09141
|
09141
99914-10810 Spanner (China)No Toyota stamp [04.2003 -] NCZ2# ８ Ｘ １０ |
99914-10810 |
from US $4.30 |
||
| replacement | |||||
|
09141
|
09141
09141-0K030 Spanner (ATC) (Thailand)8x10 [04.2003 -] NCZ2# ８ Ｘ １０ |
09141-0K030 |
from US $6.99 |
||
|
09141
|
09141
99914-11214 Spanner (China)No Toyota stamp [04.2003 -] NCZ2# １２ Ｘ １４ |
99914-11214 |
from US $6.45 |
||
| replacement | |||||
|
09141
|
09141
09141-0K040 Spanner (Thailand)[04.2003 -] NCZ2# １２ Ｘ １４ |
09141-0K040 |
from US $10.48 |
||
|
09150
|
09150
09150-40010 Wrench, Hub Nut Box[04.2003 - 04.2011] NCZ2# |
09150-40010 |
from US $19.32 |
||
| replacement | |||||
|
09150
|
09150
09033-1C100 WRENCH[04.2003 - 04.2011] NCZ2# |
09033-1C100 |
US $17.47 |
||
|
09184
|
09184
09184-00010 Stopper, Wheel[04.2003 -] NCZ2# |
09184-00010 |
US $13.80 |
||
|
51960
|
51960
51961-46010 Hook Assy, Front[04.2003 - 04.2011] NCZ2# |
51961-46010 |
US $27.66 |
||
