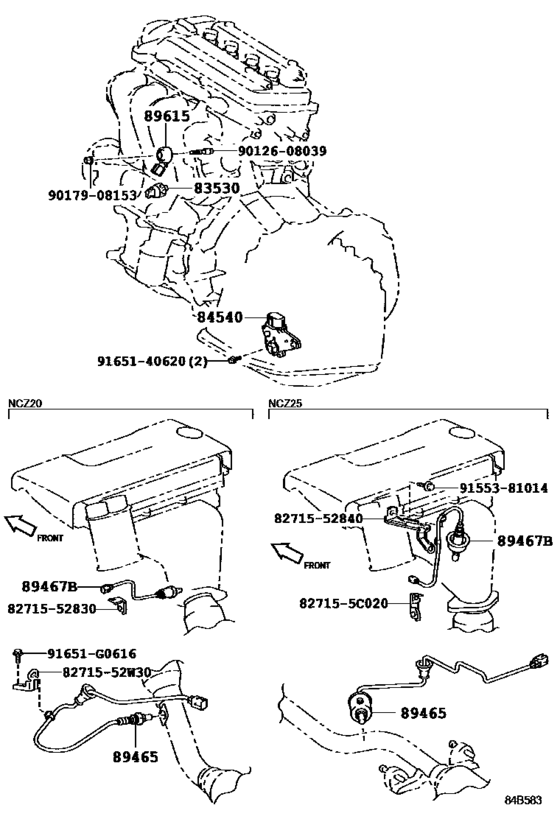

Switch & Relay & Computer ([08.2010 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (1008- )) Diagram Toyota RAUM
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- NCZ20
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 04.2003
- To
- 04.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[04.2003 -] NCZ2# ＤＥＮＳＯ |
83530-28020 |
from US $24.41 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2003 -] NCZ2# ＤＥＮＳＯ |
83530-60020 |
from US $24.04 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2003 -] NCZ2# ＹＡＺＡＫＩ |
83530-60020 |
from US $24.04 |
||
|
84540
|
84540
84540-46010 Switch Assy, Neutral Start[04.2003 - 04.2011] NCZ2# |
84540-46010 |
from US $112.98 |
||
|
89465
|
89465
89465-20810 Sensor, Oxygen[04.2003 - 08.2010] NCZ20 |
89465-20810 |
US $166.40 |
||
|
89465
|
89465
89465-46020 Sensor, Oxygen[08.2010 -] NCZ20 |
89465-46020 |
US $116.48 |
||
|
89467B
|
89467B
89467-12180 Sensor, Air Fuel Ratio[08.2010 -] NCZ20 |
89467-12180 |
from US $191.72 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[08.2010 -] NCZ2# |
89615-20090 |
from US $39.82 |
||
|
89615
|
89615
89615-52030 Sensor, Knock Control[04.2003 - 09.2003] NCZ2# ＤＥＮＳＯ |
89615-52030 |
US $220.15 |
||
|
89615
|
89615
89615-52040 Sensor, Knock Control[04.2003 - 09.2003] NCZ2# ＴＯＹＯＴＡ |
89615-52040 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-52030 Sensor, Knock Control[04.2003 - 09.2003] NCZ2# ＴＯＹＯＴＡ |
89615-52030 |
US $220.15 |
||
|
91651G0616
|
91651G0616
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
827155C020
|
827155C020
82715-5C020 Bracket,wiring Harness Clamp |
82715-5C020 |
US $4.51 |
||
|
8271552W30
|
8271552W30
82715-52W30 Bracket,wiring Harness Clamp |
82715-52W30 |
US $4.22 |
||
|
8271552830
|
8271552830
82715-52830 Bracket,wiring Harness Clamp |
82715-52830 |
US $4.37 |
||
|
8271552840
|
8271552840
82715-52840 Bracket,wiring Harness Clamp |
82715-52840 |
US $8.01 |
||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $4.30 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
