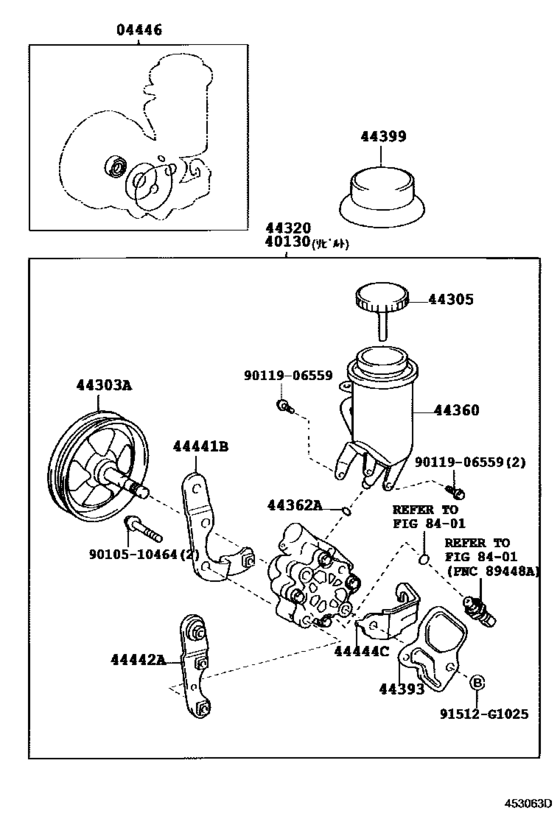

Vane Pump & Reservoir (Power Steering) ([04.2003 - ] (0304- )) Diagram Toyota RAUM
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- NCZ20
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 04.2003
- To
- 04.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-32050 Gasket Kit, Power Steering Pump[04.2003 - 04.2011] NCZ2# |
04446-32050 |
from US $17.38 |
||
|
40130
|
40130
40130-52050 Pump Assy,vane Rebuilt[04.2003 - 04.2011] NCZ20 ＴＯＹＯＤＡ ＫＯＫＩ |
40130-52050 |
US $687.23 |
||
| replacement | |||||
|
40130
|
40130
44310-52050 Pump Assy, Vane[04.2003 - 04.2011] NCZ20 ＴＯＹＯＤＡ ＫＯＫＩ |
44310-52050 |
from US $825.06 |
||
|
44303A
|
44303A
44303-52020 Shaft Sub-Assy, W/pulley[04.2003 -] NCZ2# |
44303-52020 |
US $74.26 |
||
|
44305
|
44305
44305-50010
Cap Sub-Assy, Vane Pump Oil Reservoir
[04.2003 - 02.2008] NCZ2# |
44305-50010 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-50020 Cap Sub-Assy, Vane Pump Oil Reservoir[04.2003 - 02.2008] NCZ2# |
44305-50020 |
from US $28.37 |
||
|
44305
|
44305
44305-50020 Cap Sub-Assy, Vane Pump Oil Reservoir[03.2008 -] NCZ2# |
44305-50020 |
from US $28.37 |
||
|
44320
|
44320
44310-52050 Pump Assy, Vane[04.2003 - 04.2011] NCZ20 |
44310-52050 |
from US $825.06 |
||
|
44360
|
44360
44306-52020 Reservoir Assy, Vane Pump Oil[04.2003 -] NCZ2# |
44306-52020 |
US $163.20 |
||
|
44362A
|
44362A
90301-11020 Ring, O, No.1(For Vane Pump Housing)[04.2003 -] NCZ2# |
90301-11020 |
from US $2.18 |
||
|
44393
|
44393
44393-52010 Insulator, Power Steering Pump Heat[04.2003 - 06.2007] NCZ2# |
44393-52010 |
US $6.70 |
||
|
44393
|
44393
44393-52040 Insulator, Power Steering Pump Heat[07.2007 -] NCZ2# |
44393-52040 |
US $4.51 |
||
|
44399
|
44399
44399-52010 Cover, Vane Pump Oil Reservoir[04.2003 -] NCZ2# |
44399-52010 |
from US $3.63 |
||
|
44441B
|
44441B
44441-52010 Bracket, Pump, Front[04.2003 -] NCZ2# |
44441-52010 |
US $15.05 |
||
|
44442A
|
44442A
44442-52020 Bracket, Vane Pump, Rear[04.2003 -] NCZ2# |
44442-52020 |
US $15.23 |
||
|
44444C
|
44444C
44444-52010 Stay, Vane Pump, Rear[04.2003 -] NCZ20 |
44444-52010 |
US $5.78 |
||
|
91512G1025
|
91512G1025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.96 |
||
|
9010510464
|
9010510464
90105-10464 New Genuine Part |
90105-10464 |
US $3.76 |
||
|
9011906559
|
9011906559
90119-06559 Bolt (For Stator Shaft) |
90119-06559 |
US $1.79 |
||
