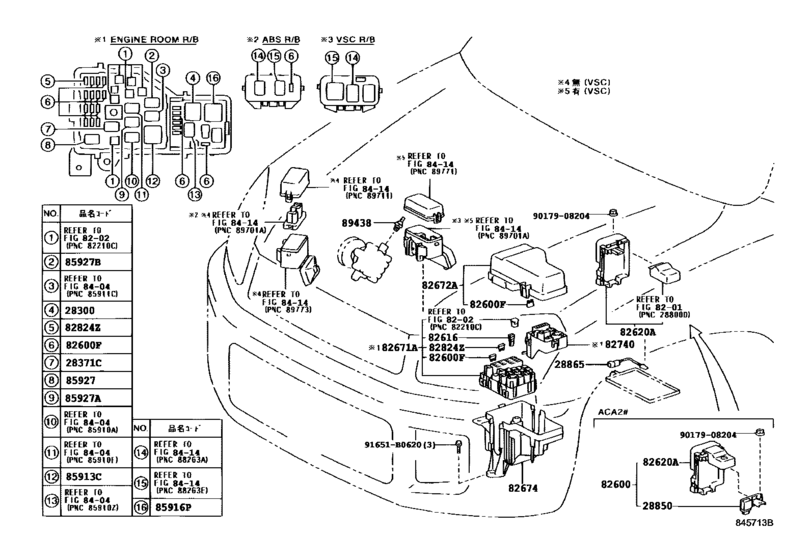

Switch & Relay & Computer ([07.2003 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0307- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACA20
- grade
- WIDE
- ENGINE
- 1AZFSE
- TRANSMISSION
- ATM
- Model
- RAV4 J/L
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4 J/L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[05.2000 - 07.2003] 1AZFSE,1ZZFE..ACA2#,ZCA2# |
28300-10020 |
from US $55.30 |
||
|
28371C
|
28371C
90987-02012 Relay, Ignition, No.1[05.2000 - 07.2003] 1AZFSE,1ZZFE..ACA2#,ZCA2# |
90987-02012 |
from US $26.99 |
||
|
28371C
|
28371C
90987-02027 Relay[07.2003 -] 1AZFSE,1ZZFE..ACA2#,ZCA2# |
90987-02027 |
from US $44.54 |
||
|
28850
|
28850
28850-28030
Sensor Assy, Battery Current
[07.2003 - 11.2005] 1AZFSE..ACA2# |
28850-28030 |
— | ||
|
28865
|
28865
28865-28030 Sensor, Battery Thermometer[07.2003 - 11.2005] 1AZFSE..ACA2# |
28865-28030 |
US $75.71 |
||
|
82600
|
82600
82610-42060 Block Assy, Fuse[07.2003 -] ACA2# |
82610-42060 |
US $144.14 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# ５Ａ，ミニ ヒューズ |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# １０Ａ，ミニ ヒューズ |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[05.2000 - 07.2003] ACA2#,ZCA2# |
82616-20010 |
from US $2.36 |
||
|
82620A
|
82620A
82620-42030 Block Assy, Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# |
82620-42030 |
US $46.21 |
||
|
82620A
|
82620A
82620-42050 Block Assy, Fusible Link[07.2003 -] ACA2# |
82620-42050 |
US $40.91 |
||
| replacement | |||||
|
82620A
|
82620A
82610-42060 Block Assy, Fuse[07.2003 -] ACA2# |
82610-42060 |
US $144.14 |
||
|
82671A
|
82671A
82721-42010 Block, Junction[05.2000 - 07.2003] ACA2# |
82721-42010 |
US $375.65 |
||
|
82671A
|
82671A
82721-42030 Block, Junction[07.2003 -] ACA2# |
82721-42030 |
US $378.56 |
||
|
82672A
|
82672A
82672-42060 Cover, Junction Block[05.2000 - 07.2003] ACA2# |
82672-42060 |
US $48.34 |
||
|
82672A
|
82672A
82672-42110 Cover, Junction Block[07.2003 -] ACA2#..WIDE; ACA2#..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
82672-42110 |
US $56.20 |
||
|
82674
|
82674
82674-42010 Cover, Junction Block Lower[05.2000 - 07.2003] ACA2#,ZCA2# |
82674-42010 |
US $81.54 |
||
|
82740
|
82740
82740-42030 Block Assy, Engine Room Relay[05.2000 - 07.2003] ACA2#,ZCA2# |
82740-42030 |
US $43.68 |
||
|
82740
|
82740
82740-42040 Block Assy, Engine Room Relay[07.2003 -] ACA2#..WIDE; ACA2#,ZCA2#..X ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
82740-42040 |
US $55.76 |
||
|
82824Z
|
82824Z
82824-20140 Connector, Wiring Harness[07.2003 -] ACA2#,ZCA2# |
82824-20140 |
US $3.32 |
||
|
85913C
|
85913C
90987-04006 Relay Assy (For Heater Blower Motor)[05.2000 - 07.2003] ACA2#,ZCA2# |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
85913C
|
85913C
90987-04010 Relay Assy (For Heater Blower Motor)[05.2000 - 07.2003] ACA2#,ZCA2# |
90987-04010 |
from US $42.71 |
||
|
85913C
|
85913C
90987-04010 Relay Assy (For Heater Blower Motor)[10.2003 -] ACA2#,ZCA2# |
90987-04010 |
from US $42.71 |
||
|
85916P
|
85916P
90987-02016
Relay Assy, Starter
[07.2003 - 01.2004] ACA2#,ZCA2# |
90987-02016 |
— | ||
| replacement | |||||
|
85916P
|
85916P
90987-02025 Relay[07.2003 - 01.2004] ACA2#,ZCA2# |
90987-02025 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02025 Relay[01.2004 -] ACA2#,ZCA2# |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[05.2000 - 07.2003] ACA2#,ZCA2# |
90987-02012 |
from US $26.99 |
||
|
85927
|
85927
90987-02027 Relay[07.2003 -] ACA2#,ZCA2# |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[05.2000 - 07.2003] ACA2#,ZCA2# |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02012 Relay, Ignition, No.1[05.2000 - 07.2003] ACA2#,ZCA2# |
90987-02012 |
from US $26.99 |
||
|
85927B
|
85927B
90987-02027 Relay[07.2003 -] ACA2#,ZCA2# |
90987-02027 |
from US $44.54 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[05.2000 - 07.2003] ACA2#,ZCA2# |
89438-33010 |
from US $30.23 |
||
|
91651B0620
|
91651B0620
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.12 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
