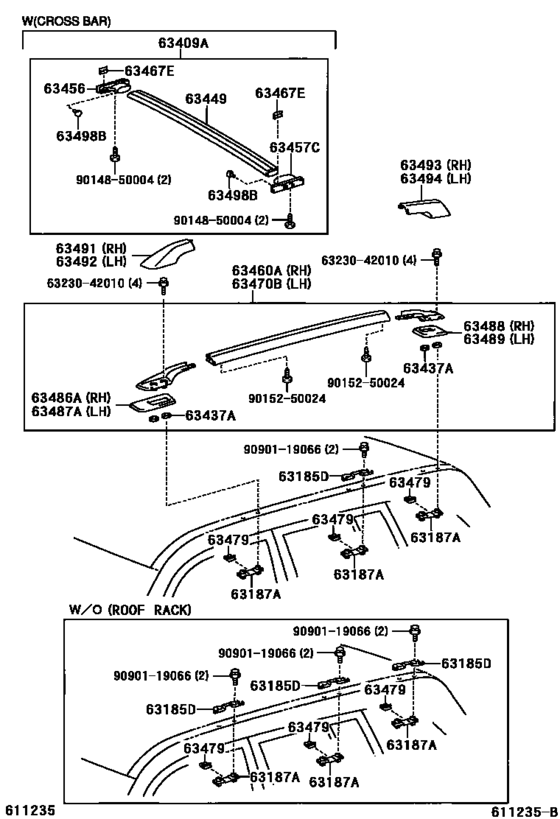

Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACA23
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- RAV4
- From
- 07.2003
- To
- 11.2005
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63185D
|
63185D
63185-42020 Bracket, Roof Rack, Front Rh[07.2003 -] ACA2# W(ROOF RACK) |
63185-42020 |
from US $2.42 |
||
|
63187A
|
63187A
63187-42010 Bracket, Roof Rack, Rear[07.2003 -] ACA2# |
63187-42010 |
from US $3.14 |
||
|
63409A
|
63409A
63409-42011 Support Sub-Assy, Roof Rack, CenterROOF RACK, CENTER [07.2003 - 11.2003] ACA2# |
63409-42011 |
US $266.45 |
||
| replacement | |||||
|
63409A
|
63409A
63409-42012 Support Sub-Assy, Roof Rack, CenterROOF RACK, CENTER [07.2003 - 11.2003] ACA2# |
63409-42012 |
US $267.90 |
||
|
63409A
|
63409A
63409-42012 Support Sub-Assy, Roof Rack, CenterROOF RACK, CENTER [11.2003 -] ACA2# |
63409-42012 |
US $267.90 |
||
|
63437A
|
63437A
63437-42010 Seal, Roof Carrier, No.2[07.2003 -] ACA2# |
63437-42010 |
US $1.31 |
||
|
63449
|
63449
63449-42010 Bar, Roof Carrier SideROOF CARRIER SIDE [07.2003 -] ACA2# |
63449-42010 |
US $161.62 |
||
|
63456
|
63456
63456-42011
Joint, Roof Rack Bar
[07.2003 -] ACA2# |
63456-42011 |
— | ||
|
63457C
|
63457C
63457-42011 Joint, Roof Rack Bar, No.2ROOF RACK BAR, NO.2 [07.2003 -] ACA2# |
63457-42011 |
US $29.27 |
||
|
63460A
|
63460A
63460-42013 Rack Assy, Roof, Rh[07.2003 -] ACA2# |
63460-42013 |
US $474.66 |
||
|
63467E
|
63467E
63467-42011 Plate, Roof Rack, RearROOF RACK, REAR [07.2003 -] ACA2# |
63467-42011 |
US $3.79 |
||
|
63470B
|
63470B
63470-42013 Rack Assy, Roof, Lh[07.2003 -] ACA2# |
63470-42013 |
US $474.66 |
||
|
63479
|
63479
63479-42010 Retainer, Roof Inner Rack[07.2003 -] ACA2# |
63479-42010 |
from US $1.76 |
||
|
63486A
|
63486A
63486-42010 Cushion, Roof Rack Leg, Front Rh[07.2003 -] ACA2# |
63486-42010 |
US $14.41 |
||
|
63487A
|
63487A
63487-42010
Cushion, Roof Rack Leg, Front Lh
[07.2003 -] ACA2# |
63487-42010 |
— | ||
|
63488
|
63488
63488-42010
Cushion, Roof Rack Leg, Rear Rh
[07.2003 -] ACA2# |
63488-42010 |
— | ||
|
63489
|
63489
63489-42010 Cushion, Roof Rack Leg, Rear Lh[07.2003 -] ACA2# |
63489-42010 |
US $10.19 |
||
|
63491
|
63491
63491-42012 Cover, Roof Rack Leg, Front Rh[07.2003 -] ACA2# |
63491-42012 |
from US $45.77 |
||
|
63492
|
63492
63492-42012 Cover, Roof Rack Leg, Front Lh[07.2003 -] ACA2# |
63492-42012 |
from US $48.75 |
||
|
63493
|
63493
63493-42012 Cover, Roof Rack Leg, Rear Rh[07.2003 -] ACA2# |
63493-42012 |
from US $39.53 |
||
|
63494
|
63494
63494-42012 Cover, Roof Rack Leg, Rear Lh[07.2003 -] ACA2# |
63494-42012 |
US $40.54 |
||
|
63498B
|
63498B
63498-42011 Cap, Roof CarrierROOF CARRIER [07.2003 - 11.2003] ACA2# |
63498-42011 |
from US $6.46 |
||
|
63498B
|
63498B
63498-42030 Cap, Roof CarrierROOF CARRIER [11.2003 -] ACA2# |
63498-42030 |
US $8.15 |
||
|
6323042010
|
6323042010
63230-42010 Bolt Assy, Removable Roof |
63230-42010 |
from US $5.40 |
||
|
9014850004
|
9014850004
90148-50004 New Genuine Part |
90148-50004 |
US $1.16 |
||
|
9015250024
|
9015250024
90152-50024 New Genuine Part |
90152-50024 |
US $0.87 |
||
|
9090119066
|
9090119066
90901-19066 BOLT WWASHER |
90901-19066 |
from US $1.05 |
||
