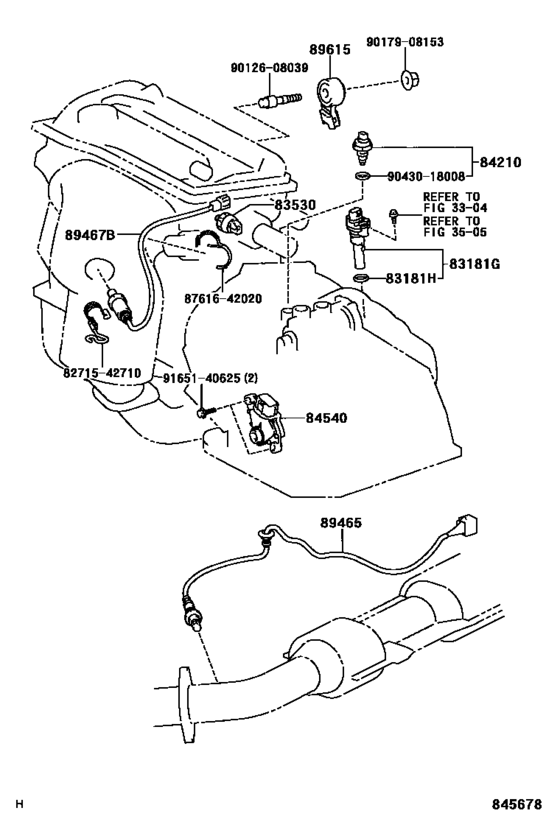

Switch & Relay & Computer ([07.2003 - ] ENGINE & TRANSMISSION (0307- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACA23
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- RAV4
- From
- 07.2003
- To
- 11.2005
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12050 Sensor, Speedometer[07.2003 - 11.2005] ACA23..MTM |
83181-12050 |
from US $167.73 |
||
|
83181H
|
83181H
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[07.2003 -] ACA23..MTM |
96711-24030 |
from US $2.32 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[07.2003 -] ACA2# DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [07.2003 -] ACA2# DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[07.2003 -] ACA2# DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [07.2003 -] ACA2# YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[07.2003 - 11.2005] ACA2#..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[07.2003 - 11.2005] ACA2#..MTM |
84210-52050 |
from US $20.67 |
||
|
89465
|
89465
89465-42130
Sensor, Oxygen
[07.2003 -] ACA2# |
89465-42130 |
— | ||
|
89467B
|
89467B
89467-42040 Sensor, Air Fuel Ratio[07.2003 -] ACA2# |
89467-42040 |
US $209.66 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[07.2003 -] ACA2# |
89615-20090 |
from US $36.02 |
||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
8761642020
|
8761642020
87616-42020 Clamp, Cooling Unit Case |
87616-42020 |
US $4.16 |
||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $3.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
