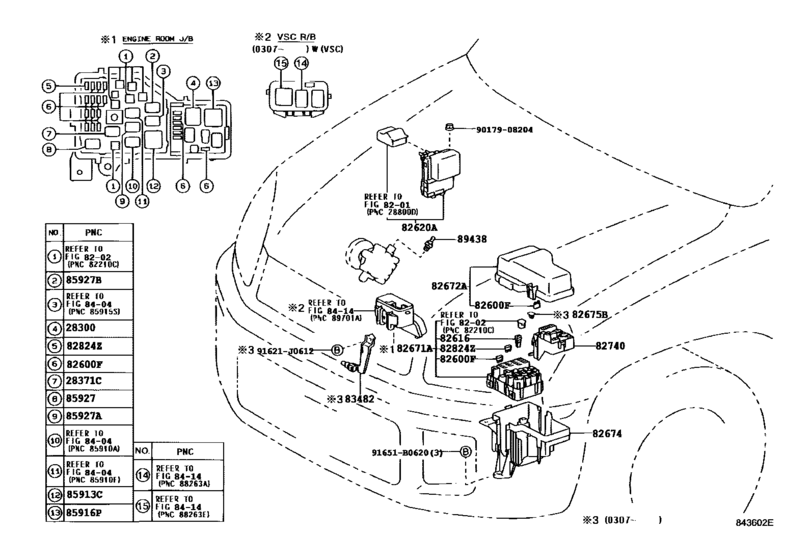

Switch & Relay & Computer ([08.2000 - ] ENGINE ROOM (0008- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACA23
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- RAV4
- From
- 07.2003
- To
- 11.2005
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[07.2003 -] 2AZFE..ACA2# |
28300-10020 |
from US $57.15 |
||
|
28371C
|
28371C
90987-02027 Relay[07.2003 -] 2AZFE..ACA2# |
90987-02027 |
from US $44.54 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[07.2003 -] ACA2# 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[07.2003 -] ACA2# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[07.2003 -] ACA2# 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[07.2003 -] ACA2# 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[07.2003 -] ACA2# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[07.2003 -] ACA2# 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[07.2003 -] ACA2# 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[07.2003 -] ACA2# |
82616-20010 |
from US $2.38 |
||
|
82620A
|
82620A
82620-42040 Block Assy, Fusible LinkFUSIBLE LINK [07.2003 -] ACA2# |
82620-42040 |
from US $36.40 |
||
|
82671A
|
82671A
82721-42040
Block, Junction
[07.2003 -] ACA2# |
82721-42040 |
— | ||
|
82672A
|
82672A
82672-42140
Cover, Junction Block
[07.2003 -] ACA2# |
82672-42140 |
— | ||
|
82674
|
82674
82674-42010 Cover, Junction Block Lower[07.2003 -] ACA2# |
82674-42010 |
US $81.54 |
||
|
82675B
|
82675B
82675-44010 Terminal, Junction[07.2003 -] ACA2# |
82675-44010 |
US $2.48 |
||
|
82740
|
82740
82740-42030 Block Assy, Engine Room Relay[07.2003 -] ACA2# |
82740-42030 |
US $43.68 |
||
|
82824Z
|
82824Z
82824-20140 Connector, Wiring Harness[07.2003 -] ACA2# |
82824-20140 |
US $3.32 |
||
|
83482
|
83482
88790-42050
Thermistor, Cooler (Ambient Temp. Sensor)
[07.2003 -] ACA2# W(MANUAL AIR CONDITIONER) |
88790-42050 |
— | ||
|
83482
|
83482
88790-42060
Sensor, Outer Ambient Temperature
[07.2003 -] ACA2# W/O(AIR CONDITIONER) |
88790-42060 |
— | ||
|
85913C
|
85913C
90987-04006 Relay Assy (For Heater Blower Motor)[07.2003 - 10.2003] ACA2# |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
85913C
|
85913C
90987-04010 Relay Assy (For Heater Blower Motor)[07.2003 - 10.2003] ACA2# |
90987-04010 |
US $42.71 |
||
|
85913C
|
85913C
90987-04010 Relay Assy (For Heater Blower Motor)[10.2003 -] ACA2# |
90987-04010 |
US $42.71 |
||
|
85916P
|
85916P
90987-02016
Relay Assy, Starter
[07.2003 - 12.2003] ACA2#..USA |
90987-02016 |
— | ||
| replacement | |||||
|
85916P
|
85916P
90987-02025 Relay[07.2003 - 12.2003] ACA2#..USA |
90987-02025 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02025 Relay[12.2003 -] ACA2#..USA |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02027 Relay[07.2003 -] ACA2# |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[07.2003 -] ACA2# |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02027 Relay[07.2003 -] ACA2# PART NUMBER LABEL=90987-02027 |
90987-02027 |
from US $44.54 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[07.2003 - 11.2005] ACA2# |
89438-33010 |
from US $32.12 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91651B0620
|
91651B0620
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.12 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
