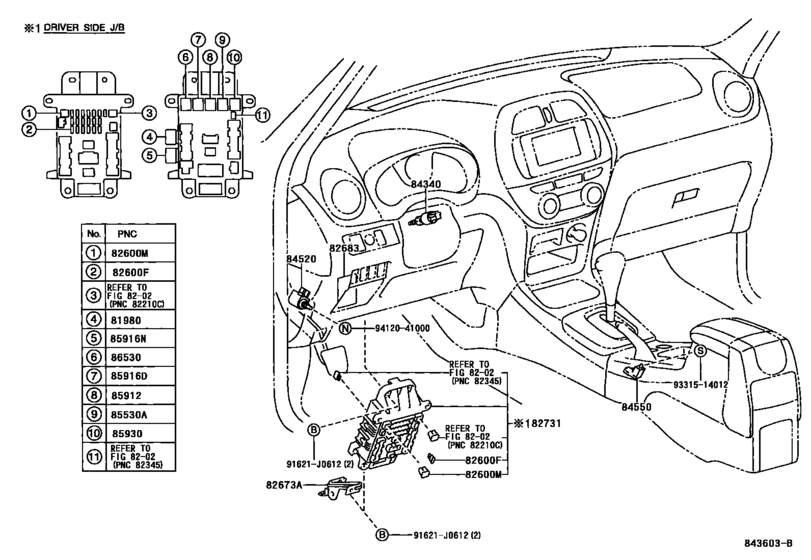

Switch & Relay & Computer ([08.2000 - ] COWL (0008- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACA23
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- RAV4
- From
- 07.2003
- To
- 11.2005
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[07.2003 -] ACA2# |
81980-50030 |
from US $58.40 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[07.2003 -] ACA2# 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[07.2003 -] ACA2# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[07.2003 -] ACA2# 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[07.2003 -] ACA2# 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[07.2003 -] ACA2# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[07.2003 -] ACA2# 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[07.2003 -] ACA2# 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[07.2003 -] ACA2# 30A |
90982-10001 |
from US $3.84 |
||
|
82673A
|
82673A
82673-42060 Bracket, Junction BlockJUNCTION BLOCK [07.2003 -] ACA2# |
82673-42060 |
US $9.32 |
||
|
82683
|
82683
82683-42100 Plate, Fuse Block CautionFUSE BLOCK CAUTION [07.2003 -] ACA2# |
82683-42100 |
US $3.79 |
||
|
82731
|
82731
82731-42010 Block, Driver Side Junction[07.2003 -] ACA2# |
82731-42010 |
US $371.28 |
||
|
84340
|
84340
84340-42020 Switch Assy, Stop Lamp[07.2003 -] ACA2# |
84340-42020 |
from US $21.28 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[07.2003 - 11.2005] ACA2#..MTM |
84520-42010 |
from US $34.35 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[07.2003 - 11.2005] ACA2# |
84550-33010 |
from US $18.39 |
||
|
85530A
|
85530A
90987-02020 Relay, Ignition, No.1[07.2003 - 11.2003] ACA2# |
90987-02020 |
from US $50.84 |
||
|
85530A
|
85530A
90987-02027 Relay[11.2003 -] ACA2# |
90987-02027 |
from US $44.54 |
||
|
85912
|
85912
90987-02020 Relay, Ignition, No.1[07.2003 - 10.2003] ACA2# |
90987-02020 |
from US $50.84 |
||
|
85912
|
85912
90987-02027 Relay[10.2003 -] ACA2# |
90987-02027 |
from US $44.54 |
||
|
85916D
|
85916D
90987-02020 Relay, Ignition, No.1[07.2003 - 11.2003] ACA2# |
90987-02020 |
from US $50.84 |
||
|
85916D
|
85916D
90987-02027 Relay[11.2003 -] ACA2# |
90987-02027 |
from US $44.54 |
||
|
85916N
|
85916N
90987-02020 Relay, Ignition, No.1[07.2003 - 12.2003] ACA2# |
90987-02020 |
from US $50.84 |
||
|
85916N
|
85916N
90987-02027 Relay[12.2003 -] ACA2# |
90987-02027 |
from US $44.54 |
||
|
85930
|
85930
90987-02027 Relay[07.2003 -] ACA2# |
90987-02027 |
from US $44.54 |
||
|
86530
|
86530
90987-02020 Relay, Ignition, No.1[07.2003 - 11.2003] ACA2# |
90987-02020 |
from US $50.84 |
||
|
86530
|
86530
90987-02027 Relay[11.2003 -] ACA2# |
90987-02027 |
from US $44.54 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
