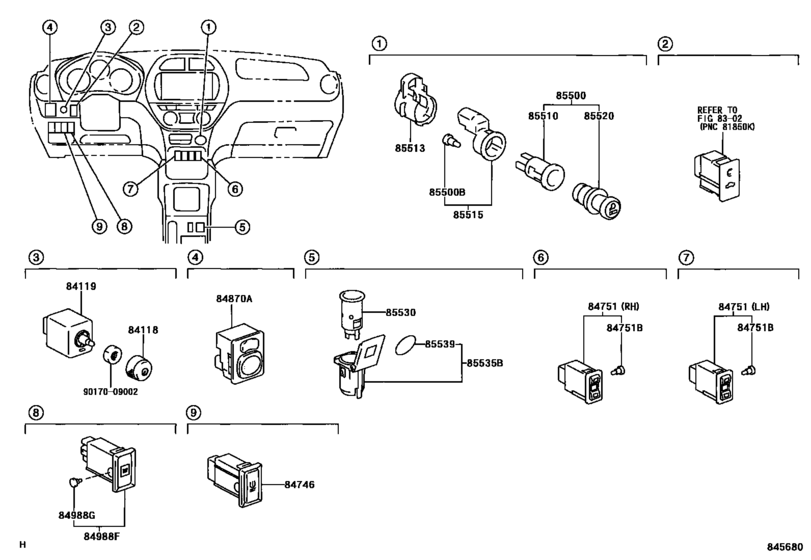

Switch & Relay & Computer ([07.2003 - ] INSTRUMENT PANEL (0307- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACA23
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- RAV4
- From
- 07.2003
- To
- 11.2005
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84118
|
84118
84118-44010 Knob, Light Control RheostatLIGHT CONTROL RHEOSTAT [07.2003 -] ACA2# |
84118-44010 |
US $4.80 |
||
|
84119
|
84119
84119-20250
Rheostat, Light Control
[07.2003 -] ACA2# |
84119-20250 |
— | ||
|
84746
|
84746
84746-42020 Switch, Tire Pressure WarningTIRE PRESSURE WARNING [07.2003 - 04.2004] ACA2# |
84746-42020 |
US $49.50 |
||
| replacement | |||||
|
84746
|
84746
84746-42010 Switch, Tire Pressure Warning[07.2003 - 04.2004] ACA2# |
84746-42010 |
US $49.65 |
||
|
84746
|
84746
84746-42021 Switch, Tire Pressure WarningTIRE PRESSURE WARNING [04.2004 -] ACA2# |
84746-42021 |
US $49.65 |
||
| replacement | |||||
|
84746
|
84746
84746-42010 Switch, Tire Pressure Warning[04.2004 -] ACA2# |
84746-42010 |
US $49.65 |
||
|
84751
|
84751
84751-42020 Switch, Seat HeaterSEAT HEATER [07.2003 -] ACA2# LH |
84751-42020 |
US $61.44 |
||
| replacement | |||||
|
84751
|
84751
84751-48040 Switch, Seat HeaterSEAT HEATER [07.2003 -] ACA2# LH |
84751-48040 |
US $61.30 |
||
|
84751
|
84751
84751-42030 Switch, Seat HeaterSEAT HEATER [07.2003 -] ACA2# RH |
84751-42030 |
US $61.44 |
||
|
84751B
|
84751B
84999-10330
Bulb, Seat Heater Switch
[07.2003 -] ACA2# 14.5V 0.87W |
84999-10330 |
— | ||
| replacement | |||||
|
84751B
|
84751B
84999-10190 Bulb, Hazard Warning Signal Switch[07.2003 -] ACA2# 14.5V 0.87W |
84999-10190 |
US $5.42 |
||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[07.2003 -] ACA2# |
84870-34010 |
from US $57.15 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[07.2003 -] ACA2# |
85500-12240 |
from US $28.68 |
||
|
85500B
|
85500B
90010-01030 Bulb, Key Cylinder Lamp[07.2003 -] ACA2# 14V1.4W,W(ORANGE CAP) |
90010-01030 |
from US $2.81 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[07.2003 -] ACA2# |
85510-16040 |
US $24.47 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[07.2003 -] ACA2# |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-22040 Stay, Cigarette Lighter Bezel[07.2003 -] ACA2# |
85515-22040 |
US $14.56 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[07.2003 -] ACA2# |
85520-28010 |
from US $17.90 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[07.2003 -] ACA2# |
85530-42010 |
from US $26.60 |
||
|
85535B
|
85535B
85535-42030-B1 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [07.2003 - 11.2005] ACA2# DK.GRAY,TRIM1# |
85535-42030-B1 |
US $8.30 |
||
| replacement | |||||
|
85535B
|
85535B
85535-42030-C0 Cover, Power Outlet Socket, No.1[07.2003 - 11.2005] ACA2# DK.GRAY,TRIM1# |
85535-42030-C0 |
from US $7.82 |
||
|
85535B
|
85535B
85535-42030-E0 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [07.2003 - 11.2005] ACA2# FAWN,TRIM4# |
85535-42030-E0 |
US $8.30 |
||
| replacement | |||||
|
85535B
|
85535B
85535-42030-C0 Cover, Power Outlet Socket, No.1[07.2003 - 11.2005] ACA2# FAWN,TRIM4# |
85535-42030-C0 |
from US $7.82 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[07.2003 - 11.2005] ACA2# |
85539-60020 |
US $1.41 |
||
|
9017009002
|
9017009002
90170-09002 Nut, Tunnel Mode Select Switch |
90170-09002 |
US $1.05 |
||
