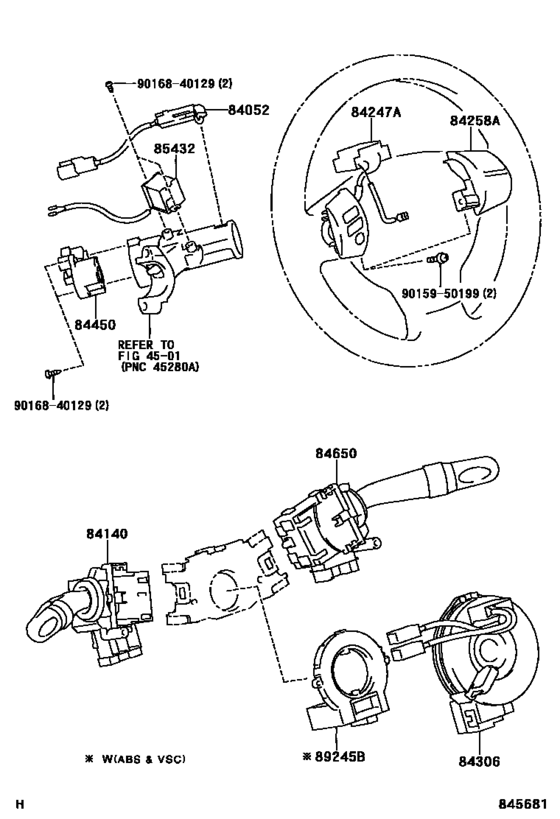

Switch & Relay & Computer ([07.2003 - ] IGNITION & COMBINATION SWITCH (0307- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACA23
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- RAV4
- From
- 07.2003
- To
- 11.2005
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-60020 Switch Assy, Un-Lock Warning[07.2003 - 11.2005] ACA2# |
84052-60020 |
US $16.02 |
||
| replacement | |||||
|
84052
|
84052
84052-22050 Switch Assy, Un-Lock Warning[07.2003 - 11.2005] ACA2# |
84052-22050 |
from US $14.26 |
||
|
84140
|
84140
84140-42010 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [07.2003 -] ACA2# W(FRONT FOG LAMP SW) |
84140-42010 |
from US $132.23 |
||
|
84140
|
84140
84140-52020 Switch Assy, Headlamp Dimmer[07.2003 -] ACA2# |
84140-52020 |
US $52.40 |
||
|
84247A
|
84247A
84247-42010-C0 Switch, Steering Pad, LhSTEERING PAD, LH [07.2003 - 11.2005] ACA2# BLACK,TRIM1#,4# |
84247-42010-C0 |
US $110.66 |
||
| replacement | |||||
|
84247A
|
84247A
84247-52030
Switch, Steering Pad, Lh
[07.2003 - 11.2005] ACA2# BLACK,TRIM1#,4# |
84247-52030 |
— | ||
|
84247A
|
84247A
84247-42020-C0 Switch, Steering Pad, LhSTEERING PAD, LH [07.2003 - 11.2005] ACA2# W(CRUISE CONTROL),BLACK,TRIM1#,4# |
84247-42020-C0 |
US $110.66 |
||
| replacement | |||||
|
84247A
|
84247A
84247-12020-B0
Switch, Steering Pad, Lh
[07.2003 - 11.2005] ACA2# W(CRUISE CONTROL),BLACK,TRIM1#,4# |
84247-12020-B0 |
— | ||
|
84258A
|
84258A
84258-68020-C0 Cover, Steering Pad, RhSTEERING PAD, RH [07.2003 - 11.2005] ACA2# BLACK,TRIM1#,4# |
84258-68020-C0 |
US $26.79 |
||
| replacement | |||||
|
84258A
|
84258A
84258-68020-B2 Cover, Steering Pad, Rh[07.2003 - 11.2005] ACA2# BLACK,TRIM1#,4# |
84258-68020-B2 |
US $26.79 |
||
|
84306
|
84306
84306-42010 Cable Sub-Assy, SpiralSPIRAL [07.2003 -] ACA2# |
84306-42010 |
US $282.46 |
||
|
84450
|
84450
84450-52010 Switch Assy, Ignition Or Starter[07.2003 - 11.2005] ACA2# |
84450-52010 |
from US $76.96 |
||
|
84650
|
84650
84652-1A830 Switch Assy, Windshield WiperWINDSHIELD WIPER [07.2003 - 09.2004] ACA2# |
84652-1A830 |
US $157.25 |
||
| replacement | |||||
|
84650
|
84650
84652-42120 Switch Assy, Windshield WiperWINDSHIELD WIPER [07.2003 - 09.2004] ACA2# |
84652-42120 |
US $157.25 |
||
|
84650
|
84650
84652-42120 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2004 -] ACA2# |
84652-42120 |
US $157.25 |
||
|
89245B
|
89245B
89245-52010 Sensor, Steering[07.2003 - 11.2005] ACA2# |
89245-52010 |
US $260.62 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
