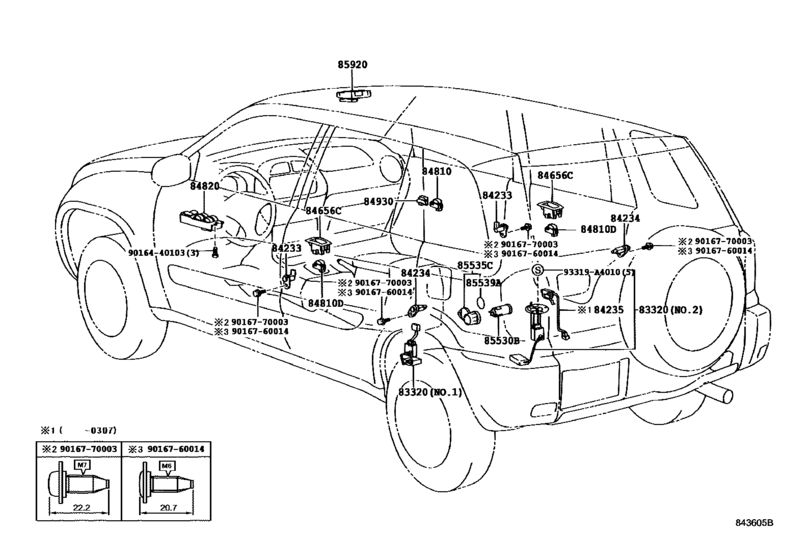

Switch & Relay & Computer ([08.2000 - ] DOOR,ROOF & FLOOR (0008- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2003 - 2005
- Sales region
- Europe
- Frame
- ACA23
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- RAV4
- From
- 07.2003
- To
- 11.2005
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-42041 Gage Assy, Fuel Sender[07.2003 - 11.2005] ACA2# NO.1 |
83320-42041 |
from US $56.78 |
||
|
83320
|
83320
83320-49195 Gage Assy, Fuel Sender[07.2003 - 11.2005] ACA2# NO.2 |
83320-49195 |
from US $65.82 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[07.2003 -] ACA2# |
84231-53010 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[07.2003 -] ACA2# |
84231-60070 |
from US $10.56 |
||
|
84656C
|
84656C
84656-32020-B4 Bezel, Switch[07.2003 - 11.2005] ACA2# DK.GRAY,TRIM1# |
84656-32020-B4 |
US $19.80 |
||
| replacement | |||||
|
84656C
|
84656C
84656-32020-C0 Bezel, Switch (Black)[07.2003 - 11.2005] ACA2# DK.GRAY,TRIM1# |
84656-32020-C0 |
US $22.34 |
||
|
84656C
|
84656C
84656-32020-E2 Bezel, Switch No.2[07.2003 - 11.2005] ACA2# FAWN,TRIM4# |
84656-32020-E2 |
US $19.80 |
||
| replacement | |||||
|
84656C
|
84656C
84656-32020-C0 Bezel, Switch (Black)[07.2003 - 11.2005] ACA2# FAWN,TRIM4# |
84656-32020-C0 |
US $22.34 |
||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[07.2003 - 08.2004] ACA2# |
84810-12080 |
from US $31.35 |
||
|
84810D
|
84810D
84810-12080 Switch Assy, Power Window Regulator[07.2003 - 11.2005] ACA2# |
84810-12080 |
from US $31.35 |
||
|
84820
|
84820
84820-42170 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [07.2003 - 08.2004] ACA2# |
84820-42170 |
US $266.45 |
||
| replacement | |||||
|
84820
|
84820
84820-42171
Master Switch Assy, Power Window Regulator
[07.2003 - 08.2004] ACA2# |
84820-42171 |
— | ||
|
84820
|
84820
84820-42171
Master Switch Assy, Power Window Regulator
[09.2004 -] ACA2# |
84820-42171 |
— | ||
|
84930
|
84930
84930-33080 Switch Assy, Door ControlDOOR CONTROL [07.2003 - 08.2004] ACA2# |
84930-33080 |
US $53.87 |
||
|
84930
|
84930
84930-33100 Switch Assy, Door ControlDOOR CONTROL [09.2004 -] ACA2# |
84930-33100 |
US $41.35 |
||
|
85530B
|
85530B
85530-42010 Socket Assy, Power Outlet, No.1[07.2003 -] ACA2# |
85530-42010 |
from US $26.60 |
||
|
85535C
|
85535C
85535-34030-B4 Cover, Power Outlet Socket, RearPOWER OUTLET SOCKET, REAR [07.2003 - 11.2005] ACA2# DK.GRAY,TRIM1# |
85535-34030-B4 |
US $11.65 |
||
| replacement | |||||
|
85535C
|
85535C
85535-34030-C0 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [07.2003 - 11.2005] ACA2# DK.GRAY,TRIM1# |
85535-34030-C0 |
US $12.67 |
||
|
85535C
|
85535C
85535-34030-E0 Cover, Power Outlet Socket, RearPOWER OUTLET SOCKET, REAR [07.2003 - 11.2005] ACA2# FAWN,TRIM4# |
85535-34030-E0 |
US $11.65 |
||
| replacement | |||||
|
85535C
|
85535C
85535-34030-C0 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [07.2003 - 11.2005] ACA2# FAWN,TRIM4# |
85535-34030-C0 |
US $12.67 |
||
|
85539A
|
85539A
85539-60020 Label, Power Outlet Notice[07.2003 - 11.2005] ACA2# |
85539-60020 |
US $1.41 |
||
|
85920
|
85920
85920-0W010-A2 Relay & Switch Assy, Sliding Roof[07.2003 - 11.2005] ACA2# IVORY,TRIM4# |
85920-0W010-A2 |
US $299.94 |
||
|
85920
|
85920
85920-0W010-B4
Relay & Switch Assy, Sliding Roof
[07.2003 - 11.2005] ACA2# NEW GRAY,TRIM1# |
85920-0W010-B4 |
— | ||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.72 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.84 |
||
|
9016760014
|
9016760014
90167-60014 New Genuine Part |
90167-60014 |
US $0.87 |
||
|
9016770003
|
9016770003
90167-70003 New Genuine Part |
90167-70003 |
US $0.73 |
||
