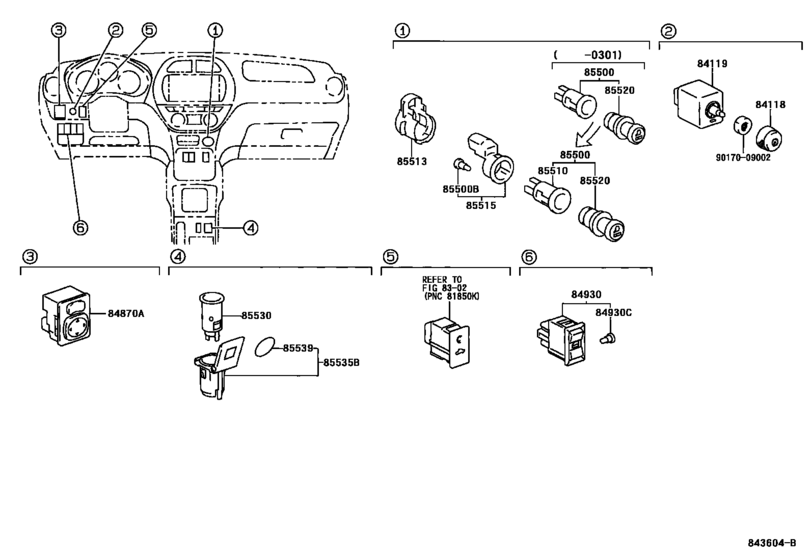

Switch & Relay & Computer ([08.2000 - 07.2003] INSTRUMENT PANEL (0008-0307)) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2003
- Sales region
- U.S.A.
- Frame
- ACA26
- ENGINE
- 1AZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- RAV4
- From
- 08.2000
- To
- 07.2003
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84118
|
84118
84118-44010 Knob, Light Control RheostatLIGHT CONTROL RHEOSTAT [08.2000 - 07.2003] ACA2# |
84118-44010 |
US $4.80 |
||
|
84119
|
84119
84119-20250
Rheostat, Light Control
[08.2000 - 07.2003] ACA2# |
84119-20250 |
— | ||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[08.2000 - 07.2003] ACA2# |
84870-34010 |
from US $57.15 |
||
|
84930
|
84930
84930-33080 Switch Assy, Door ControlDOOR CONTROL [08.2000 - 07.2003] ACA2# DOOR TRIM |
84930-33080 |
US $53.87 |
||
|
84930
|
84930
84930-42020 Switch Assy, Door ControlDOOR CONTROL [08.2000 - 07.2003] ACA2# INSTRUMENT PANEL |
84930-42020 |
US $61.30 |
||
| replacement | |||||
|
84930
|
84930
84930-52010 Switch Assy, Door Control[08.2000 - 07.2003] ACA2# INSTRUMENT PANEL |
84930-52010 |
US $69.01 |
||
|
84930C
|
84930C
84999-10310 Bulb, Air Conditioner Control[08.2000 - 07.2003] ACA2# 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[01.2003 - 07.2003] ACA2# |
85500-12240 |
from US $28.68 |
||
|
85500
|
85500
85500-28050 Lighter Assy, Cigarette[08.2000 - 01.2003] ACA2# |
85500-28050 |
from US $27.79 |
||
|
85500B
|
85500B
90010-01030 Bulb, Key Cylinder Lamp[08.2000 - 07.2003] ACA2# 14V1.4W,W(ORANGE CAP) |
90010-01030 |
from US $2.79 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[01.2003 - 07.2003] ACA2# |
85510-16040 |
US $24.47 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[08.2000 - 07.2003] ACA2# |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-22040 Stay, Cigarette Lighter Bezel[08.2000 - 07.2003] ACA2# |
85515-22040 |
from US $12.56 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[08.2000 - 07.2003] ACA2# |
85520-28010 |
from US $17.90 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[08.2000 - 07.2003] ACA2# |
85530-33020 |
from US $16.05 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[08.2000 - 07.2003] ACA2# |
85530-06010 |
from US $26.06 |
||
|
85535B
|
85535B
85535-42030-B0
Cover, Power Outlet Socket, No.1
[08.2000 - 07.2003] ACA2# BLUE GRAY,TRIM1# |
85535-42030-B0 |
— | ||
| replacement | |||||
|
85535B
|
85535B
85535-42030-C0 Cover, Power Outlet Socket, No.1[08.2000 - 07.2003] ACA2# BLUE GRAY,TRIM1# |
85535-42030-C0 |
from US $7.82 |
||
|
85535B
|
85535B
85535-42030-E0 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [08.2000 - 07.2003] ACA2# FAWN,TRIM4# |
85535-42030-E0 |
US $8.30 |
||
| replacement | |||||
|
85535B
|
85535B
85535-42030-C0 Cover, Power Outlet Socket, No.1[08.2000 - 07.2003] ACA2# FAWN,TRIM4# |
85535-42030-C0 |
from US $7.82 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[08.2000 - 07.2003] ACA2# |
85539-60020 |
US $1.41 |
||
|
9017009002
|
9017009002
90170-09002 Nut, Tunnel Mode Select Switch |
90170-09002 |
US $1.05 |
||
