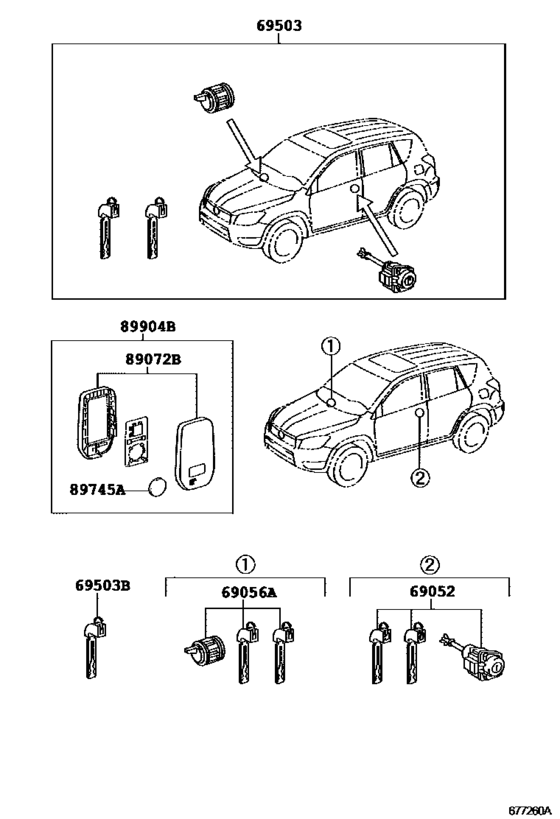

Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33) Diagram Toyota RAV4/VANGUARD
- Year
- 2009 - 2013
- Sales region
- General
- Frame
- ACA33
- grade
- G
- ENGINE
- 2AZFE
- Model
- RAV4 (CHINA)
- From
- 03.2009
- To
- 07.2013
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69052
|
69052
69052-0D120
Cylinder & Key Set, Door Lock, Lh
[08.2011 -] ACA32,37; ACA33 WIRELESS DOOR LOCK-WITH(2 BUTTON) |
69052-0D120 |
— | ||
|
69052
|
69052
69052-0R030
Cylinder & Key Set, Door Lock, Lh
[03.2009 - 08.2011] ACA33 |
69052-0R030 |
— | ||
|
69052
|
69052
69052-0R080
Cylinder & Key Set, Door Lock, Lh
[03.2012 -] ACA33 |
69052-0R080 |
— | ||
|
69056A
|
69056A
69056-0E070
Cylinder & Key Set, Glove Compartment Lock
[03.2012 -] ACA33 |
69056-0E070 |
— | ||
|
69056A
|
69056A
69056-0R020
Cylinder & Key Set, Glove Compartment Lock
[08.2011 -] ACA32,37; ACA33 WIRELESS DOOR LOCK-WITH(2 BUTTON) |
69056-0R020 |
— | ||
|
69056A
|
69056A
69056-0R030
Cylinder & Key Set, Glove Compartment Lock
[03.2009 - 08.2011] ACA33 |
69056-0R030 |
— | ||
|
69503
|
69503
69005-0R011
Cylinder Set, Lock
[08.2011 -] ACA32,37; ACA33 WIRELESS DOOR LOCK-WITH(2 BUTTON) |
69005-0R011 |
— | ||
|
69503
|
69503
69005-0R030
Cylinder Set, Lock
[03.2009 - 08.2011] ACA33 |
69005-0R030 |
— | ||
|
69503
|
69503
69005-0R120
Cylinder Set, Lock
[03.2012 -] ACA33 |
69005-0R120 |
— | ||
|
69503B
|
69503B
69515-12310 Key, Cut[03.2012 -] ACA33 MASTER KEY,W(*68) |
69515-12310 |
US $94.64 |
||
|
69503B
|
69503B
69515-52110 Key, Cutfor blank key → [03.2009 - 08.2011] ACA33 MASTER KEY,W(*68) |
69515-52110 |
US $129.56 |
||
|
89072B
|
89072B
89072-0R140
Housing Set, Door Control Transmitter
[03.2012 -] ACA33; ACA33 WIRELESS DOOR LOCK-WITH(2 BUTTON) |
89072-0R140 |
— | ||
|
89745A
|
89745A
89745-48030 Battery, Transmitter[08.2011 -] ACA32,37; ACA33 WIRELESS DOOR LOCK-WITH(2 BUTTON) |
89745-48030 |
US $5.82 |
||
|
89904B
|
89904B
89904-0R040
Transmitter Sub-Assy, Electrical Key
[03.2009 - 08.2011] ACA33 |
89904-0R040 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-0R041
Transmitter Sub-Assy, Electrical Key
[03.2009 - 08.2011] ACA33 |
89904-0R041 |
— | ||
|
89904B
|
89904B
89904-0R070
Transmitter Sub-Assy, Electrical Key
[08.2011 - 03.2012] ACA33; ACA33 WIRELESS DOOR LOCK-WITH(2 BUTTON) |
89904-0R070 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-0R071
Transmitter Sub-Assy, Electrical Key
[08.2011 - 03.2012] ACA33; ACA33 WIRELESS DOOR LOCK-WITH(2 BUTTON) |
89904-0R071 |
— | ||
|
89904B
|
89904B
89904-0R100
Transmitter Sub-Assy, Electrical Key
[03.2012 -] ACA33; ACA33 WIRELESS DOOR LOCK-WITH(2 BUTTON) |
89904-0R100 |
— | ||
