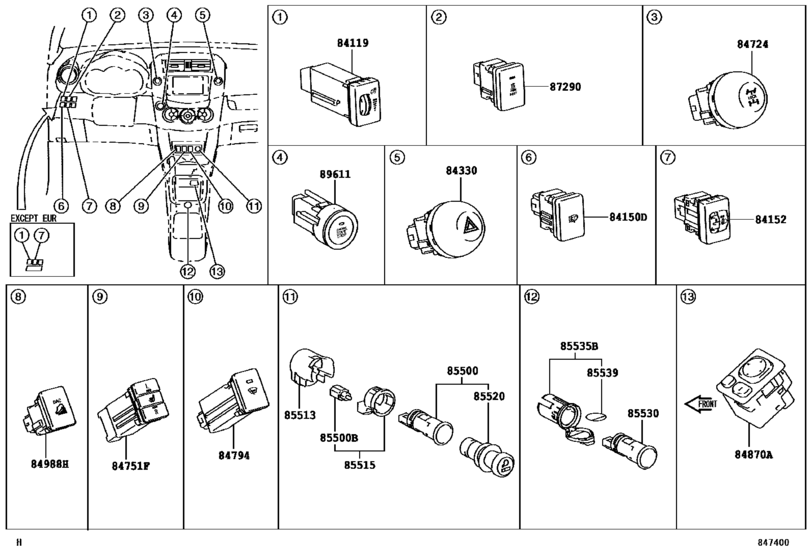

Switch & Relay & Computer ([11.2005 - 08.2008] INSTRUMENT PANEL (0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,A LA30..LHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-42020 Rheostat, Light Control[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
84119-42020 |
US $56.06 |
||
| replacement | |||||
|
84119
|
84119
84119-42021 Rheostat, Light Control[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
84119-42021 |
US $50.96 |
||
|
84152
|
84152
84152-52080 Switch, Headlamp Leveling[11.2005 - 08.2008] GSA33; ACA33..X..GCC SAUDI ARABIA SPEC |
84152-52080 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52081 Switch, Headlamp Leveling[11.2005 - 08.2008] GSA33; ACA33..X..GCC SAUDI ARABIA SPEC |
84152-52081 |
US $47.61 |
||
|
84330
|
84330
84332-42020
Switch Assy, Hazard Warning Signal
[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
84332-42020 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-42021 Switch Assy, Hazard Warning Signal[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
84332-42021 |
US $40.19 |
||
|
84724
|
84724
84724-42020
Switch, 4 Wheel Drive Control
[11.2005 - 08.2008] ACA33..X..GCC;ACA33,GSA33..ARL,GEN |
84724-42020 |
— | ||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
84870-34010 |
from US $63.17 |
||
|
85500
|
85500
85500-28080 Lighter Assy, Cigarette[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
85500-28080 |
from US $27.53 |
||
|
85500B
|
85500B
90010-01030 Bulb, Key Cylinder Lamp[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN 14V1.4W,W(ORANGE CAP) |
90010-01030 |
from US $2.67 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
85513-28010 |
from US $2.54 |
||
|
85515
|
85515
85515-22040 Stay, Cigarette Lighter Bezel[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
85515-22040 |
US $16.31 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
85520-28010 |
from US $16.77 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
85530-42010 |
from US $26.27 |
||
|
85535B
|
85535B
85535-35080-B0
Cover, Power Outlet Socket, No.1
[11.2005 - 12.2008] ACA33,38;ACA30,31,ALA30..G DK.GRAY,TRIM1#,4#; GSA33;ACA30,ALA30..X DK.GRAY,TRIM1# |
85535-35080-B0 |
— | ||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
85539-60020 |
US $1.41 |
||
