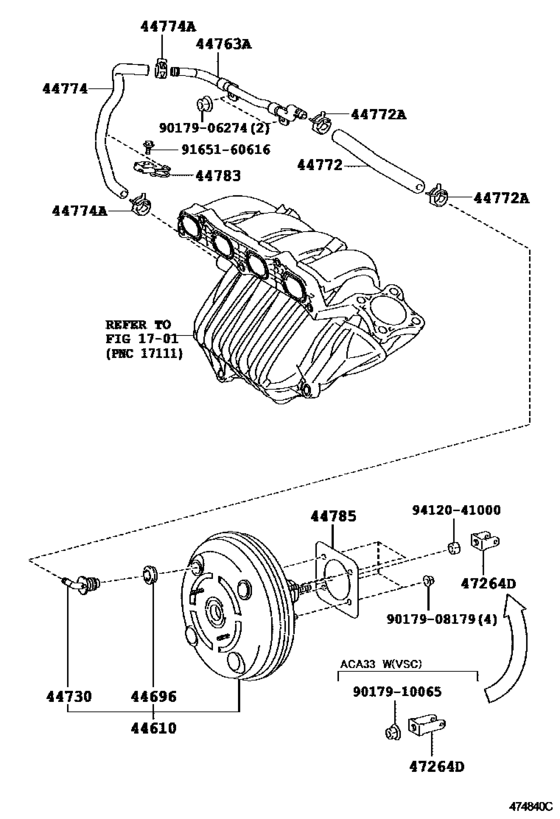

Brake Booster & Vacuum Tube ([11.2005 - ] (0511- )ACA3#..LHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-42260
Booster Assy, Brake
[11.2005 - 06.2006] ACA33,38..LHD; ACA30..LHD..X WITHOUT(VSC) |
44610-42260 |
— | ||
| replacement | |||||
|
44610
|
44610
44610-42263
Booster Assy, Brake
[11.2005 - 06.2006] ACA33,38..LHD; ACA30..LHD..X WITHOUT(VSC) |
44610-42263 |
— | ||
|
44610
|
44610
44610-42261
Booster Assy, Brake
[07.2006 - 03.2008] ACA33,38..LHD; ACA30..LHD..X WITHOUT(VSC) |
44610-42261 |
— | ||
| replacement | |||||
|
44610
|
44610
44610-42263
Booster Assy, Brake
[07.2006 - 03.2008] ACA33,38..LHD; ACA30..LHD..X WITHOUT(VSC) |
44610-42263 |
— | ||
|
44610
|
44610
44610-42262
Booster Assy, Brake
[03.2008 - 08.2008] ACA38;ACA33..LHD..X;ACA33..G..GEN |
44610-42262 |
— | ||
| replacement | |||||
|
44610
|
44610
44610-42263
Booster Assy, Brake
[03.2008 - 08.2008] ACA38;ACA33..LHD..X;ACA33..G..GEN |
44610-42263 |
— | ||
|
44610
|
44610
44610-42263
Booster Assy, Brake
[08.2010 - 12.2012] ACA33,38..GCC,GEN; ACA30..LHD..X VSC-WITHOUT |
44610-42263 |
— | ||
|
44610
|
44610
44610-42301
Booster Assy, Brake
[08.2008 - 12.2012] ACA33..G..GEN VSC-WITH; ACA38..G..GEN VSC-WITH(AUTO LIMITED SLIP DIFFERENTIAL) |
44610-42301 |
— | ||
|
44696
|
44696
90480-24439 Grommet, Check Valve[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
90480-24439 |
from US $2.57 |
||
|
44730
|
44730
44730-12070 Valve Assy, Vacuum Check(For Brake)[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
44730-12070 |
from US $26.42 |
||
|
44763A
|
44763A
44763-42060 Tube, Hose To Hose, No.1HOSE TO HOSE, NO.1 [11.2005 - 08.2008] ACA38;ACA33..LHD..X;ACA33..G..GEN |
44763-42060 |
US $28.90 |
||
|
44772
|
44772
44772-42070 Hose, Check Valve To Connector TubeCHECK VALVE TO CONNECTOR TUBE [11.2005 - 08.2008] ACA38;ACA33..LHD..X;ACA33..G..GEN |
44772-42070 |
US $15.23 |
||
|
44772A
|
44772A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[11.2005 - 08.2008] ACA38,GSA33;ACA33..LHD..X;ACA33..G..GEN |
96133-41500 |
from US $2.32 |
||
|
44774
|
44774
44774-42070
Hose, Union To Connector Tube
[11.2005 - 08.2008] ACA38;ACA33..LHD..X;ACA33..G..GEN |
44774-42070 |
— | ||
|
44774A
|
44774A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[11.2005 - 08.2008] ACA38,GSA33;ACA33..LHD..X;ACA33..G..GEN |
96133-41500 |
from US $2.32 |
||
|
44783
|
44783
44783-44010 Clamp, Vacuum Hose[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38..ARL,GEN |
44783-44010 |
US $2.62 |
||
|
44785
|
44785
44785-12040 Gasket, Brake Booster[02.2007 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
44785-12040 |
from US $3.06 |
||
|
44785
|
44785
44785-42010
Gasket, Brake Booster
[11.2005 - 02.2007] ALA30;ACA30..LHD..5F; ACA30..RHD;ACA31,33,38;ACA30..LHD..4FC; ACA30..LHD..5F..X WITHOUT(VSC) |
44785-42010 |
— | ||
| replacement | |||||
|
44785
|
44785
44785-12040 Gasket, Brake Booster[11.2005 - 02.2007] ALA30;ACA30..LHD..5F; ACA30..RHD;ACA31,33,38;ACA30..LHD..4FC; ACA30..LHD..5F..X WITHOUT(VSC) |
44785-12040 |
from US $3.06 |
||
|
47264D
|
47264D
47264-63010 Clevis, Master Cylinder Push Rod[11.2005 - 08.2008] ACA38;ACA33..X;ACA33..G..GEN |
47264-63010 |
US $3.35 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017908179
|
9017908179
90179-08179 New Genuine Part |
90179-08179 |
US $3.58 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
