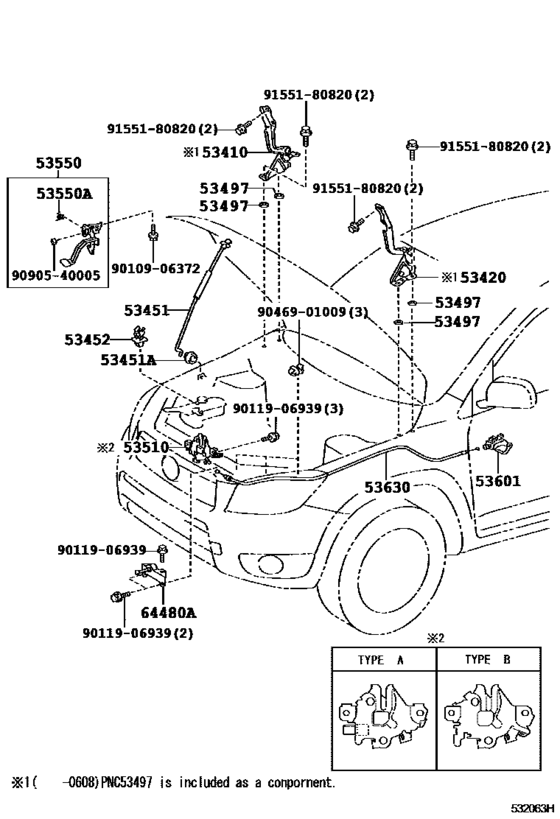

Hood Lock & Hinge ([11.2005 - ] (0511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACA33
- grade
- LIMD
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- RAV4 (JPP)
- From
- 11.2005
- To
- 08.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-42040 Hinge Assy, Hood, Rh[11.2005 - 09.2006] ACA3#,GSA3#..JPP |
53410-42040 |
US $34.80 |
||
| replacement | |||||
|
53410
|
53410
53410-42060 Hinge Assy, Hood, Rh[11.2005 - 09.2006] ACA3#,GSA3#..JPP |
53410-42060 |
from US $23.46 |
||
|
53410
|
53410
53410-42060 Hinge Assy, Hood, Rh[09.2006 - 08.2008] ACA3#,GSA3#..JPP |
53410-42060 |
from US $23.46 |
||
|
53420
|
53420
53420-42040 Hinge Assy, Hood, Lh[11.2005 - 09.2006] ACA3#,GSA3#..JPP |
53420-42040 |
US $34.80 |
||
| replacement | |||||
|
53420
|
53420
53420-42060 Hinge Assy, Hood, Lh[11.2005 - 09.2006] ACA3#,GSA3#..JPP |
53420-42060 |
from US $23.75 |
||
|
53420
|
53420
53420-42060 Hinge Assy, Hood, Lh[09.2006 - 08.2008] ACA3#,GSA3#..JPP |
53420-42060 |
from US $23.75 |
||
|
53451
|
53451
53440-42030 Rod, Hood Support[11.2005 - 05.2006] ACA3#,GSA3#..JPP |
53440-42030 |
US $20.09 |
||
| replacements | |||||
|
53451
|
53451
53440-42040 Rod, Hood Support[11.2005 - 05.2006] ACA3#,GSA3#..JPP |
53440-42040 |
from US $13.69 |
||
|
53451
|
53451
53452-42020 Holder, Hood Stay[11.2005 - 05.2006] ACA3#,GSA3#..JPP |
53452-42020 |
from US $3.20 |
||
|
53451
|
53451
53454-42010 Grommet(For Hood Support Rod)[11.2005 - 05.2006] ACA3#,GSA3#..JPP |
53454-42010 |
from US $1.23 |
||
|
53451
|
53451
53440-42040 Rod, Hood Support[05.2006 - 08.2008] ACA3#,GSA3#..JPP |
53440-42040 |
from US $13.69 |
||
|
53451A
|
53451A
53454-42010 Grommet(For Hood Support Rod)[05.2006 - 08.2008] ACA3#,GSA3#..JPP |
53454-42010 |
from US $1.23 |
||
|
53451A
|
53451A
90480-15025 Grommet(For Hood Support)[11.2005 - 05.2006] ACA3#,GSA3#..JPP |
90480-15025 |
from US $3.94 |
||
|
53452
|
53452
53452-42010 Holder, Hood Stay[11.2005 - 05.2006] ACA3#,GSA3#..JPP |
53452-42010 |
US $4.22 |
||
|
53452
|
53452
53452-42020 Holder, Hood Stay[05.2006 - 08.2008] ACA3#,GSA3#..JPP |
53452-42020 |
from US $3.20 |
||
|
53497
|
53497
53497-20070 Pad, Hood Hinge, No.1[09.2006 - 08.2008] ACA3#,GSA3#..JPP T=2.0 |
53497-20070 |
US $2.51 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[11.2005 - 08.2008] ACA3#,GSA3#..JPP T=0.5 |
53497-42010 |
US $1.79 |
||
|
53510
|
53510
53510-42070 Lock Assy, Hood[11.2005 - 08.2007] ACA3#,GSA3#..JPP TYPE A:REFER ILLUST. |
53510-42070 |
US $43.24 |
||
| replacement | |||||
|
53510
|
53510
53510-42090 Lock Assy, Hood[11.2005 - 08.2007] ACA3#,GSA3#..JPP TYPE A:REFER ILLUST. |
53510-42090 |
from US $38.40 |
||
|
53510
|
53510
53510-42090 Lock Assy, Hood[08.2007 - 08.2008] ACA3#,GSA3#..JPP TYPE B:REFER ILLUST. |
53510-42090 |
from US $38.40 |
||
|
53550
|
53550
53550-42020 Hook Assy, Hood Auxiliary Catch[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
53550-42020 |
from US $38 |
||
|
53550A
|
53550A
90508-18102 Spring, Torsion(For Hood Lock Hook)[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
90508-18102 |
US $1.75 |
||
|
53601
|
53601
53601-52010-B9 Lever Sub-Assy, Hood Lock Control[11.2005 - 08.2008] ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
53601-52010-B9 |
US $18.93 |
||
|
53601
|
53601
53601-52010-E0 Lever Sub-Assy, Hood Lock Control[11.2005 - 08.2008] ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
53601-52010-E0 |
US $25.04 |
||
| replacement | |||||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[11.2005 - 08.2008] ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
53601-52010-C0 |
— | ||
|
53630
|
53630
53630-42100 Cable Assy, Hood Lock ControlHOOD LOCK CONTROL [11.2005 - 08.2008] ACA3#,GSA3#..JPP |
53630-42100 |
US $26.13 |
||
|
64480A
|
64480A
64480-42010 Striker Assy, Engine Hood Lock[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
64480-42010 |
US $9.17 |
||
|
9010906372
|
9010906372
90109-06372 Bolt, Hood Lock |
90109-06372 |
US $1.08 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
from US $0.64 |
||
|
9046901009
|
9046901009
90469-01009 Clamp(For Hood Lock Control Cable) |
90469-01009 |
US $2.51 |
||
|
9090540005
|
9090540005
90905-40005 New Genuine Part |
90905-40005 |
US $1.60 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
