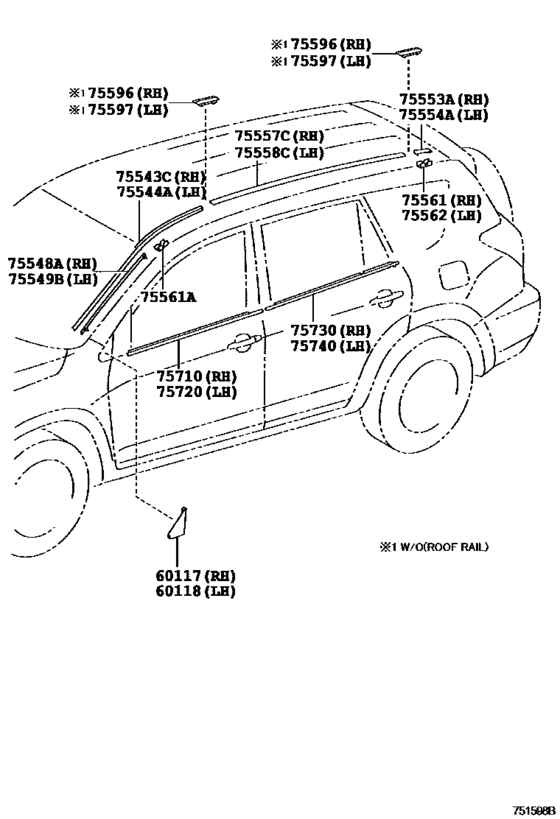

Moulding ([11.2005 - ] (0511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACA33
- grade
- LIMD
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- RAV4 (JPP)
- From
- 11.2005
- To
- 08.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60117
|
60117
60117-42010 Cover Sub-Assy, Front Pillar, Upr Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
60117-42010 |
from US $14.12 |
||
|
60118
|
60118
60118-42010 Cover Sub-Assy, Front Pillar, Upr Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
60118-42010 |
from US $16.07 |
||
|
75543C
|
75543C
75543-42010 Moulding, Windshield, Outside No.2 Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75543-42010 |
from US $59.34 |
||
|
75544A
|
75544A
75544-42010 Moulding, Windshield, Outside No.2 Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75544-42010 |
from US $58.87 |
||
|
75548A
|
75548A
75548-42020
Fastener, Windshield Outside Moulding, No.1
[11.2005 - 03.2006] ACA3#,GSA3#..JPP |
75548-42020 |
— | ||
| replacement | |||||
|
75548A
|
75548A
75548-42040 Fastener, Windshield Outside Moulding, No.1[11.2005 - 03.2006] ACA3#,GSA3#..JPP |
75548-42040 |
from US $10.76 |
||
|
75548A
|
75548A
75548-42021 Fastener, Windshield Outside Moulding, No.1[04.2006 - 08.2008] ACA3#,GSA3#..JPP |
75548-42021 |
US $8.59 |
||
| replacement | |||||
|
75548A
|
75548A
75548-42040 Fastener, Windshield Outside Moulding, No.1[04.2006 - 08.2008] ACA3#,GSA3#..JPP |
75548-42040 |
from US $10.76 |
||
|
75549B
|
75549B
75549-42020 Fastener, Windshield Outside Moulding, No.2[11.2005 - 03.2006] ACA3#,GSA3#..JPP |
75549-42020 |
US $12.52 |
||
| replacement | |||||
|
75549B
|
75549B
75549-42040 Fastener, Windshield Outside Moulding, No.2[11.2005 - 03.2006] ACA3#,GSA3#..JPP |
75549-42040 |
from US $10.78 |
||
|
75549B
|
75549B
75549-42021 Fastener, Windshield Outside Moulding, No.2[04.2006 - 08.2008] ACA3#,GSA3#..JPP |
75549-42021 |
US $8.59 |
||
| replacement | |||||
|
75549B
|
75549B
75549-42040 Fastener, Windshield Outside Moulding, No.2[04.2006 - 08.2008] ACA3#,GSA3#..JPP |
75549-42040 |
from US $10.78 |
||
|
75553A
|
75553A
75553-42020 Moulding, Roof Drip Side Finish, Rear Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75553-42020 |
from US $17.18 |
||
|
75554A
|
75554A
75554-42020 Moulding, Roof Drip Side Finish, Rear Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75554-42020 |
from US $17.18 |
||
|
75557C
|
75557C
75557-42030
Moulding, Roof Drip Side Finish, Center No.2 Rh
[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75557-42030 |
— | ||
| replacement | |||||
|
75557C
|
75557C
75557-42031 Moulding, Roof Drip Side Finish, Center No.2 Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75557-42031 |
US $108.24 |
||
|
75558C
|
75558C
75557-42030
Moulding, Roof Drip Side Finish, Center No.2 Rh
[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75557-42030 |
— | ||
| replacement | |||||
|
75558C
|
75558C
75557-42031 Moulding, Roof Drip Side Finish, Center No.2 Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75557-42031 |
US $108.24 |
||
|
75561
|
75561
75561-52020 Clip, Roof Drip Side Finish Moulding, No.1[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75561-52020 |
from US $0.99 |
||
|
75561A
|
75561A
75561-52020 Clip, Roof Drip Side Finish Moulding, No.1[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75561-52020 |
from US $0.99 |
||
|
75562
|
75562
75561-52020 Clip, Roof Drip Side Finish Moulding, No.1[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75561-52020 |
from US $0.99 |
||
|
75710
|
75710
75710-42030
Moulding Assy, Front Door Belt, Rh
[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75710-42030 |
— | ||
| replacement | |||||
|
75710
|
75710
75710-42031 Moulding Assy, Front Door Belt, Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75710-42031 |
from US $29.35 |
||
|
75720
|
75720
75720-42030
Moulding Assy, Front Door Belt, Lh
[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75720-42030 |
— | ||
| replacement | |||||
|
75720
|
75720
75720-42031 Moulding Assy, Front Door Belt, Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75720-42031 |
from US $29.78 |
||
|
75730
|
75730
75730-42020
Moulding Assy, Rear Door Belt, Rh
[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75730-42020 |
— | ||
| replacement | |||||
|
75730
|
75730
75730-42021 Moulding Assy, Rear Door Belt, Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75730-42021 |
from US $37.36 |
||
|
75740
|
75740
75740-42020 Moulding Assy, Rear Door Belt, Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75740-42020 |
US $43.10 |
||
| replacement | |||||
|
75740
|
75740
75740-42021 Moulding Assy, Rear Door Belt, Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
75740-42021 |
from US $37.07 |
||
