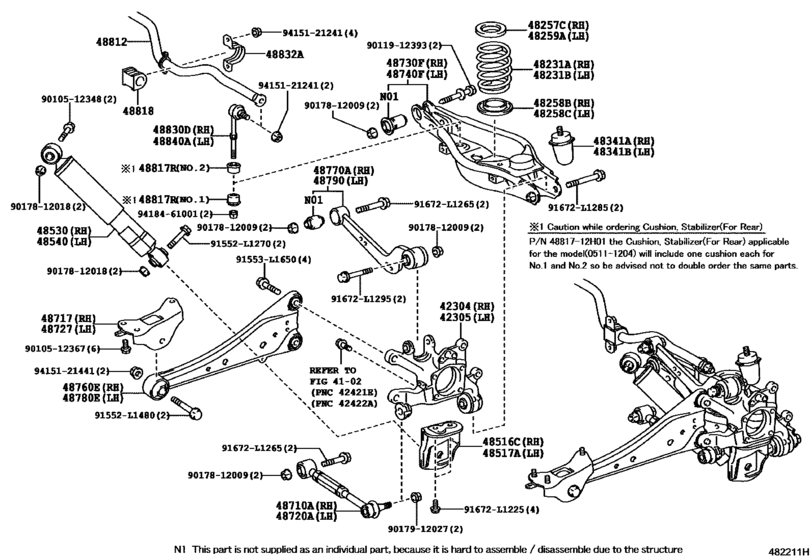

Rear Spring & Shock Absorber ([11.2005 - 08.2010] (0511-1008)) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACA33
- grade
- LIMD
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- RAV4 (JPP)
- From
- 11.2005
- To
- 08.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-42020 Carrier Sub-Assy, Rear Axle, Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
42304-42020 |
from US $149.29 |
||
|
42305
|
42305
42305-42020 Carrier Sub-Assy, Rear Axle, Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
42305-42020 |
from US $148.43 |
||
|
48231A
|
48231A
48231-42180
Spring, Coil, Rear Rh
[11.2005 - 08.2008] GSA33..JPP;ACA33..JPP..(LIMD,SPO); ACA33..JPP..X 225/65R17H STEEL 6.5J; ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE |
48231-42180 |
— | ||
| replacement | |||||
|
48231A
|
48231A
48231-42181 Spring, Coil, Rear RhCOIL, REAR RH [11.2005 - 08.2008] GSA33..JPP;ACA33..JPP..(LIMD,SPO); ACA33..JPP..X 225/65R17H STEEL 6.5J; ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE |
48231-42181 |
from US $104.46 |
||
|
48231A
|
48231A
48231-42220
Spring, Coil, Rear
[11.2005 - 08.2008] ACA33..JPP..X 225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS); ACA33..JPP..LIMD;GSA33..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS); ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE&THIRD SEAT-WITH(2PERSONS) |
48231-42220 |
— | ||
| replacement | |||||
|
48231A
|
48231A
48231-42221 Spring, Coil, Rear[11.2005 - 08.2008] ACA33..JPP..X 225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS); ACA33..JPP..LIMD;GSA33..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS); ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE&THIRD SEAT-WITH(2PERSONS) |
48231-42221 |
US $161.60 |
||
|
48231B
|
48231B
48231-42180
Spring, Coil, Rear Rh
[11.2005 - 08.2008] GSA33..JPP;ACA33..JPP..(LIMD,SPO); ACA33..JPP..X 225/65R17H STEEL 6.5J; ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE |
48231-42180 |
— | ||
| replacement | |||||
|
48231B
|
48231B
48231-42181 Spring, Coil, Rear RhCOIL, REAR RH [11.2005 - 08.2008] GSA33..JPP;ACA33..JPP..(LIMD,SPO); ACA33..JPP..X 225/65R17H STEEL 6.5J; ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE |
48231-42181 |
from US $104.46 |
||
|
48231B
|
48231B
48231-42220
Spring, Coil, Rear
[11.2005 - 08.2008] ACA33..JPP..X 225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS); ACA33..JPP..LIMD;GSA33..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS); ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE&THIRD SEAT-WITH(2PERSONS) |
48231-42220 |
— | ||
| replacement | |||||
|
48231B
|
48231B
48231-42221 Spring, Coil, Rear[11.2005 - 08.2008] ACA33..JPP..X 225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS); ACA33..JPP..LIMD;GSA33..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS); ACA33..JPP..X 225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE&THIRD SEAT-WITH(2PERSONS) |
48231-42221 |
US $161.60 |
||
|
48257C
|
48257C
48257-42030 Insulator, Rear Coil Spring, Upper[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48257-42030 |
from US $7.88 |
||
|
48258B
|
48258B
48258-42020 Insulator, Rear Coil Spring, Lower[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48258-42020 |
from US $4.80 |
||
|
48258C
|
48258C
48258-42020 Insulator, Rear Coil Spring, Lower[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48258-42020 |
from US $4.80 |
||
|
48259A
|
48259A
48257-42030 Insulator, Rear Coil Spring, Upper[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48257-42030 |
from US $7.88 |
||
|
48341A
|
48341A
48341-42010 Bumper, Rear Spring, No.1 Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48341-42010 |
from US $22.44 |
||
|
48341B
|
48341B
48341-42010 Bumper, Rear Spring, No.1 Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48341-42010 |
from US $22.44 |
||
|
48516C
|
48516C
48505-42010 Bracket, Rear Shock Absorber, No.1 Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48505-42010 |
US $75.26 |
||
|
48517A
|
48517A
48506-42010 Bracket, Rear Shock Absorber, No.1 Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48506-42010 |
US $75.26 |
||
|
48530
|
48530
48531-42130
Absorber Assy, Shock, Rear Rh
[11.2005 - 08.2008] ACA33,GSA3#..JPP MARK 48531-42130; ACA38..JPP..(LIMD,X) MARK 48531-42130,THIRD SEAT-WITH(2PERSONS) |
48531-42130 |
— | ||
| replacement | |||||
|
48530
|
48530
48530-42030 Absorber Assy, Shock, Rear[11.2005 - 08.2008] ACA33,GSA3#..JPP MARK 48531-42130; ACA38..JPP..(LIMD,X) MARK 48531-42130,THIRD SEAT-WITH(2PERSONS) |
48530-42030 |
from US $71.94 |
||
|
48540
|
48540
48531-42130
Absorber Assy, Shock, Rear Rh
[11.2005 - 08.2008] ACA33,GSA3#..JPP MARK 48531-42130; ACA38..JPP..(LIMD,X) MARK 48531-42130,THIRD SEAT-WITH(2PERSONS) |
48531-42130 |
— | ||
| replacement | |||||
|
48540
|
48540
48530-42030 Absorber Assy, Shock, Rear[11.2005 - 08.2008] ACA33,GSA3#..JPP MARK 48531-42130; ACA38..JPP..(LIMD,X) MARK 48531-42130,THIRD SEAT-WITH(2PERSONS) |
48530-42030 |
from US $71.94 |
||
|
48710A
|
48710A
48710-42020 Arm Assy, Rear Suspension, No.1[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48710-42020 |
from US $121.36 |
||
|
48717
|
48717
48717-42010 Bracket, Rear Suspension Arm, Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48717-42010 |
US $26.83 |
||
|
48720A
|
48720A
48710-42020 Arm Assy, Rear Suspension, No.1[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48710-42020 |
from US $121.36 |
||
|
48727
|
48727
48727-42010 Bracket, Rear Suspension Arm, Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48727-42010 |
US $45.19 |
||
|
48730F
|
48730F
48730-42050 Arm Assy, Rear Suspension, No.2 Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48730-42050 |
from US $118.80 |
||
|
48740F
|
48740F
48740-42020 Arm Assy, Rear Suspension, No.2 Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48740-42020 |
from US $118.80 |
||
|
48760E
|
48760E
48760-42010 Arm Assy, Trailing, Rear Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48760-42010 |
from US $102.96 |
||
|
48770A
|
48770A
48770-42040 Arm Assy, Upper Control, Rear Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48770-42040 |
from US $106.60 |
||
|
48780E
|
48780E
48780-42010 Arm Assy, Trailing, Rear Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48780-42010 |
from US $139.40 |
||
|
48790
|
48790
48790-42020 Arm Assy, Upper Control, Rear Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
48790-42020 |
from US $106.60 |
||
|
48812
|
48812
48812-42030 Bar, Stabilizer, Rear[11.2005 - 08.2008] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48812-42030 |
from US $145.02 |
||
|
48817R
|
48817R
48817-42020
Cushion, Stabilizer(For Rear)
[11.2005 - 07.2007] ACA33,GSA3#..JPP NO.1,2:REFER ILLUST.; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS),NO.1,2:REFER ILLUST. |
48817-42020 |
— | ||
| replacement | |||||
|
48817R
|
48817R
48817-12H01 Cushion, Stabilizer(For Rear)[11.2005 - 07.2007] ACA33,GSA3#..JPP NO.1,2:REFER ILLUST.; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS),NO.1,2:REFER ILLUST. |
48817-12H01 |
from US $15.66 |
||
|
48817R
|
48817R
48817-42021
Cushion, Stabilizer(For Rear)
[08.2007 - 08.2008] ACA33,GSA3#..JPP NO.1:REFER ILLUST.; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS),NO.1:REFER ILLUST. |
48817-42021 |
— | ||
| replacement | |||||
|
48817R
|
48817R
48817-12H01 Cushion, Stabilizer(For Rear)[08.2007 - 08.2008] ACA33,GSA3#..JPP NO.1:REFER ILLUST.; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS),NO.1:REFER ILLUST. |
48817-12H01 |
from US $15.66 |
||
|
48817R
|
48817R
48817-42030
Cushion, Stabilizer(For Rear)
[08.2007 - 08.2008] ACA33,GSA3#..JPP NO.2:REFER ILLUST.; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS),NO.2:REFER ILLUST. |
48817-42030 |
— | ||
| replacement | |||||
|
48817R
|
48817R
48817-12H01 Cushion, Stabilizer(For Rear)[08.2007 - 08.2008] ACA33,GSA3#..JPP NO.2:REFER ILLUST.; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS),NO.2:REFER ILLUST. |
48817-12H01 |
from US $15.66 |
||
|
48818
|
48818
48818-42010 Bush, Stabilizer, Rear[11.2005 - 08.2008] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48818-42010 |
from US $5.77 |
||
|
48830D
|
48830D
48830-42020
Link Assy, Rear Stabilizer, Rh
[11.2005 - 07.2007] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48830-42020 |
— | ||
| replacements | |||||
|
48830D
|
48830D
48817-12H01 Cushion, Stabilizer(For Rear)[11.2005 - 07.2007] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48817-12H01 |
from US $15.66 |
||
|
48830D
|
48830D
48830-42022 Link Assy, Rear Stabilizer[11.2005 - 07.2007] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48830-42022 |
from US $56.57 |
||
|
48830D
|
48830D
48830-42021
Link Assy, Rear Stabilizer
[08.2007 - 08.2008] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48830-42021 |
— | ||
| replacement | |||||
|
48830D
|
48830D
48830-42022 Link Assy, Rear Stabilizer[08.2007 - 08.2008] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48830-42022 |
from US $56.57 |
||
|
48832A
|
48832A
48832-42010 Bracket, Rear Stabilizer Bar, No.1[11.2005 - 08.2008] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48832-42010 |
US $11.65 |
||
|
48840A
|
48840A
48830-42020
Link Assy, Rear Stabilizer, Rh
[11.2005 - 07.2007] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48830-42020 |
— | ||
| replacements | |||||
|
48840A
|
48840A
48817-12H01 Cushion, Stabilizer(For Rear)[11.2005 - 07.2007] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48817-12H01 |
from US $15.66 |
||
|
48840A
|
48840A
48830-42022 Link Assy, Rear Stabilizer[11.2005 - 07.2007] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48830-42022 |
from US $56.57 |
||
|
48840A
|
48840A
48830-42021
Link Assy, Rear Stabilizer
[08.2007 - 08.2008] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48830-42021 |
— | ||
| replacement | |||||
|
48840A
|
48840A
48830-42022 Link Assy, Rear Stabilizer[08.2007 - 08.2008] ACA33,GSA3#..JPP; ACA38..JPP..(LIMD,X) THIRD SEAT-WITH(2PERSONS) |
48830-42022 |
from US $56.57 |
||
|
91552L1270
|
91552L1270
91552-L1270 BOLT FLANGE |
91552-L1270 |
from US $3.41 |
||
|
91552L1480
|
91552L1480
91552-L1480 BOLT FLANGE |
91552-L1480 |
from US $3.41 |
||
|
91553L1650
|
91553L1650
91553-L1650 BOLT FLANGE |
91553-L1650 |
US $8.60 |
||
|
91672L1225
|
91672L1225
91672-L1225 BOLT FLANGE |
91672-L1225 |
US $3.76 |
||
|
91672L1265
|
91672L1265
91672-L1265 BOLT FLANGE |
91672-L1265 |
from US $2.63 |
||
|
91672L1285
|
91672L1285
91672-L1285 BOLT FLANGE |
91672-L1285 |
US $4.30 |
||
|
91672L1295
|
91672L1295
91672-L1295 BOLT FLANGE |
91672-L1295 |
from US $3.33 |
||
|
9010512348
|
9010512348
90105-12348 BOLT FLANGE |
90105-12348 |
from US $2.94 |
||
|
9010512367
|
9010512367
90105-12367 New Genuine Part |
90105-12367 |
US $3.94 |
||
|
9011912393
|
9011912393
90119-12393 BOLT WWASHER |
90119-12393 |
from US $2.55 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
from US $1.11 |
||
|
9017812018
|
9017812018
90178-12018 NUT FLANGE |
90178-12018 |
from US $1.11 |
||
|
9017912027
|
9017912027
90179-12027 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-12027 |
from US $1.27 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.96 |
||
|
9415121441
|
9415121441
94151-21441 NUT FLANGE |
94151-21441 |
from US $1.15 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.78 |
||
