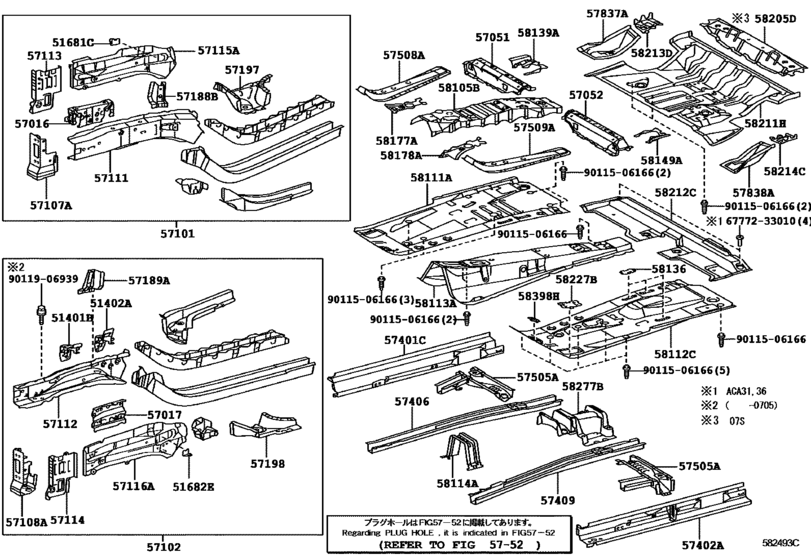

Front Floor Panel & Front Floor Member ([11.2005 - 02.2010] (0511-0808)ACA31,36 ; (0511-1002)ACA33,38,GSA33) Diagram Toyota RAV4/VANGUARD
- Year
- 2007 - 2013
- Sales region
- Japan
- Frame
- ACA33
- grade
- 240S
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- Model
- VANGUARD
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- VANGUARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51401B
|
51401B
51401-42010 Bracket Sub-Assy, Engine Front Mounting[11.2005 - 02.2010] ACA33,38,GSA33 |
51401-42010 |
US $25.63 |
||
|
51401B
|
51401B
51401-42020 Bracket Sub-Assy, Engine Front Mounting[08.2013 - 11.2013] ACA33,38 |
51401-42020 |
US $31.30 |
||
|
51402A
|
51402A
51402-42010 Bracket Sub-Assy, Engine Front Mounting, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
51402-42010 |
US $25.63 |
||
|
51681C
|
51681C
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
51681-12080 |
US $8.01 |
||
|
51682E
|
51682E
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
51682-12080 |
US $8.01 |
||
|
57016
|
57016
57016-12110 Reinforcement Sub-Assy, Front Side Member, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57016-12110 |
US $44.69 |
||
|
57017
|
57017
57017-12070 Reinforcement Sub-Assy, Front Side Member, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57017-12070 |
US $41.34 |
||
|
57051
|
57051
57051-42010 Member Sub-Assy, Front Floor Cross, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57051-42010 |
US $84.45 |
||
|
57051
|
57051
57051-42011 Member Sub-Assy, Front Floor Cross, Rh[01.2012 -] ACA31,36; ACA33,38,GSA33 |
57051-42011 |
from US $65.23 |
||
|
57052
|
57052
57052-42010 Member Sub-Assy, Front Floor Cross, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57052-42010 |
US $110.66 |
||
|
57052
|
57052
57052-42011 Member Sub-Assy, Front Floor Cross, Lh[01.2012 -] ACA31,36; ACA33,38,GSA33 |
57052-42011 |
US $88.82 |
||
|
57101
|
57101
57101-42110 Member Sub-Assy, Front Side, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57101-42110 |
US $764.40 |
||
| replacements | |||||
|
57101
|
57101
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
51681-12080 |
US $8.01 |
||
|
57101
|
57101
57043-42010 Reinforcement Sub-Assy, Front Side Member, Rear Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57043-42010 |
US $106.29 |
||
|
57101
|
57101
57053-42011 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57053-42011 |
US $61.15 |
||
|
57101
|
57101
57111-42900 Member Sub-Assy, Front Side, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57111-42900 |
US $275.18 |
||
|
57101
|
57101
57191-42060 Member, Front Side, Inner Rear Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57191-42060 |
US $160.16 |
||
|
57101
|
57101
57197-42060 Box, Torque, Front Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57197-42060 |
US $46.59 |
||
|
57102
|
57102
57102-42090 Member Sub-Assy, Front Side, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57102-42090 |
US $784.78 |
||
| replacements | |||||
|
57102
|
57102
57112-12906 Member Sub-Assy, Front Side, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57112-12906 |
US $327.60 |
||
|
57102
|
57102
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
51682-12080 |
US $8.01 |
||
|
57102
|
57102
57044-42010 Reinforcement Sub-Assy, Front Side Member, Rear Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57044-42010 |
US $106.29 |
||
|
57102
|
57102
57054-42010 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57054-42010 |
US $74.26 |
||
|
57102
|
57102
57192-42060 Member, Front Side, Inner Rear Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57192-42060 |
US $160.16 |
||
|
57102
|
57102
57198-42060 Box, Torque, Front Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57198-42060 |
US $49.80 |
||
|
57107A
|
57107A
57107-42030 Plate Sub-Assy, Front Side Member, No.2 Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57107-42030 |
US $67.97 |
||
|
57108A
|
57108A
57108-42030 Plate Sub-Assy, Front Side Member, No.2 Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57108-42030 |
US $74.26 |
||
| replacement | |||||
|
57108A
|
57108A
57108-42031 Plate Sub-Assy, Front Side Member, No.2 Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57108-42031 |
from US $67.32 |
||
|
57111
|
57111
57111-12230 Member, Front Side, Rh[05.2007 - 02.2010] ACA33,38,GSA33 |
57111-12230 |
US $109.20 |
||
|
57112
|
57112
57112-12190 Member, Front Side, Lh[05.2007 - 02.2010] ACA33,38,GSA33 |
57112-12190 |
US $109.20 |
||
|
57113
|
57113
57113-42050 Extension, Front Side Member, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57113-42050 |
US $37.84 |
||
|
57114
|
57114
57114-42050 Extension, Front Side Member, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57114-42050 |
US $51.11 |
||
| replacement | |||||
|
57114
|
57114
57114-78010 Extension, Front Side Member, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57114-78010 |
US $37.71 |
||
|
57114
|
57114
57114-42051 Extension, Front Side Member, Lh[06.2011 - 11.2013] ACA33,38,GSA33 |
57114-42051 |
US $42.52 |
||
| replacement | |||||
|
57114
|
57114
57114-78010 Extension, Front Side Member, Lh[06.2011 - 11.2013] ACA33,38,GSA33 |
57114-78010 |
US $37.71 |
||
|
57115A
|
57115A
57115-12090 Plate, Front Side Member, Outer Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57115-12090 |
US $78.62 |
||
| replacement | |||||
|
57115A
|
57115A
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
51681-12080 |
US $8.01 |
||
|
57116A
|
57116A
57116-12090 Plate, Front Side Member, Outer Lh[05.2007 - 02.2010] ACA33,38,GSA33 |
57116-12090 |
US $78.62 |
||
| replacement | |||||
|
57116A
|
57116A
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[05.2007 - 02.2010] ACA33,38,GSA33 |
51682-12080 |
US $8.01 |
||
|
57188B
|
57188B
57188-42030 Gusset, Front Side Member To Spring Support, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57188-42030 |
US $20.09 |
||
|
57189A
|
57189A
57189-42020 Gusset, Front Side Member To Spring Support, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57189-42020 |
US $19.36 |
||
|
57197
|
57197
57197-42060 Box, Torque, Front Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57197-42060 |
US $46.59 |
||
|
57198
|
57198
57198-42060 Box, Torque, Front Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57198-42060 |
US $49.80 |
||
|
57401C
|
57401C
57401-42121
Member Sub-Assy, Floor Side, Inner Rh
[08.2007 - 02.2010] ACA33,38,GSA33 |
57401-42121 |
— | ||
|
57402A
|
57402A
57402-42121 Member Sub-Assy, Floor Side, Inner Lh[08.2007 - 02.2010] ACA33,38,GSA33 |
57402-42121 |
US $236.11 |
||
|
57406
|
57406
57406-42010
Member Sub-Assy, Main Floor Side, Rh
[08.2007 - 02.2010] ACA33,38,GSA33 |
57406-42010 |
— | ||
| replacement | |||||
|
57406
|
57406
57406-42011 Member Sub-Assy, Main Floor Side, Rh[08.2007 - 02.2010] ACA33,38,GSA33 |
57406-42011 |
US $109.20 |
||
|
57406
|
57406
57406-42011 Member Sub-Assy, Main Floor Side, Rh[01.2013 -] ACA33,38 |
57406-42011 |
US $109.20 |
||
|
57409
|
57409
57409-42010 Member Sub-Assy, Main Floor Side, Lh[08.2007 - 02.2010] ACA33,38,GSA33 |
57409-42010 |
US $125.22 |
||
|
57505A
|
57505A
57505-42110 Reinforcement Sub-Assy, Front Floor Under[11.2005 - 02.2010] ACA33,38,GSA33 右側 |
57505-42110 |
US $90.27 |
||
|
57505A
|
57505A
57506-42050 Reinforcement Sub-Assy, Front Floor Under[11.2005 - 02.2010] ACA33,38,GSA33 左側 |
57506-42050 |
US $88.82 |
||
|
57508A
|
57508A
57508-42010 Reinforcement Sub-Assy, Front Floor, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57508-42010 |
US $59.55 |
||
|
57509A
|
57509A
57509-42010 Reinforcement Sub-Assy, Front Floor, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57509-42010 |
US $59.55 |
||
|
57837A
|
57837A
57837-42020 Reinforcement, Rear No.1 Seat Leg, Rear No.3[11.2005 - 02.2010] ACA33,38,GSA33 |
57837-42020 |
US $57.95 |
||
|
57838A
|
57838A
57838-42010 Reinforcement, Rear No.1 Seat Leg, Rear No.4[11.2005 - 02.2010] ACA33,38,GSA33 |
57838-42010 |
US $57.95 |
||
|
58105B
|
58105B
58105-42011 Panel Sub-Assy, Front Floor Rear Upper Sub[11.2005 - 02.2010] ACA33,38,GSA33 |
58105-42011 |
US $154.34 |
||
| replacement | |||||
|
58105B
|
58105B
58105-42012 Panel Sub-Assy, Front Floor Rear Upper Sub[11.2005 - 02.2010] ACA33,38,GSA33 |
58105-42012 |
US $154.34 |
||
|
58105B
|
58105B
58105-42012 Panel Sub-Assy, Front Floor Rear Upper Sub[05.2012 - 01.2013] ACA31,36; ACA33,38,GSA33 |
58105-42012 |
US $154.34 |
||
|
58105B
|
58105B
58105-42013 Panel Sub-Assy, Front Floor Rear Upper Sub[01.2013 -] ACA31,36; ACA33,38 |
58105-42013 |
US $116.48 |
||
|
58111A
|
58111A
58111-42200 Pan, Front Floor, Rh[08.2007 - 02.2010] ACA33,38,GSA33 |
58111-42200 |
US $209.66 |
||
| replacements | |||||
|
58111A
|
58111A
57051-42011 Member Sub-Assy, Front Floor Cross, Rh[08.2007 - 02.2010] ACA33,38,GSA33 |
57051-42011 |
from US $65.23 |
||
|
58111A
|
58111A
58111-42201 Pan, Front Floor, Rh[08.2007 - 02.2010] ACA33,38,GSA33 |
58111-42201 |
US $155.79 |
||
|
58111A
|
58111A
58111-42201 Pan, Front Floor, Rh[01.2012 -] ACA33,38,GSA33 |
58111-42201 |
US $155.79 |
||
|
58112C
|
58112C
58112-42010 Pan, Front Floor, Lh[08.2007 - 02.2010] ACA33,38,GSA33 |
58112-42010 |
US $208.21 |
||
| replacements | |||||
|
58112C
|
58112C
57052-42011 Member Sub-Assy, Front Floor Cross, Lh[08.2007 - 02.2010] ACA33,38,GSA33 |
57052-42011 |
US $88.82 |
||
|
58112C
|
58112C
58112-42011 Pan, Front Floor, Lh[08.2007 - 02.2010] ACA33,38,GSA33 |
58112-42011 |
US $155.79 |
||
|
58112C
|
58112C
58149-42011 Plate, Front Floor Side, Rear Lh[08.2007 - 02.2010] ACA33,38,GSA33 |
58149-42011 |
US $11.94 |
||
|
58112C
|
58112C
58112-42011 Pan, Front Floor, Lh[01.2012 -] ACA33,38,GSA33 |
58112-42011 |
US $155.79 |
||
|
58113A
|
58113A
58113-42010 Panel, Front Floor, Center[08.2007 - 02.2010] ACA33,38,GSA33 |
58113-42010 |
US $371.28 |
||
| replacement | |||||
|
58113A
|
58113A
58113-42012 Panel, Front Floor, Center[08.2007 - 02.2010] ACA33,38,GSA33 |
58113-42012 |
US $279.55 |
||
|
58113A
|
58113A
58113-42011 Panel, Front Floor, Center[01.2013 - 07.2013] ACA33,38 |
58113-42011 |
US $308.67 |
||
| replacement | |||||
|
58113A
|
58113A
58113-42012 Panel, Front Floor, Center[01.2013 - 07.2013] ACA33,38 |
58113-42012 |
US $279.55 |
||
|
58113A
|
58113A
58113-42012 Panel, Front Floor, Center[08.2013 -] ACA33,38 |
58113-42012 |
US $279.55 |
||
|
58114A
|
58114A
58114-42040 Reinforcement, Front Floor Panel[11.2005 - 02.2010] ACA33,38,GSA33 |
58114-42040 |
US $26.64 |
||
| replacement | |||||
|
58114A
|
58114A
58114-42041 Reinforcement, Front Floor Panel[11.2005 - 02.2010] ACA33,38,GSA33 |
58114-42041 |
US $20.09 |
||
|
58114A
|
58114A
58114-42041 Reinforcement, Front Floor Panel[10.2012 -] ACA31,36; ACA33,38 |
58114-42041 |
US $20.09 |
||
|
58136
|
58136
58136-42020 Cover, Front Floor Hole[11.2005 - 02.2010] ACA33,38,GSA33 |
58136-42020 |
US $2.91 |
||
|
58139A
|
58139A
58139-42010 Cover, Front Floor Side, Rear[11.2005 - 02.2010] ACA33,38,GSA33 |
58139-42010 |
US $11.94 |
||
|
58149A
|
58149A
58149-42010 Plate, Front Floor Side, Rear Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
58149-42010 |
US $16.02 |
||
|
58149A
|
58149A
58149-42011 Plate, Front Floor Side, Rear Lh[01.2012 -] ACA31,36; ACA33,38,GSA33 |
58149-42011 |
US $11.94 |
||
|
58177A
|
58177A
58177-42010 Extension, Front Floor Panel, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
58177-42010 |
US $11.94 |
||
|
58178A
|
58178A
58178-42010 Extention, Front Floor Panel, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
58178-42010 |
US $15 |
||
|
58205D
|
58205D
58205-42010 Reinforce Sub-Assy, Rear Seat Hinge[08.2007 - 02.2010] ACA33,38,GSA33..07S |
58205-42010 |
US $65.37 |
||
|
58211H
|
58211H
58211-42011 Pan, Center Floor[12.2006 - 02.2010] ACA33,38,GSA33 |
58211-42011 |
US $198.02 |
||
|
58212C
|
58212C
58202-42010 Pan, Center Floor, Front[11.2005 - 02.2010] ACA33,38,GSA33 |
58202-42010 |
US $128.13 |
||
|
58213D
|
58213D
58213-42010 Reinforcement, Center Floor Panel[11.2005 - 02.2010] ACA33,38,GSA33 |
58213-42010 |
US $9.46 |
||
|
58214C
|
58214C
58214-42010 Reinforcement, Center Floor Panel, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
58214-42010 |
US $9.46 |
||
|
58227B
|
58227B
58227-42010 Plate, Front Floor Panel Side, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
58227-42010 |
US $3.93 |
||
|
58277B
|
58277B
58209-42030 Reinforcement, Drive Shaft Center Support[11.2005 - 02.2010] ACA33,38,GSA33 |
58209-42030 |
US $120.85 |
||
| replacement | |||||
|
58277B
|
58277B
58209-48010 Reinforce Sub-Assy, Drive Shaft Center Support, Rear[11.2005 - 02.2010] ACA33,38,GSA33 |
58209-48010 |
US $90.27 |
||
|
58277B
|
58277B
58209-48010 Reinforce Sub-Assy, Drive Shaft Center Support, Rear[01.2013 -] ACA31,36; ACA33,38 |
58209-48010 |
US $90.27 |
||
|
58398H
|
58398H
58398-42010 Cover, Floor Under, No.1[11.2005 - 02.2010] ACA33,38,GSA33 |
58398-42010 |
US $2.91 |
||
|
6777233010
|
6777233010
67772-33010 Weatherstrip, Back Door Trim, Lh |
67772-33010 |
US $3.84 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
US $0.96 |
||
