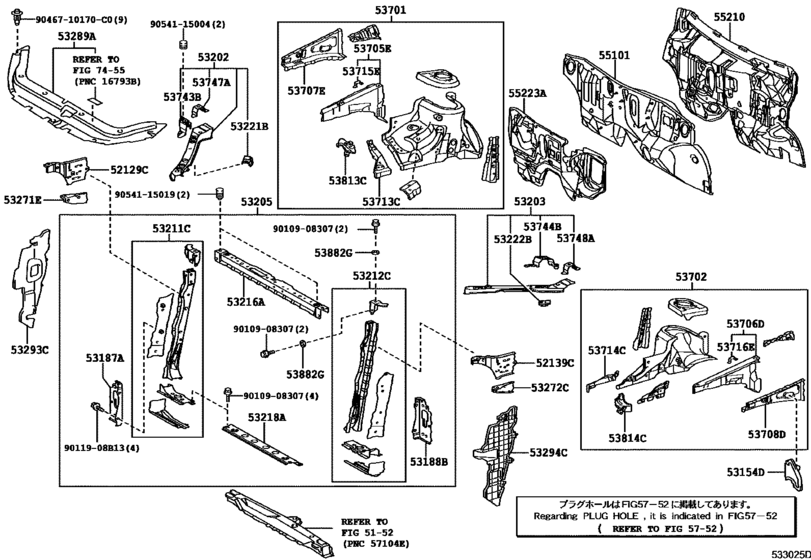

Front Fender Apron & Dash Panel ([11.2005 - ] (0511- )LHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA38
- grade
- X
- ENGINE
- 2AZFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 5F
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52129C
|
52129C
52129-42010 Arm, Front Bumper, Upper No.2 Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
52129-42010 |
from US $15.85 |
||
|
52139C
|
52139C
52139-42010 Arm, Front Bumper, Upper No.2 Lh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
52139-42010 |
US $44.58 |
||
|
53187A
|
53187A
53187-42010 Stay, Radiator Support, Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53187-42010 |
from US $25.53 |
||
|
53188B
|
53188B
53188-42010 Stay, Radiator Support, Lh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53188-42010 |
from US $25.45 |
||
|
53202
|
53202
53202-42010 Support Sub-Assy, Radiator, Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53202-42010 |
US $28.39 |
||
|
53203
|
53203
53203-42010 Support Sub-Assy, Radiator, Lh[11.2005 - 09.2007] ACA3#,ALA30,GSA33 |
53203-42010 |
US $41.06 |
||
| replacement | |||||
|
53203
|
53203
53203-42011 Support Sub-Assy, Radiator, Lh[11.2005 - 09.2007] ACA3#,ALA30,GSA33 |
53203-42011 |
US $28.25 |
||
|
53203
|
53203
53203-42011 Support Sub-Assy, Radiator, Lh[10.2007 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53203-42011 |
US $28.25 |
||
|
53205
|
53205
53205-42070 Support Sub-Assy, Radiator, Upper[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53205-42070 |
from US $283.20 |
||
|
53211C
|
53211C
53211-42902 Support, Radiator, Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53211-42902 |
US $88.82 |
||
|
53212C
|
53212C
53212-42902 Support, Radiator, Lh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53212-42902 |
US $88.82 |
||
|
53216A
|
53216A
53216-42901 Support, Radiator, Upper[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53216-42901 |
from US $107.99 |
||
|
53218A
|
53218A
53218-42020 Support, Radiator, Lower[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53218-42020 |
from US $28.39 |
||
|
53221B
|
53221B
53221-42010 Brace, Radiator Support Apron, Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53221-42010 |
US $4.72 |
||
|
53222B
|
53222B
53222-42010 Brace, Radiator Support Apron, Lh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53222-42010 |
US $4.72 |
||
|
53271E
|
53271E
53271-42010 Bracket, Headlamp Mounting, Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53271-42010 |
US $8.26 |
||
|
53272C
|
53272C
53272-42010 Bracket, Headlamp Mounting, Lh[11.2005 - 03.2006] ACA3#,ALA30 |
53272-42010 |
US $10.48 |
||
| replacement | |||||
|
53272C
|
53272C
53272-42011 Bracket, Headlamp Mounting, Lh[11.2005 - 03.2006] ACA3#,ALA30 |
53272-42011 |
from US $8.26 |
||
|
53272C
|
53272C
53272-42011 Bracket, Headlamp Mounting, Lh[04.2006 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53272-42011 |
from US $8.26 |
||
|
53289A
|
53289A
53289-42010 Cover, Radiator Support Opening[11.2005 - 12.2008] ACA3#,ALA30 |
53289-42010 |
from US $146.88 |
||
|
53293C
|
53293C
53293-42050 Deflector, Radiator Side, RhRADIATOR SIDE, RH [11.2005 - 08.2008] ACA38,GSA33;ACA33..LHD..X;ACA33..G..GEN |
53293-42050 |
US $42.26 |
||
|
53293C
|
53293C
53293-42080 Deflector, Radiator Side, RhRADIATOR SIDE, RH [08.2008 - 12.2012] GSA33;ACA33,38..GCC,GEN |
53293-42080 |
US $47.91 |
||
|
53294C
|
53294C
53294-42030 Deflector, Radiator Side, LhRADIATOR SIDE, LH [11.2005 - 08.2008] ACA38,GSA33;ACA33..LHD..X;ACA33..G..GEN |
53294-42030 |
US $45.61 |
||
|
53294C
|
53294C
53294-42050 Deflector, Radiator Side, LhRADIATOR SIDE, LH [08.2008 - 12.2012] GSA33;ACA33,38..GCC,GEN |
53294-42050 |
US $56.28 |
||
|
53701
|
53701
53701-42140 Apron Sub-Assy, Front Fender, Rh[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
53701-42140 |
US $334.88 |
||
|
53702
|
53702
53702-42150 Apron Sub-Assy, Front Fender, Lh[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
53702-42150 |
US $334.88 |
||
|
53705E
|
53705E
53705-42010 Member Sub-Assy, Front Apron To Cowl Side, Rh[11.2005 - 12.2005] ACA3#,ALA30 |
53705-42010 |
US $96.10 |
||
| replacement | |||||
|
53705E
|
53705E
53705-42012 Member Sub-Assy, Front Apron To Cowl Side, Rh[11.2005 - 12.2005] ACA3#,ALA30 |
53705-42012 |
from US $65.96 |
||
|
53705E
|
53705E
53705-42011 Member Sub-Assy, Front Apron To Cowl Side, Rh[01.2006 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53705-42011 |
US $80.08 |
||
| replacement | |||||
|
53705E
|
53705E
53705-42012 Member Sub-Assy, Front Apron To Cowl Side, Rh[01.2006 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53705-42012 |
from US $65.96 |
||
|
53706D
|
53706D
53706-42010 Member Sub-Assy, Front Apron To Cowl Side, Lh[11.2005 - 12.2005] ACA3#,ALA30 |
53706-42010 |
US $94.64 |
||
| replacement | |||||
|
53706D
|
53706D
53706-42012 Member Sub-Assy, Front Apron To Cowl Side, Lh[11.2005 - 12.2005] ACA3#,ALA30 |
53706-42012 |
US $65.37 |
||
|
53706D
|
53706D
53706-42011 Member Sub-Assy, Front Apron To Cowl Side, Lh[01.2006 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53706-42011 |
US $78.62 |
||
| replacement | |||||
|
53706D
|
53706D
53706-42012 Member Sub-Assy, Front Apron To Cowl Side, Lh[01.2006 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53706-42012 |
US $65.37 |
||
|
53707E
|
53707E
53707-42010 Apron Sub-Assy, Fender Side, Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53707-42010 |
US $44.26 |
||
|
53708D
|
53708D
53708-42010 Apron Sub-Assy, Fender Side, Lh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53708-42010 |
US $48.64 |
||
|
53713C
|
53713C
53713-42040 Extension, Front Fender Apron, Front Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53713-42040 |
US $28.06 |
||
|
53714C
|
53714C
53714-42040 Extension, Front Fender Apron, Front Lh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53714-42040 |
US $18.20 |
||
| replacement | |||||
|
53714C
|
53714C
53714-42041 Extension, Front Fender Apron, Front Lh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53714-42041 |
US $27.22 |
||
|
53715E
|
53715E
53715-42010 Extension, Front Fender Apron, Rear Rh[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
53715-42010 |
US $3.64 |
||
|
53716E
|
53716E
53715-42010 Extension, Front Fender Apron, Rear Rh[11.2005 - 12.2008] ACA3#,ALA30,GSA33 |
53715-42010 |
US $3.64 |
||
|
53743B
|
53743B
53743-42020 Reinforcement, Front Fender Apron, Front Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53743-42020 |
US $7.43 |
||
|
53744B
|
53744B
53744-42010 Reinforcement, Front Fender Apron, Front Lh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53744-42010 |
US $7.43 |
||
|
53747A
|
53747A
53747-42010 Extension, Apron Fender Side, Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53747-42010 |
US $4.08 |
||
|
53748A
|
53748A
53748-42010 Extension, Apron Fender Side, Lh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53748-42010 |
US $4.08 |
||
|
53813C
|
53813C
53813-42020 Extension, Front Fender, Rh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53813-42020 |
from US $22.16 |
||
|
53814C
|
53814C
53814-42020 Extension, Front Fender, Lh[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53814-42020 |
from US $22 |
||
|
53882G
|
53882G
53882-30040 Seal, Radiator Support, Upper[11.2005 - 08.2008] ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
53882-30040 |
US $1.10 |
||
|
55101
|
55101
55101-42440
Panel Sub-Assy, Dash
[11.2005 - 12.2008] ACA30,33,38,ALA30..LHD..MTM |
55101-42440 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-42450 Panel Sub-Assy, DashDASH [11.2005 - 12.2008] ACA30,33,38,ALA30..LHD..MTM |
55101-42450 |
US $321.78 |
||
|
55210
|
55210
55210-42120
Insulator Assy, Dash Panel
[11.2005 - 07.2008] ACA3#,ALA30..LHD |
55210-42120 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-42160
Insulator Assy, Dash Panel
[11.2005 - 07.2008] ACA3#,ALA30..LHD |
55210-42160 |
— | ||
|
55210
|
55210
55210-42160
Insulator Assy, Dash Panel
[08.2008 - 12.2012] ACA30,33,38,ALA3#,ZSA3#..LHD |
55210-42160 |
— | ||
|
55223A
|
55223A
55223-42050
Insulator, Dash Panel, Outer
[11.2005 - 08.2008] ACA38;ACA33..LHD..X;ACA33..G..GEN |
55223-42050 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-42051
Insulator, Dash Panel, Outer
[11.2005 - 08.2008] ACA38;ACA33..LHD..X;ACA33..G..GEN |
55223-42051 |
— | ||
|
55223A
|
55223A
55223-42051
Insulator, Dash Panel, Outer
[05.2012 - 12.2012] ACA3#,ALA3#,ZSA3#..LHD |
55223-42051 |
— | ||
|
9011908B13
|
9011908B13
90119-08B13 BOLT WWASHER |
90119-08B13 |
US $1.61 |
||
|
9010908307
|
9010908307
90109-08307 New Genuine Part |
90109-08307 |
US $1.43 |
||
|
9046710170C0
|
9046710170C0
90467-10170-C0 Clip(For Front Fender Apron Seal) |
90467-10170-C0 |
from US $0.92 |
||
|
9054115004
|
9054115004
90541-15004 Cushion, Hood Bumper |
90541-15004 |
from US $2.76 |
||
|
9054115019
|
9054115019
90541-15019 Cushion, Hood Bumper |
90541-15019 |
from US $3.37 |
||
