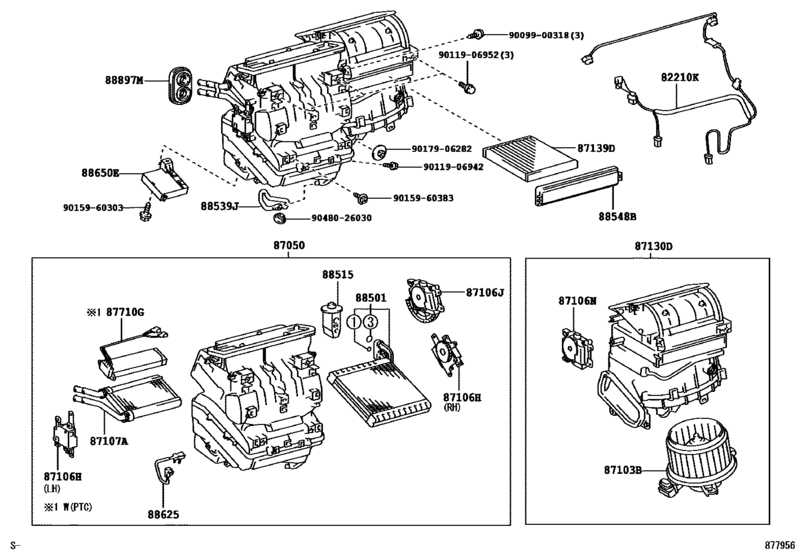

Heating & Air Conditioning - Cooler Unit ([11.2005 - ] AUTO AIR CONDITIONER (0511- )LHD..G) Diagram Toyota RAV4/VANGUARD
- Year
- 2010 - 2012
- Sales region
- Europe
- Frame
- ACA38
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RAV4
- From
- 03.2010
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-12030
Harness Assy, Air Conditioner
[08.2008 - 12.2012] ACA30,33,38,ALA3#,ZSA3#..LHD..G |
82212-12030 |
— | ||
|
87050
|
87050
87050-12410
Radiator Assy, Air Conditioner
[08.2008 - 12.2012] ACA30,33,38,ZSA3#..LHD..G |
87050-12410 |
— | ||
|
87103B
|
87103B
87103-42101 Motor Sub-Assy, Blower W/fanBLOWER W/FAN [08.2008 - 12.2012] ACA30,33,38,ALA3#,ZSA3#..LHD..G |
87103-42101 |
US $256.09 |
||
|
87106H
|
87106H
87106-12170 Damper Servo Sub-Assy, Air Conditioner Radiator, No.1[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3#..G RH; ACA33,38..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),RH |
87106-12170 |
US $126.59 |
||
|
87106H
|
87106H
87106-42090
Damper Servo Sub-Assy, Air Conditioner Radiator, No.2
[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3#..G LH; ACA33,38..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),LH |
87106-42090 |
— | ||
| replacement | |||||
|
87106H
|
87106H
87106-75010 Damper Servo Sub-Assy, Air Conditioner Radiator, No.2[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3#..G LH; ACA33,38..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),LH |
87106-75010 |
from US $115.32 |
||
|
87106J
|
87106J
87106-42100 Damper Servo Sub-Assy, Air Conditioner Radiator, No.2[08.2008 - 12.2012] ALA35..G..ATYPE;ALA35..G..DCRE..BTYPE;ACA30,33,38,ALA30,GSA33,ZSA3#..G; ACA33,38..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
87106-42100 |
from US $89.11 |
||
|
87106N
|
87106N
87106-42140 Servo Sub-Assy, Damper(For Recirculation)DAMPER(FOR RECIRCULATION) [08.2008 - 12.2011] ACA30,33,38,ALA3#,ZSA3#..LHD..G |
87106-42140 |
US $115.07 |
||
|
87106N
|
87106N
87106-47130 Servo Sub-Assy, Damper(For Recirculation)DAMPER(FOR RECIRCULATION) [12.2011 - 12.2012] ACA3#,ALA3#,ZSA3#..LHD..G |
87106-47130 |
US $112.44 |
||
|
87107A
|
87107A
87107-42170 Unit Sub-Assy, Heater Radiator[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
87107-42170 |
US $394.17 |
||
|
87130D
|
87130D
87130-12571
Blower Assy
[08.2008 - 12.2012] ACA30,33,38,ZSA3#..LHD..G |
87130-12571 |
— | ||
|
87139D
|
87139D
87139-52020 Filter, Clean Air[08.2008 - 12.2012] ACA33,38,GSA33..ARL,GCC,GEN |
87139-52020 |
from US $33.60 |
||
|
88501
|
88501
88501-26211 Evaporator Sub-Assy, Cooler, No.1[08.2008 - 09.2010] ACA30,33,38,ALA3#,GSA33,ZSA3# |
88501-26211 |
from US $405.35 |
||
|
88501
|
88501
88501-72020 Evaporator Sub-Assy, Cooler, No.1COOLER, NO.1 [10.2010 - 12.2012] ACA3#,ALA3#,GSA33,ZSA3# |
88501-72020 |
US $448.91 |
||
|
88515
|
88515
88515-12100 Valve, Cooler Expansion[10.2010 - 12.2012] ALA3#;ACA3#,ZSA3#..LHD..G; GSA33;ACA3#,ZSA3#..RHD..G |
88515-12100 |
from US $106.41 |
||
|
88515
|
88515
88515-26070 Valve, Cooler Expansion[02.2009 - 09.2010] ALA3#;ZSA35..X..ATYPE;ACA3#,ZSA3#..LHD..G;ZSA30..RHD..X..ATYPE;ZSA30..LHD..6F..X.. ATYPE |
88515-26070 |
from US $99.45 |
||
|
88539J
|
88539J
88539-42060
Hose, Drain Cooler
[08.2008 - 08.2012] ACA30,33,38,ALA3#,ZSA3#..LHD |
88539-42060 |
— | ||
| replacement | |||||
|
88539J
|
88539J
88539-42061
Hose, Drain Cooler
[08.2008 - 08.2012] ACA30,33,38,ALA3#,ZSA3#..LHD |
88539-42061 |
— | ||
|
88539J
|
88539J
88539-42061
Hose, Drain Cooler
[09.2012 - 12.2012] ACA3#,ALA3#,ZSA3#..LHD |
88539-42061 |
— | ||
|
88548B
|
88548B
88548-42020
Case, Air Filter
[08.2008 - 12.2012] ACA30,33,38,ALA3#,ZSA3#..LHD |
88548-42020 |
— | ||
|
88625
|
88625
88625-26090 Thermistor, Cooler, No.1[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
88625-26090 |
from US $8.04 |
||
| replacement | |||||
|
88625
|
88625
88620-02110 Thermistor, Cooler, No.1COOLER, NO.1 [08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
88620-02110 |
US $10.20 |
||
|
88650E
|
88650E
88650-42340
Amplifier Assy, Air Conditioner, No.1
[08.2008 - 12.2012] ACA30,33,38,ZSA3#..G; ACA33,38..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
88650-42340 |
— | ||
|
88897M
|
88897M
87128-42010
Grommet (For Heater Pipe)
[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
87128-42010 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.66 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $1.08 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.82 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9048026030
|
9048026030
90480-26030 Grommet (For Cooler Unit Drain Hose) |
90480-26030 |
US $2.13 |
||
