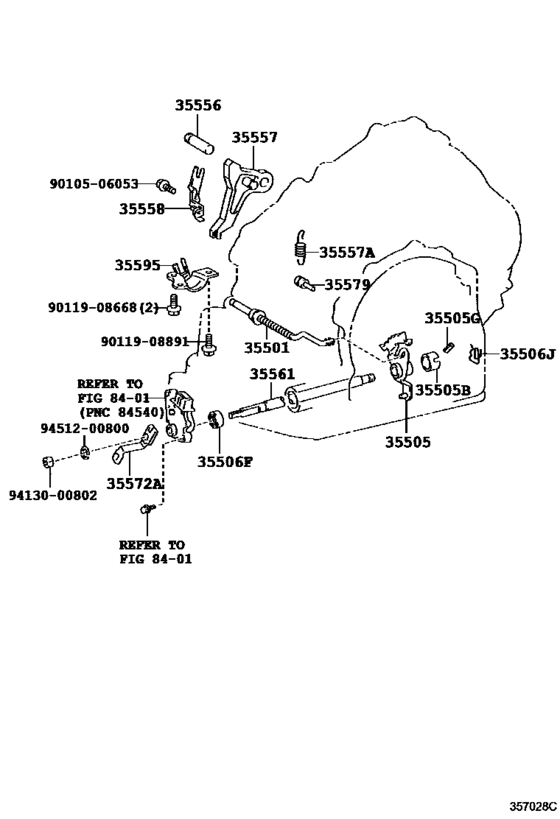

Throttle Link & Valve Lever (Atm) ([11.2005 - ] U140F,U241E,U151F (0511- )ACA3#,GSA33..ATM) Diagram Toyota RAV4/VANGUARD
- Year
- 2010 - 2012
- Sales region
- Europe
- Frame
- ACA38
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RAV4
- From
- 03.2010
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-21010 Rod Sub-Assy, Parking Lock[08.2008 - 12.2012] ACA30,33,38,GSA33..ATM |
35501-21010 |
US $17.47 |
||
|
35505
|
35505
35505-21010 Lever Sub-Assy, Manual Valve[08.2008 - 12.2012] ACA30,33,38,GSA33..ATM |
35505-21010 |
US $17.76 |
||
|
35505B
|
35505B
90560-20006 Spacer (For Manual Valve Lever)[08.2008 - 12.2012] ACA30,33,38,GSA33..ATM |
90560-20006 |
from US $2.77 |
||
|
35505G
|
35505G
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[08.2008 - 12.2012] ACA30,33,38,GSA33..ATM |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[08.2008 - 12.2012] ACA30,33,38,ALA30,GSA33..ATM |
90311-12002 |
from US $4.04 |
||
|
35506J
|
35506J
90524-09001 Spring, Retainer (For Manual Valve Lever Shaft)[08.2008 - 12.2012] ACA30,33,38,GSA33..ATM |
90524-09001 |
US $1.89 |
||
|
35556
|
35556
35556-28020 Shaft, Parking Lock Pawl[08.2008 - 12.2012] ACA38..4FC |
35556-28020 |
US $5.97 |
||
|
35557
|
35557
35590-32010 Pawl, Parking Lock[08.2008 - 12.2012] ACA38..4FC |
35590-32010 |
US $41.64 |
||
|
35557A
|
35557A
90506-18077 Spring, Torsion (For Parking Lock Pawl)[08.2008 - 12.2012] ACA30,33,38,GSA33..ATM |
90506-18077 |
US $1.31 |
||
|
35558
|
35558
35558-28020 Clamp, Pawl Shaft[08.2008 - 12.2012] ACA38..4FC |
35558-28020 |
US $3.35 |
||
|
35561
|
35561
35561-21010 Shaft, Manual Valve Lever[08.2008 - 12.2012] ACA30,33,38,GSA33..ATM |
35561-21010 |
US $26.91 |
||
|
35572A
|
35572A
35572-42020 Lever, Transmission Control Shaft[08.2008 - 12.2012] ACA30,33,38,GSA33..ATM |
35572-42020 |
US $9.17 |
||
|
35579
|
35579
35594-28010 Pin, Parking Lock Pawl[08.2008 - 12.2012] ACA30,33,38,GSA33..ATM |
35594-28010 |
US $2.91 |
||
|
35595
|
35595
35595-21010 Bracket, Parking Lock Pawl[08.2008 - 12.2012] ACA30,33,38,GSA33..ATM |
35595-21010 |
from US $15.14 |
||
|
9010506053
|
9010506053
90105-06053 Bolt(For Sensor Rotor Adapter) |
90105-06053 |
US $1.25 |
||
|
9011908668
|
9011908668
90119-08668 New Genuine Part |
90119-08668 |
US $1.79 |
||
|
9011908891
|
9011908891
90119-08891 BOLT |
90119-08891 |
US $2.15 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
