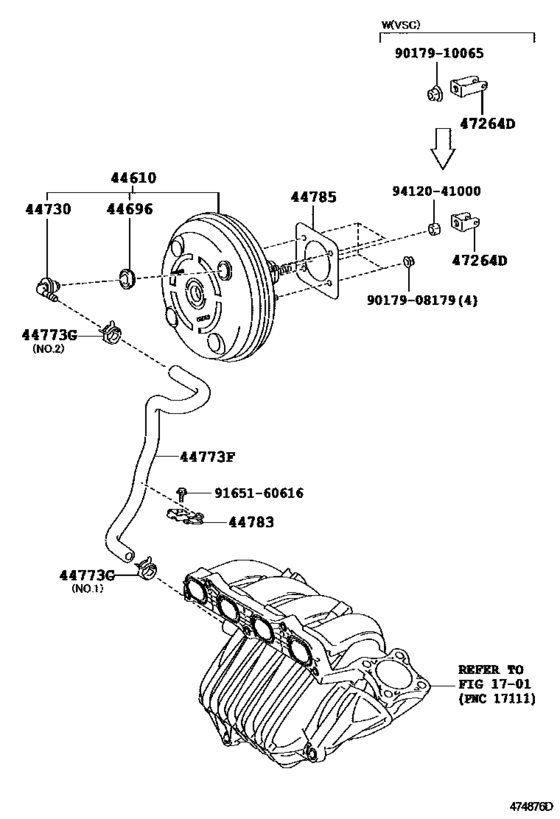

Brake Booster & Vacuum Tube ([11.2005 - ] (0511- )ACA30,33,38..RHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2010 - 2012
- Sales region
- Europe
- Frame
- ACA38
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 03.2010
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-42311 Booster Assy, Brake[08.2008 - 12.2012] ACA30,GSA33..RHD;ACA33,38..G..ARL; ACA33,38..X..ARL VSC-WITH |
44610-42311 |
US $732.37 |
||
|
44696
|
44696
90480-24439 Grommet, Check Valve[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
90480-24439 |
from US $2.57 |
||
|
44730
|
44730
44730-12070 Valve Assy, Vacuum Check(For Brake)[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
44730-12070 |
from US $26.42 |
||
|
44773F
|
44773F
44773-42140 Hose, Union To Check Valve[08.2008 - 12.2012] ACA30,33,38..RHD |
44773-42140 |
US $24.32 |
||
|
44773G
|
44773G
90467-16014 Clip(For Vacuum Hose)[08.2008 - 12.2012] ACA30,33,38,ALA3#,ZSA3#..RHD NO.2 |
90467-16014 |
US $4.12 |
||
|
44773G
|
44773G
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.2008 - 12.2012] ACA30,33,38,ALA3#,ZSA3#..RHD NO.1 |
96133-41500 |
from US $2.32 |
||
|
44783
|
44783
44783-44010 Clamp, Vacuum Hose[08.2008 - 12.2012] ACA30,33,38 |
44783-44010 |
US $2.62 |
||
|
44785
|
44785
44785-12040 Gasket, Brake Booster[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
44785-12040 |
from US $3.06 |
||
|
47264D
|
47264D
47264-30060 Clevis, Master Cylinder Push Rod[08.2008 - 12.2012] ACA33,38..G..(ARL,EUR);ACA30,ALA3#,GSA33,ZSA3#; ACA33,38..X..ARL;ACA33,38..G..GCC VSC-WITH |
47264-30060 |
US $4.22 |
||
|
9017908179
|
9017908179
90179-08179 New Genuine Part |
90179-08179 |
US $3.58 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
