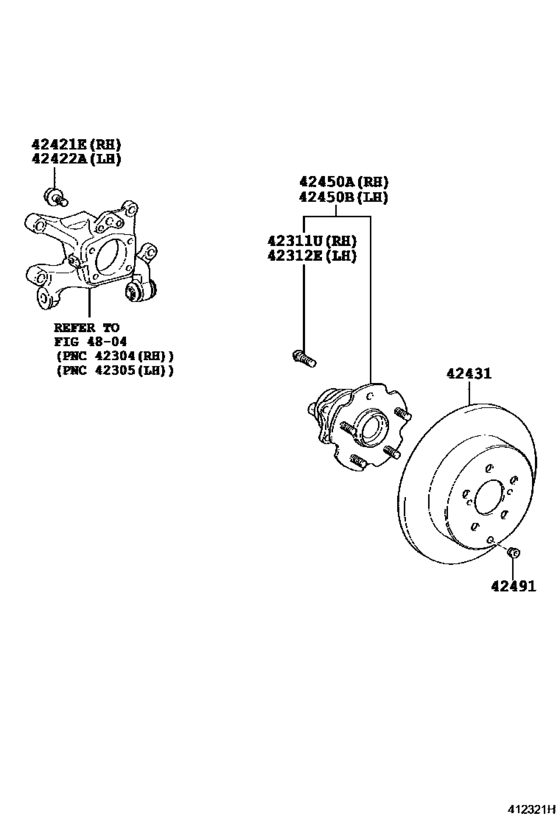

Rear Axle Shaft & Hub ([11.2005 - ] (0511- )ACA38,ALA35,ZSA35) Diagram Toyota RAV4/VANGUARD
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- ACA38
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- RAV4
- From
- 03.2010
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311U
|
42311U
90942-02049 Bolt, Hub[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
42311U
|
42311U
90942-02082 Bolt, Hub[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
90942-02082 |
from US $2.32 |
||
|
42312E
|
42312E
90942-02049 Bolt, Hub[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
42312E
|
42312E
90942-02082 Bolt, Hub[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
90942-02082 |
from US $2.32 |
||
|
42421E
|
42421E
90105-12350 Bolt (For Rear Axle Bearing Case Rh)[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
90105-12350 |
from US $1.27 |
||
|
42422A
|
42422A
90105-12350 Bolt (For Rear Axle Bearing Case Rh)[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
90105-12350 |
from US $1.27 |
||
|
42431
|
42431
42431-42060 Disc, Rear[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
42431-42060 |
from US $147.60 |
||
|
42450A
|
42450A
42450-42040 Hub & Bearing Assy, Rear Axle[08.2008 - 12.2012] ACA38,ALA35,ZSA35 |
42450-42040 |
from US $319.35 |
||
|
42450B
|
42450B
42450-42040 Hub & Bearing Assy, Rear Axle[08.2008 - 12.2012] ACA38,ALA35,ZSA35 |
42450-42040 |
from US $319.35 |
||
|
42491
|
42491
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[08.2008 - 12.2012] ACA30,33,38,ALA3#,GSA33,ZSA3# |
47491-22020 |
from US $1.77 |
||
