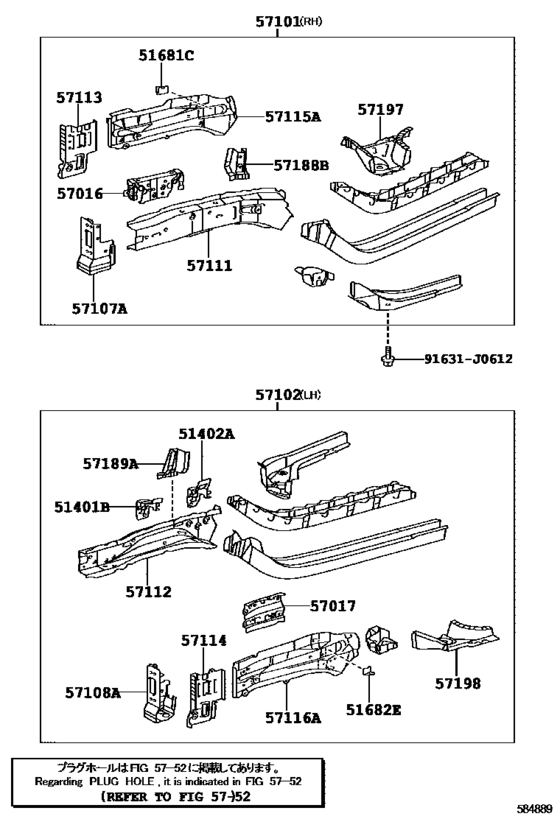

Front Floor Panel & Front Floor Member ([02.2010 - 01.2014] (0808-1401)ACA31,36 ; (1002-1401)ACA33,38,GSA33) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2013
- Sales region
- Japan
- Frame
- ACA38
- grade
- 240S
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- Model
- VANGUARD
- From
- 08.2008
- To
- 11.2013
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- VANGUARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51401B
|
51401B
51401-42010 Bracket Sub-Assy, Engine Front Mounting[11.2005 - 02.2010] ACA33,38,GSA33 |
51401-42010 |
US $25.63 |
||
|
51401B
|
51401B
51401-42020 Bracket Sub-Assy, Engine Front Mounting[08.2013 - 11.2013] ACA33,38 |
51401-42020 |
US $31.30 |
||
|
51402A
|
51402A
51402-42010 Bracket Sub-Assy, Engine Front Mounting, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
51402-42010 |
US $25.63 |
||
|
51681C
|
51681C
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
51681-12080 |
US $8.01 |
||
|
51682E
|
51682E
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
51682-12080 |
US $8.01 |
||
|
57016
|
57016
57016-12110 Reinforcement Sub-Assy, Front Side Member, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57016-12110 |
US $44.69 |
||
|
57017
|
57017
57017-12070 Reinforcement Sub-Assy, Front Side Member, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57017-12070 |
US $41.34 |
||
|
57101
|
57101
57101-42110 Member Sub-Assy, Front Side, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57101-42110 |
US $764.40 |
||
| replacements | |||||
|
57101
|
57101
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
51681-12080 |
US $8.01 |
||
|
57101
|
57101
57043-42010 Reinforcement Sub-Assy, Front Side Member, Rear Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57043-42010 |
US $106.29 |
||
|
57101
|
57101
57053-42011 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57053-42011 |
US $61.15 |
||
|
57101
|
57101
57111-42900 Member Sub-Assy, Front Side, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57111-42900 |
US $275.18 |
||
|
57101
|
57101
57191-42060 Member, Front Side, Inner Rear Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57191-42060 |
US $160.16 |
||
|
57101
|
57101
57197-42060 Box, Torque, Front Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57197-42060 |
US $46.59 |
||
|
57102
|
57102
57102-42090 Member Sub-Assy, Front Side, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57102-42090 |
US $784.78 |
||
| replacements | |||||
|
57102
|
57102
57112-12906 Member Sub-Assy, Front Side, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57112-12906 |
US $327.60 |
||
|
57102
|
57102
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
51682-12080 |
US $8.01 |
||
|
57102
|
57102
57044-42010 Reinforcement Sub-Assy, Front Side Member, Rear Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57044-42010 |
US $106.29 |
||
|
57102
|
57102
57054-42010 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57054-42010 |
US $74.26 |
||
|
57102
|
57102
57192-42060 Member, Front Side, Inner Rear Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57192-42060 |
US $160.16 |
||
|
57102
|
57102
57198-42060 Box, Torque, Front Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57198-42060 |
US $49.80 |
||
|
57107A
|
57107A
57107-42030 Plate Sub-Assy, Front Side Member, No.2 Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57107-42030 |
US $67.97 |
||
|
57108A
|
57108A
57108-42030 Plate Sub-Assy, Front Side Member, No.2 Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57108-42030 |
US $74.26 |
||
| replacement | |||||
|
57108A
|
57108A
57108-42031 Plate Sub-Assy, Front Side Member, No.2 Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57108-42031 |
from US $67.32 |
||
|
57111
|
57111
57111-12230 Member, Front Side, Rh[05.2007 - 02.2010] ACA33,38,GSA33 |
57111-12230 |
US $109.20 |
||
|
57112
|
57112
57112-12190 Member, Front Side, Lh[05.2007 - 02.2010] ACA33,38,GSA33 |
57112-12190 |
US $109.20 |
||
|
57113
|
57113
57113-42050 Extension, Front Side Member, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57113-42050 |
US $37.84 |
||
|
57114
|
57114
57114-42050 Extension, Front Side Member, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57114-42050 |
US $51.11 |
||
| replacement | |||||
|
57114
|
57114
57114-78010 Extension, Front Side Member, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57114-78010 |
US $37.71 |
||
|
57114
|
57114
57114-42051 Extension, Front Side Member, Lh[06.2011 - 11.2013] ACA33,38,GSA33 |
57114-42051 |
US $42.52 |
||
| replacement | |||||
|
57114
|
57114
57114-78010 Extension, Front Side Member, Lh[06.2011 - 11.2013] ACA33,38,GSA33 |
57114-78010 |
US $37.71 |
||
|
57115A
|
57115A
57115-12090 Plate, Front Side Member, Outer Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57115-12090 |
US $78.62 |
||
| replacement | |||||
|
57115A
|
57115A
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
51681-12080 |
US $8.01 |
||
|
57116A
|
57116A
57116-12090 Plate, Front Side Member, Outer Lh[05.2007 - 02.2010] ACA33,38,GSA33 |
57116-12090 |
US $78.62 |
||
| replacement | |||||
|
57116A
|
57116A
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[05.2007 - 02.2010] ACA33,38,GSA33 |
51682-12080 |
US $8.01 |
||
|
57188B
|
57188B
57188-42030 Gusset, Front Side Member To Spring Support, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57188-42030 |
US $20.09 |
||
|
57189A
|
57189A
57189-42020 Gusset, Front Side Member To Spring Support, Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57189-42020 |
US $19.36 |
||
|
57197
|
57197
57197-42060 Box, Torque, Front Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
57197-42060 |
US $46.59 |
||
|
57198
|
57198
57198-42060 Box, Torque, Front Lh[11.2005 - 02.2010] ACA33,38,GSA33 |
57198-42060 |
US $49.80 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
