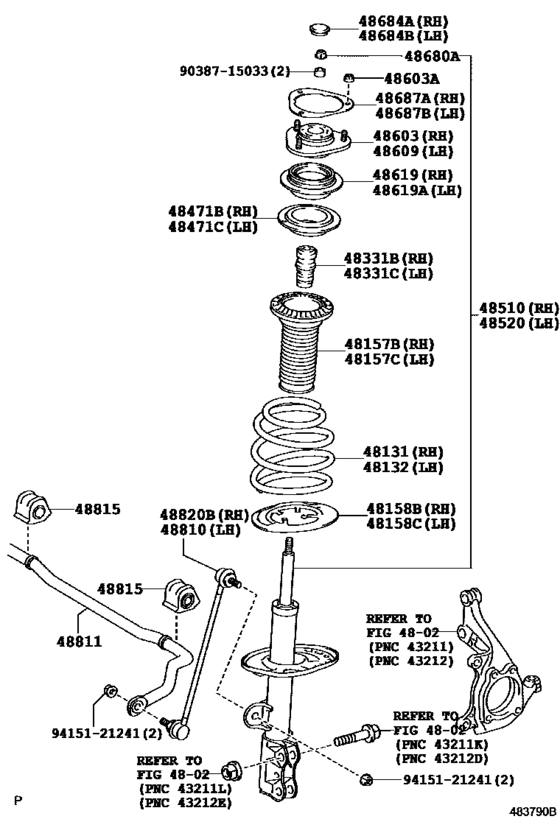

Front Spring & Shock Absorber ([11.2005 - ] (0511- )240S,350S,G,S,X ; (1212-1410)ACA31,36) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2013
- Sales region
- Japan
- Frame
- ACA38
- grade
- 240S
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- Model
- VANGUARD
- From
- 08.2008
- To
- 11.2013
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- VANGUARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-42561 Spring, Front Coil, Rh[05.2007 - 02.2010] ACA33,38 |
48131-42561 |
US $127.55 |
||
|
48131
|
48131
48131-42690 Spring, Front Coil, Rh[12.2012 -] ACA31,36; ACA33,38 |
48131-42690 |
US $70.18 |
||
|
48132
|
48132
48131-42561 Spring, Front Coil, Rh[05.2007 - 02.2010] ACA33,38 |
48131-42561 |
US $127.55 |
||
|
48132
|
48132
48131-42690 Spring, Front Coil, Rh[12.2012 -] ACA31,36; ACA33,38 |
48131-42690 |
US $70.18 |
||
|
48157B
|
48157B
48157-42020 Insulator, Front Coil Spring, Upper[11.2005 - 02.2010] ACA33,38,GSA33 |
48157-42020 |
from US $21.82 |
||
|
48157B
|
48157B
48157-58010 Insulator, Front Coil Spring, Upper[07.2012 -] ACA33,38,GSA33 |
48157-58010 |
from US $26.31 |
||
|
48157C
|
48157C
48157-42020 Insulator, Front Coil Spring, Upper[11.2005 - 02.2010] ACA33,38,GSA33 |
48157-42020 |
from US $21.82 |
||
|
48157C
|
48157C
48157-58010 Insulator, Front Coil Spring, Upper[07.2012 -] ACA33,38,GSA33 |
48157-58010 |
from US $26.31 |
||
|
48158B
|
48158B
48158-21010 Insulator, Front Coil Spring, Lower Rh[07.2012 - 11.2013] ACA31,36; ACA33,38,GSA33 |
48158-21010 |
US $26.14 |
||
|
48158B
|
48158B
48158-42010 Insulator, Front Coil Spring, Lower[11.2005 - 02.2010] ACA33,38,GSA33 |
48158-42010 |
from US $12.60 |
||
|
48158C
|
48158C
48158-21010 Insulator, Front Coil Spring, Lower Rh[07.2012 - 11.2013] ACA31,36; ACA33,38,GSA33 |
48158-21010 |
US $26.14 |
||
|
48158C
|
48158C
48158-42010 Insulator, Front Coil Spring, Lower[11.2005 - 02.2010] ACA33,38,GSA33 |
48158-42010 |
from US $12.60 |
||
|
48331B
|
48331B
48331-42030 Bumper, Front Spring, Rh[11.2005 - 09.2008] ACA33,38,GSA33 |
48331-42030 |
US $14.06 |
||
| replacement | |||||
|
48331B
|
48331B
48331-28090 BUMPER FR SPRING[11.2005 - 09.2008] ACA33,38,GSA33 |
48331-28090 |
from US $13.08 |
||
|
48331B
|
48331B
48331-42060 Bumper, Front Spring, Rh[10.2008 - 02.2010] ACA33,38,GSA33 |
48331-42060 |
US $17.78 |
||
|
48331C
|
48331C
48331-42030 Bumper, Front Spring, Rh[11.2005 - 09.2008] ACA33,38,GSA33 |
48331-42030 |
US $14.06 |
||
| replacement | |||||
|
48331C
|
48331C
48331-28090 BUMPER FR SPRING[11.2005 - 09.2008] ACA33,38,GSA33 |
48331-28090 |
from US $13.08 |
||
|
48331C
|
48331C
48331-42060 Bumper, Front Spring, Rh[10.2008 - 02.2010] ACA33,38,GSA33 |
48331-42060 |
US $17.78 |
||
|
48471B
|
48471B
48471-42010 Seat, Front Coil Spring, Upper[12.2012 -] ACA33,38 |
48471-42010 |
US $15.20 |
||
|
48471C
|
48471C
48471-42010 Seat, Front Coil Spring, Upper[12.2012 -] ACA33,38 |
48471-42010 |
US $15.20 |
||
|
48510
|
48510
48510-80366 Absorber Assy, Shock, Front Rh[06.2007 - 02.2010] ACA33,38,GSA33 マーク ４８５１０−４２３００ |
48510-80366 |
US $295.57 |
||
| replacement | |||||
|
48510
|
48510
48510-80639 Absorber Assy, Shock, Front Rh[06.2007 - 02.2010] ACA33,38,GSA33 マーク ４８５１０−４２３００ |
48510-80639 |
US $369.60 |
||
|
48510
|
48510
48510-80607 Absorber Assy, Shock, Front Rh[12.2012 - 11.2013] ACA33,38 マーク ４８５１０−４２４５０,タイプ Ａ |
48510-80607 |
US $244.61 |
||
| replacements | |||||
|
48510
|
48510
48158-48050 Insulator, Front Coil Spring, Lower Rh[12.2012 - 11.2013] ACA33,38 マーク ４８５１０−４２４５０,タイプ Ａ |
48158-48050 |
from US $17.04 |
||
|
48510
|
48510
48510-80697 Absorber Assy, Shock, Front Rh[12.2012 - 11.2013] ACA33,38 マーク ４８５１０−４２４５０,タイプ Ａ |
48510-80697 |
US $244.61 |
||
|
48510
|
48510
48510-80639 Absorber Assy, Shock, Front Rh[11.2012 - 12.2012] ACA31,36 マーク ４８５１０−４２３０１,タイプ Ａ; ACA33,38,GSA33 マーク ４８５１０−４２３０１,タイプ Ａ |
48510-80639 |
US $369.60 |
||
|
48520
|
48520
48520-80130 Absorber Assy, Shock, Front Lh[06.2007 - 02.2010] ACA33,38,GSA33 マーク ４８５２０−４２３００ |
48520-80130 |
US $295.57 |
||
| replacement | |||||
|
48520
|
48520
48520-80342 Absorber Assy, Shock, Front Lh[06.2007 - 02.2010] ACA33,38,GSA33 マーク ４８５２０−４２３００ |
48520-80342 |
US $369.60 |
||
|
48520
|
48520
48520-80321 Absorber Assy, Shock, Front Lh[12.2012 - 11.2013] ACA33,38 マーク ４８５２０−４２４５０,タイプ Ａ |
48520-80321 |
US $244.61 |
||
| replacements | |||||
|
48520
|
48520
48158-48050 Insulator, Front Coil Spring, Lower Rh[12.2012 - 11.2013] ACA33,38 マーク ４８５２０−４２４５０,タイプ Ａ |
48158-48050 |
from US $17.04 |
||
|
48520
|
48520
48520-80391 Absorber Assy, Shock, Front Lh[12.2012 - 11.2013] ACA33,38 マーク ４８５２０−４２４５０,タイプ Ａ |
48520-80391 |
US $244.61 |
||
|
48520
|
48520
48520-80342 Absorber Assy, Shock, Front Lh[11.2012 - 12.2012] ACA31,36 マーク ４８５２０−４２３０１,タイプ Ａ; ACA33,38,GSA33 マーク ４８５２０−４２３０１,タイプ Ａ |
48520-80342 |
US $369.60 |
||
|
48603
|
48603
48609-42020 Support Sub-Assy, Front Suspension, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
48609-42020 |
from US $78.44 |
||
|
48603
|
48603
48609-42040 Support Sub-Assy, Front Suspension[12.2012 -] ACA31,36; ACA33,38 |
48609-42040 |
from US $78.41 |
||
|
48603A
|
48603A
90178-10030 Nut(For Front Suspension Support)[11.2005 - 02.2010] ACA33,38,GSA33 |
90178-10030 |
from US $0.92 |
||
|
48609
|
48609
48609-42020 Support Sub-Assy, Front Suspension, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
48609-42020 |
from US $78.44 |
||
|
48609
|
48609
48609-42040 Support Sub-Assy, Front Suspension[12.2012 -] ACA31,36; ACA33,38 |
48609-42040 |
from US $78.41 |
||
|
48619
|
48619
48619-28010 Bearing, Strut Mounting[12.2012 -] ACA31,36; ACA33,38 |
48619-28010 |
from US $14.72 |
||
|
48619
|
48619
48619-42010 Bearing, Strut Mounting, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
48619-42010 |
from US $47.56 |
||
|
48619A
|
48619A
48619-28010 Bearing, Strut Mounting[12.2012 -] ACA31,36; ACA33,38 |
48619-28010 |
from US $14.72 |
||
|
48619A
|
48619A
48619-42010 Bearing, Strut Mounting, Rh[11.2005 - 02.2010] ACA33,38,GSA33 |
48619-42010 |
from US $47.56 |
||
|
48680A
|
48680A
90177-14005 Nut(For Front Support To Front Shock Absorber)[11.2005 - 02.2010] ACA33,38,GSA33 |
90177-14005 |
US $1.92 |
||
|
48684A
|
48684A
48684-42020 Cover, Front Suspension Support Dust, Rh[01.2006 - 02.2010] ACA33,38,GSA33 |
48684-42020 |
US $16.11 |
||
|
48684B
|
48684B
48684-42020 Cover, Front Suspension Support Dust, Rh[01.2006 - 02.2010] ACA33,38,GSA33 |
48684-42020 |
US $16.11 |
||
|
48687A
|
48687A
48687-28010 Plate, Front Suspension Support[11.2005 - 02.2010] ACA33,38,GSA33 |
48687-28010 |
from US $4.06 |
||
|
48687B
|
48687B
48687-28010 Plate, Front Suspension Support[11.2005 - 02.2010] ACA33,38,GSA33 |
48687-28010 |
from US $4.06 |
||
|
48810
|
48810
48820-42030 Link Assy, Front Stabilizer[11.2005 - 02.2010] ACA33,38,GSA33 |
48820-42030 |
from US $53.92 |
||
|
48811
|
48811
48811-42070 Bar, Stabilizer, Front[11.2005 - 02.2010] ACA33,38,GSA33 |
48811-42070 |
US $128.13 |
||
| replacement | |||||
|
48811
|
48811
48811-42071 Bar, Stabilizer, Front[11.2005 - 02.2010] ACA33,38,GSA33 |
48811-42071 |
from US $142.14 |
||
|
48811
|
48811
48811-42071 Bar, Stabilizer, Front[04.2012 -] ACA31,36; ACA33,38,GSA33 |
48811-42071 |
from US $142.14 |
||
|
48815
|
48815
48815-42090 Bush, Front Stabilizer Bar, No.1 (LH)[11.2005 - 02.2010] ACA33,38,GSA33 左側 |
48815-42090 |
from US $18.92 |
||
|
48815
|
48815
48815-42100 Bush, Front Stabilizer Bar, No.1, (RH)[11.2005 - 02.2010] ACA33,38,GSA33 右側 |
48815-42100 |
from US $18.92 |
||
|
48815
|
48815
48815-42130 Bush, Front Stabilizer Bar, No.1[12.2012 -] ACA33,38 左側 |
48815-42130 |
from US $19.15 |
||
|
48815
|
48815
48815-42140 Bush, Front Stabilizer Bar, No.1[12.2012 -] ACA33,38 右側 |
48815-42140 |
from US $17.47 |
||
|
48820B
|
48820B
48820-42030 Link Assy, Front Stabilizer[11.2005 - 02.2010] ACA33,38,GSA33 |
48820-42030 |
from US $53.92 |
||
|
9038715033
|
9038715033
90387-15033 COLLAR |
90387-15033 |
from US $3.20 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $1.05 |
||
