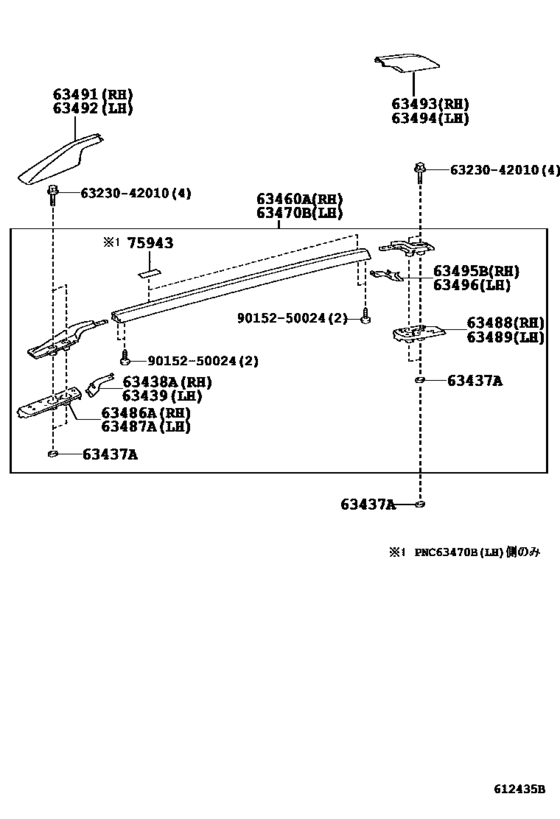

Roof Panel & Back Panel ([11.2005 - ] ﾙｰﾌﾗｯｸ (0511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2013
- Sales region
- Japan
- Frame
- ACA38
- grade
- 240S
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- Model
- VANGUARD
- From
- 08.2008
- To
- 11.2013
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- VANGUARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63437A
|
63437A
63437-42010 Seal, Roof Carrier, No.2[11.2005 - 02.2010] ACA33,38,GSA33 ルーフレール−有り |
63437-42010 |
US $1.31 |
||
|
63438A
|
63438A
63438-42010-B1 Cover, Roof Rack End, No.1[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り,SILVER ME.,070 ,1F7 |
63438-42010-B1 |
US $14.41 |
||
|
63438A
|
63438A
63438-42010-C0 Cover, Roof Rack End, No.1[08.2008 - 02.2010] ACA38 ルーフレール−有り,BLACK,1G3 ,202 ,3R3 ,4T8 ,6T3 ,9AF |
63438-42010-C0 |
US $14.41 |
||
|
63439
|
63439
63439-42010-B1 Cover, Roof Rack End, No.2[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り,SILVER ME.,070 ,1F7 |
63439-42010-B1 |
US $14.41 |
||
|
63439
|
63439
63439-42010-C0 Cover, Roof Rack End, No.2[08.2008 - 02.2010] ACA38 ルーフレール−有り,BLACK,1G3 ,202 ,3R3 ,4T8 ,6T3 ,9AF |
63439-42010-C0 |
US $14.41 |
||
|
63460A
|
63460A
63460-42030-B0 Rack Assy, Roof, Rh[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り,SILVER ME.,070 ,1F7 |
63460-42030-B0 |
US $361.67 |
||
|
63460A
|
63460A
63460-42030-C0 Rack Assy, Roof, Rh[08.2008 - 02.2010] ACA38 ルーフレール−有り,BLACK,1G3 ,202 ,3R3 ,4T8 ,6T3 ,9AF |
63460-42030-C0 |
US $237.33 |
||
|
63470B
|
63470B
63470-42031-B0 Rack Assy, Roof, Lh[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り,SILVER ME.,070 ,1F7 |
63470-42031-B0 |
US $237.33 |
||
|
63470B
|
63470B
63470-42031-C0 Rack Assy, Roof, Lh[08.2008 - 02.2010] ACA38 ルーフレール−有り,BLACK,1G3 ,202 ,3R3 ,4T8 ,6T3 ,9AF |
63470-42031-C0 |
US $237.33 |
||
|
63486A
|
63486A
63486-42030 Cushion, Roof Rack Leg, Front Rh[11.2005 - 02.2010] ACA33,38,GSA33 ルーフレール−有り |
63486-42030 |
US $10.77 |
||
|
63487A
|
63487A
63487-42030 Cushion, Roof Rack Leg, Front Lh[11.2005 - 02.2010] ACA33,38,GSA33 ルーフレール−有り |
63487-42030 |
US $10.77 |
||
|
63488
|
63488
63488-42020
Cushion, Roof Rack Leg, Rear Rh
[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り |
63488-42020 |
— | ||
|
63489
|
63489
63489-42020 Cushion, Roof Rack Leg, Rear Lh[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り |
63489-42020 |
US $9.17 |
||
|
63491
|
63491
63491-42030-B1 Cover, Roof Rack Leg, Front Rh[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り,SILVER ME.,070 ,1F7 |
63491-42030-B1 |
US $48.75 |
||
|
63491
|
63491
63491-42030-C0 Cover, Roof Rack Leg, Front Rh[08.2008 - 02.2010] ACA38 ルーフレール−有り,BLACK,1G3 ,202 ,3R3 ,4T8 ,6T3 ,9AF |
63491-42030-C0 |
US $48.75 |
||
|
63492
|
63492
63492-42030-B1 Cover, Roof Rack Leg, Front Lh[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り,SILVER ME.,070 ,1F7 |
63492-42030-B1 |
from US $34.14 |
||
|
63492
|
63492
63492-42030-C0 Cover, Roof Rack Leg, Front Lh[08.2008 - 02.2010] ACA38 ルーフレール−有り,BLACK,1G3 ,202 ,3R3 ,4T8 ,6T3 ,9AF |
63492-42030-C0 |
from US $41.57 |
||
|
63493
|
63493
63493-42020-B0 Cover, Roof Rack Leg, Rear Rh[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り,SILVER ME.,070 ,1F7 |
63493-42020-B0 |
US $48.22 |
||
|
63493
|
63493
63493-42020-C0 Cover, Roof Rack Leg, Rear Rh[08.2008 - 02.2010] ACA38 ルーフレール−有り,BLACK,1G3 ,202 ,3R3 ,4T8 ,6T3 ,9AF |
63493-42020-C0 |
from US $42.76 |
||
|
63494
|
63494
63494-42020-B0 Cover, Roof Rack Leg, Rear Lh[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り,SILVER ME.,070 ,1F7 |
63494-42020-B0 |
US $48.22 |
||
|
63494
|
63494
63494-42020-C0 Cover, Roof Rack Leg, Rear Lh[08.2008 - 02.2010] ACA38 ルーフレール−有り,BLACK,1G3 ,202 ,3R3 ,4T8 ,6T3 ,9AF |
63494-42020-C0 |
from US $44.25 |
||
|
63495B
|
63495B
63495-42010-B0
Cover, Roof Rack Leg, Center Rh
[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り,SILVER ME.,070 ,1F7 |
63495-42010-B0 |
— | ||
|
63495B
|
63495B
63495-42010-C0 Cover, Roof Rack Leg, Center Rh[08.2008 - 02.2010] ACA38 ルーフレール−有り,BLACK,1G3 ,202 ,3R3 ,4T8 ,6T3 ,9AF |
63495-42010-C0 |
US $10.92 |
||
|
63496
|
63496
63496-42010-B0 Cover, Roof Rack Leg, Center Lh[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り,SILVER ME.,070 ,1F7 |
63496-42010-B0 |
US $10.92 |
||
|
63496
|
63496
63496-42010-C0 Cover, Roof Rack Leg, Center Lh[08.2008 - 02.2010] ACA38 ルーフレール−有り,BLACK,1G3 ,202 ,3R3 ,4T8 ,6T3 ,9AF |
63496-42010-C0 |
US $10.92 |
||
|
75943
|
75943
75943-35020 Stripe, Roof[08.2007 - 02.2010] ACA33,38,GSA33 ルーフレール−有り |
75943-35020 |
US $8.59 |
||
|
6323042010
|
6323042010
63230-42010 Bolt Assy, Removable Roof |
63230-42010 |
from US $5.40 |
||
|
9015250024
|
9015250024
90152-50024 New Genuine Part |
90152-50024 |
US $0.87 |
