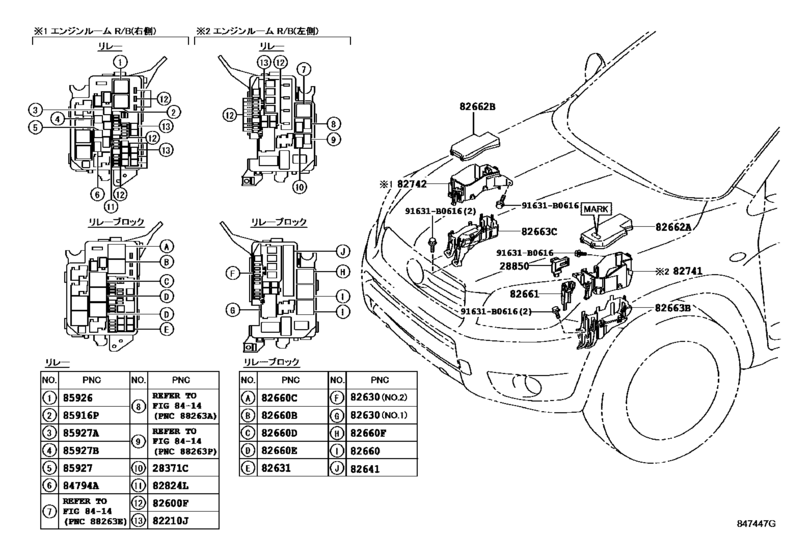

Switch & Relay & Computer ([11.2005 - ] ｴﾝｼﾞﾝﾙｰﾑ (0511- )ACA3#) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2013
- Sales region
- Japan
- Frame
- ACA38
- grade
- 240S
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- Model
- VANGUARD
- From
- 08.2008
- To
- 11.2013
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- VANGUARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371C
|
28371C
90987-02027 Relay[11.2005 - 02.2010] 2AZFE,2GRFE..ACA33,38,GSA33 |
90987-02027 |
from US $31.43 |
||
|
28850
|
28850
28850-28040 Sensor Assy, Battery Current[11.2005 - 02.2010] 2AZFE,2GRFE..ACA33,38,GSA33 |
28850-28040 |
from US $65.19 |
||
|
82210J
|
82210J
90982-08202 Fusible Link[11.2005 - 02.2010] ACA33,38,GSA33 ６０Ａ，オス端子 |
90982-08202 |
US $11.20 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[11.2005 - 02.2010] ACA33,38,GSA33 ８０Ａ，オス端子 |
90982-08203 |
from US $7.36 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[11.2005 - 02.2010] ACA33,38,GSA33 １２０Ａ，オス端子 |
90982-08274 |
from US $7.68 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[11.2005 - 02.2010] ACA3#,GSA33 ３０Ａ，メス端子 |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[11.2005 - 02.2010] ACA33,38,GSA33 ５０Ａ，メス端子 |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[11.2005 - 02.2010] ACA3#,GSA33 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2005 - 02.2010] ACA3#,GSA33 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2005 - 02.2010] ACA3#,GSA33 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2005 - 02.2010] ACA3#,GSA33 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2005 - 02.2010] ACA3#,GSA33 ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2005 - 02.2010] ACA33,38,GSA33 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.96 |
||
|
82630
|
82630
82631-42010 Holder Assy, Fuse[11.2005 - 02.2010] ACA33,38,GSA33 ＮＯ．１ |
82631-42010 |
US $42.08 |
||
|
82630
|
82630
82631-42020 Holder Assy, Fuse[11.2005 - 02.2010] ACA33,38,GSA33 ＮＯ．２ |
82631-42020 |
US $18.20 |
||
|
82631
|
82631
82631-42030 Holder, Fuse[11.2005 - 02.2010] ACA33,38,GSA33 |
82631-42030 |
US $38.73 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[11.2005 - 02.2010] ACA33,38,GSA33 |
82641-47020 |
from US $79.92 |
||
|
82660
|
82660
82660-42030 Block Assy, Relay, Engine Room[11.2005 - 02.2010] ACA33,38 |
82660-42030 |
US $7.13 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[11.2005 - 02.2010] ACA33,38 |
82660-0H070 |
US $6.99 |
||
|
82660C
|
82660C
82660-26270 Block Assy, Relay, Engine Room[11.2005 - 02.2010] ACA33,38 |
82660-26270 |
US $8.48 |
||
|
82660D
|
82660D
82660-42030 Block Assy, Relay, Engine Room[11.2005 - 02.2010] ACA33,38,GSA33 |
82660-42030 |
US $7.13 |
||
|
82660E
|
82660E
82660-52010 Block Assy, Relay[11.2005 - 02.2010] ACA33,38,GSA33 |
82660-52010 |
US $7.13 |
||
|
82660F
|
82660F
82660-0H070 Block Assy, Relay[11.2005 - 02.2010] ACA33,38,GSA33 |
82660-0H070 |
US $6.99 |
||
|
82661
|
82661
82661-42030 Cover, Relay Block, No.1[11.2005 - 02.2010] ACA33,38,GSA33 |
82661-42030 |
US $6.26 |
||
|
82662A
|
82662A
82662-42250 Cover, Relay Block, Upper, No.1[08.2008 - 02.2010] ACA33,38,GSA33 |
82662-42250 |
US $23.59 |
||
|
82662B
|
82662B
82662-42201 Cover, Relay Block, Upper, No.2[04.2007 - 02.2010] ACA33,38 |
82662-42201 |
US $23.44 |
||
|
82663B
|
82663B
82663-42080 Cover, Relay Block, Lower, No.3[11.2005 - 02.2010] ACA33,38,GSA33 |
82663-42080 |
from US $36.55 |
||
|
82663C
|
82663C
82663-42090 Cover, Relay Block Lower, No.4[11.2005 - 02.2010] ACA33,38,GSA33 |
82663-42090 |
US $33.20 |
||
|
82741
|
82741
82741-42010 Block, Engine Room Relay[11.2005 - 02.2010] ACA33,38,GSA33 |
82741-42010 |
from US $62.42 |
||
|
82742
|
82742
82742-42030 Block, Engine Room Relay, No.2[11.2005 - 02.2010] ACA33,38,GSA33 |
82742-42030 |
from US $48.42 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[11.2005 - 02.2010] ACA33,38,GSA33 |
82824-20140 |
US $3.32 |
||
|
84794A
|
84794A
90987-02027 Relay[11.2005 - 02.2010] ACA33,38,GSA33 寒冷地仕様 |
90987-02027 |
from US $31.43 |
||
|
85916P
|
85916P
90987-02025 Relay[11.2005 - 02.2010] ACA33,38,GSA33 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[02.2009 - 02.2010] ACA33,38,GSA33 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[11.2005 - 02.2009] ACA33,38,GSA33 |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-02027 Relay[11.2005 - 02.2010] ACA33,38 |
90987-02027 |
from US $31.43 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[11.2005 - 02.2010] ACA33,38 |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02027 Relay[11.2005 - 02.2010] ACA33,38 |
90987-02027 |
from US $31.43 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.70 |
