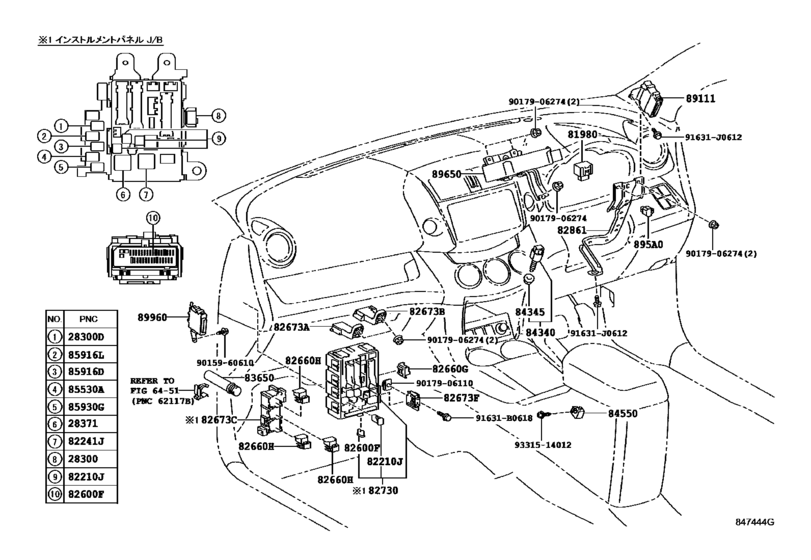

Switch & Relay & Computer ([11.2005 - ] ｶｳﾙ (0511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2013
- Sales region
- Japan
- Frame
- ACA38
- grade
- 240S
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- Model
- VANGUARD
- From
- 08.2008
- To
- 11.2013
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- VANGUARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-46010 Relay Assy, Stop Lamp Control[08.2008 - 11.2008] ACA33,38,GSA33; ACA31,36 |
895A0-46010 |
US $66.25 |
||
| replacement | |||||
|
895A0
|
895A0
895A0-46020 Relay Assy, Stop Lamp Control[08.2008 - 11.2008] ACA33,38,GSA33; ACA31,36 |
895A0-46020 |
US $74.78 |
||
|
895A0
|
895A0
895A0-46020 Relay Assy, Stop Lamp Control[12.2008 - 02.2010] ACA33,38,GSA33 |
895A0-46020 |
US $74.78 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[11.2005 - 02.2010] 2AZFE,2GRFE..ACA33,38,GSA33 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[11.2005 - 02.2010] 2AZFE,2GRFE..ACA33,38,GSA33 |
28300-21020 |
from US $40.58 |
||
|
28300D
|
28300D
90987-02027 Relay[11.2005 - 02.2010] 2AZFE,2GRFE..ACA33,38,GSA33 |
90987-02027 |
from US $31.43 |
||
|
28371
|
28371
90987-02030 Relay, Ignition, No.1[08.2007 - 02.2010] 2AZFE,2GRFE..ACA33,38,GSA33 |
90987-02030 |
from US $44.54 |
||
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[11.2005 - 02.2010] ACA33,38,GSA33 |
81980-46010 |
from US $56.34 |
||
|
82210J
|
82210J
90982-08202 Fusible Link[11.2005 - 02.2010] ACA33,38,GSA33 ６０Ａ，オス端子 |
90982-08202 |
US $11.20 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[11.2005 - 02.2010] ACA33,38,GSA33 ８０Ａ，オス端子 |
90982-08203 |
from US $7.36 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[11.2005 - 02.2010] ACA33,38,GSA33 １２０Ａ，オス端子 |
90982-08274 |
from US $7.68 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[11.2005 - 02.2010] ACA3#,GSA33 ３０Ａ，メス端子 |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[11.2005 - 02.2010] ACA33,38,GSA33 ５０Ａ，メス端子 |
90982-08296 |
from US $6.24 |
||
|
82241J
|
82241J
82241-42010 Pin, Short[11.2005 - 02.2010] ACA33,38,GSA33 |
82241-42010 |
US $4.80 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[11.2005 - 02.2010] ACA3#,GSA33 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2005 - 02.2010] ACA3#,GSA33 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2005 - 02.2010] ACA3#,GSA33 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2005 - 02.2010] ACA3#,GSA33 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2005 - 02.2010] ACA3#,GSA33 ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2005 - 02.2010] ACA33,38,GSA33 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.96 |
||
|
82660G
|
82660G
82660-20340 Block Assy, Relay, Engine Room[11.2005 - 02.2010] ACA33,38,GSA33 |
82660-20340 |
US $5.59 |
||
|
82660H
|
82660H
82660-52010 Block Assy, Relay[11.2005 - 02.2010] ACA33,38,GSA33 |
82660-52010 |
US $7.13 |
||
|
82673A
|
82673A
82673-42140 Bracket, Junction Block[11.2005 - 02.2010] ACA33,38,GSA33 |
82673-42140 |
US $9.61 |
||
|
82673B
|
82673B
82673-42150 Bracket, Junction Block[11.2005 - 02.2010] ACA33,38,GSA33 |
82673-42150 |
US $9.61 |
||
|
82673C
|
82673C
82673-42110 Bracket, Junction Block[11.2005 - 02.2010] ACA33,38,GSA33 |
82673-42110 |
US $15.72 |
||
|
82673F
|
82673F
82673-42130 Bracket, Junction Block[11.2005 - 02.2010] ACA33,38,GSA33 |
82673-42130 |
US $6.99 |
||
|
82730
|
82730
82730-42340 Block Assy, Instrument Panel Junction[08.2007 - 02.2010] ACA33,38,GSA33 |
82730-42340 |
US $624.62 |
||
| replacement | |||||
|
82730
|
82730
82730-42342 Block Assy, Instrument Panel Junction[08.2007 - 02.2010] ACA33,38,GSA33 |
82730-42342 |
US $519.79 |
||
|
82730
|
82730
82730-42341 Block Assy, Instrument Panel Junction[12.2010 - 05.2012] ACA33,38,GSA33 |
82730-42341 |
US $624.62 |
||
| replacement | |||||
|
82730
|
82730
82730-42342 Block Assy, Instrument Panel Junction[12.2010 - 05.2012] ACA33,38,GSA33 |
82730-42342 |
US $519.79 |
||
|
82730
|
82730
82730-42342 Block Assy, Instrument Panel Junction[06.2012 - 11.2013] ACA33,38,GSA33 |
82730-42342 |
US $519.79 |
||
|
82861
|
82861
82861-42030 Bracket, Computer Integration, No.1[11.2005 - 02.2010] ACA33,38,GSA33 |
82861-42030 |
US $26.64 |
||
|
83650
|
83650
90986-01005
Fusee
[11.2005 - 02.2010] ACA33,38,GSA33 |
90986-01005 |
— | ||
|
84340
|
84340
84340-69075 Switch Assy, Stop Lamp[08.2008 - 02.2010] ACA33,38,GSA33 |
84340-69075 |
from US $36.23 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[11.2005 - 02.2010] ACA33,38,GSA33 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[11.2005 - 02.2010] ACA33,38,GSA33 |
84550-16060 |
from US $17.48 |
||
|
85530A
|
85530A
90987-02027 Relay[11.2005 - 02.2010] ACA33,38,GSA33 |
90987-02027 |
from US $31.43 |
||
|
85916D
|
85916D
90987-02027 Relay[11.2005 - 02.2010] ACA33,38,GSA33 |
90987-02027 |
from US $31.43 |
||
|
85916L
|
85916L
90987-02027 Relay[08.2007 - 02.2010] ACA33,38,GSA33 リヤフォグランプ−有り |
90987-02027 |
from US $31.43 |
||
|
85930G
|
85930G
90987-02027 Relay[11.2005 - 02.2010] ACA33,38,GSA33 |
90987-02027 |
from US $31.43 |
||
|
89111
|
89111
89111-42010 Computer, Network Gateway[08.2007 - 02.2010] ACA33,38,GSA33 オーディオ−有り（ナビゲーション） |
89111-42010 |
US $451.36 |
||
|
89650
|
89650
89650-42050 Computer Assy, Power Steering[08.2007 - 02.2010] ACA33,38,GSA33 |
89650-42050 |
US $553.28 |
||
|
89650
|
89650
89650-42051 Computer Assy, Power Steering[12.2012 -] ACA33,38 |
89650-42051 |
US $460.10 |
||
|
89960
|
89960
89960-42080 Computer Assy, Headlamp Leveling[08.2007 - 02.2010] ACA33,38,GSA33..07S |
89960-42080 |
US $358.18 |
||
|
89960
|
89960
89960-42130 Computer Assy, Headlamp Leveling[12.2012 -] ACA33,38..07S |
89960-42130 |
US $298.48 |
||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.86 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9015960610
|
9015960610
90159-60610 New Genuine Part |
90159-60610 |
US $0.73 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
