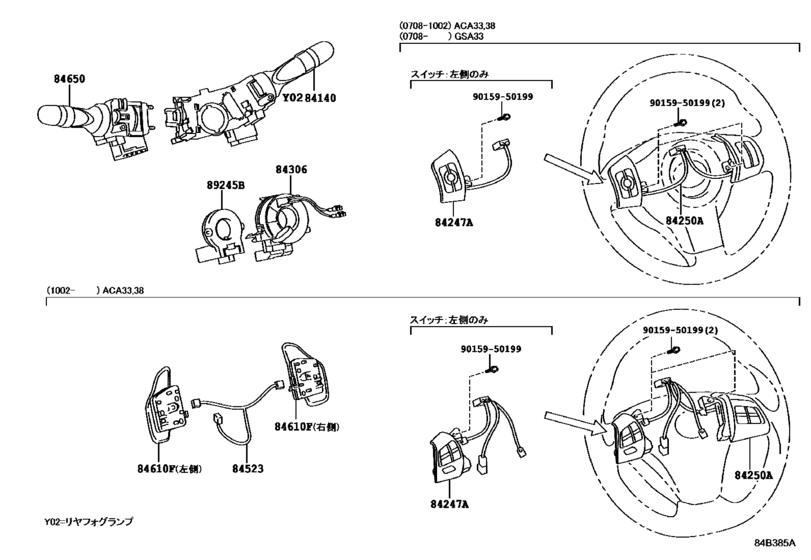

Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0708- )240S,350S,STYLE) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2013
- Sales region
- Japan
- Frame
- ACA38
- grade
- 240S
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- Model
- VANGUARD
- From
- 08.2008
- To
- 11.2013
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- VANGUARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-42040 Switch Assy, Headlamp Dimmer[02.2010 -] ACA33,38 |
84140-42040 |
US $112.48 |
||
|
84140
|
84140
84140-42060 Switch Assy, Headlamp Dimmer[02.2010 -] ACA33,38 リヤフォグランプ−有り |
84140-42060 |
US $99.59 |
||
|
84140
|
84140
84140-42070 Switch Assy, Headlamp Dimmer[11.2005 - 02.2010] ACA33,38,GSA33 |
84140-42070 |
US $103.60 |
||
|
84140
|
84140
84140-42080 Switch Assy, Headlamp Dimmer[08.2007 - 02.2010] ACA33,38,GSA33 リヤフォグランプ−有り |
84140-42080 |
US $103.60 |
||
|
84247A
|
84247A
84247-42050-B0 Switch, Steering Pad, LhSTEERING PAD, LH [02.2010 - 11.2013] ACA33,38 GRAY,TRIM1# |
84247-42050-B0 |
US $122.30 |
||
|
84247A
|
84247A
84247-42050-E0 Switch, Steering Pad, LhSTEERING PAD, LH [02.2010 - 11.2013] ACA33,38 BROWN,TRIM4# |
84247-42050-E0 |
US $122.30 |
||
|
84250A
|
84250A
84250-42080-B0 Switch Assy, Steering Pad[08.2008 - 02.2010] ACA33,38,GSA33 オーディオ−有り（ナビゲーション）,GRAY,TRIM1# |
84250-42080-B0 |
US $154.04 |
||
|
84250A
|
84250A
84250-42080-E0 Switch Assy, Steering Pad[08.2008 - 02.2010] ACA33,38,GSA33 オーディオ−有り（ナビゲーション）,BROWN,TRIM4# |
84250-42080-E0 |
US $164.53 |
||
|
84250A
|
84250A
84250-42100-B0 Switch Assy, Steering PadSTEERING PAD [02.2010 - 12.2012] ACA33,38 オーディオ−有り（ナビゲーション）,GRAY,TRIM1# |
84250-42100-B0 |
US $136.86 |
||
|
84250A
|
84250A
84250-42100-E0 Switch Assy, Steering PadSTEERING PAD [02.2010 - 12.2012] ACA33,38 オーディオ−有り（ナビゲーション）,BROWN,TRIM4# |
84250-42100-E0 |
US $136.86 |
||
|
84306
|
84306
84306-22010 Cable Sub-Assy, Spiral[11.2005 - 02.2010] ACA33,38,GSA33 |
84306-22010 |
from US $169.55 |
||
|
84306
|
84306
84306-48030
Cable Sub-Assy, Spiral
[08.2007 - 02.2010] ACA33,38,GSA33 オーディオ−有り（ナビゲーション） |
84306-48030 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[08.2007 - 02.2010] ACA33,38,GSA33 オーディオ−有り（ナビゲーション） |
84306-48031 |
from US $154.19 |
||
|
84523
|
84523
84523-42010 Wire, Switch No.1SWITCH NO.1 [02.2010 - 11.2013] ACA33,38 |
84523-42010 |
US $14.50 |
||
|
84610F
|
84610F
84610-42010 Switch Assy, Transmission ShiftTRANSMISSION SHIFT [02.2010 - 11.2013] ACA33,38 左側 |
84610-42010 |
US $38.73 |
||
|
84610F
|
84610F
84610-42020 Switch Assy, Transmission ShiftTRANSMISSION SHIFT [02.2010 - 11.2013] ACA33,38 右側 |
84610-42020 |
US $38.73 |
||
|
84650
|
84650
84652-42130
Switch Assy, Windshield Wiper
[11.2005 - 02.2010] ACA33,38,GSA33 |
84652-42130 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-42132 Switch Assy, Windshield Wiper[11.2005 - 02.2010] ACA33,38,GSA33 |
84652-42132 |
US $118.40 |
||
|
89245B
|
89245B
89245-12020
Sensor, Steering
[08.2008 - 02.2010] ACA33,38,GSA33 |
89245-12020 |
— | ||
| replacement | |||||
|
89245B
|
89245B
89245-37010 Sensor, Steering[08.2008 - 02.2010] ACA33,38,GSA33 |
89245-37010 |
US $194.40 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
