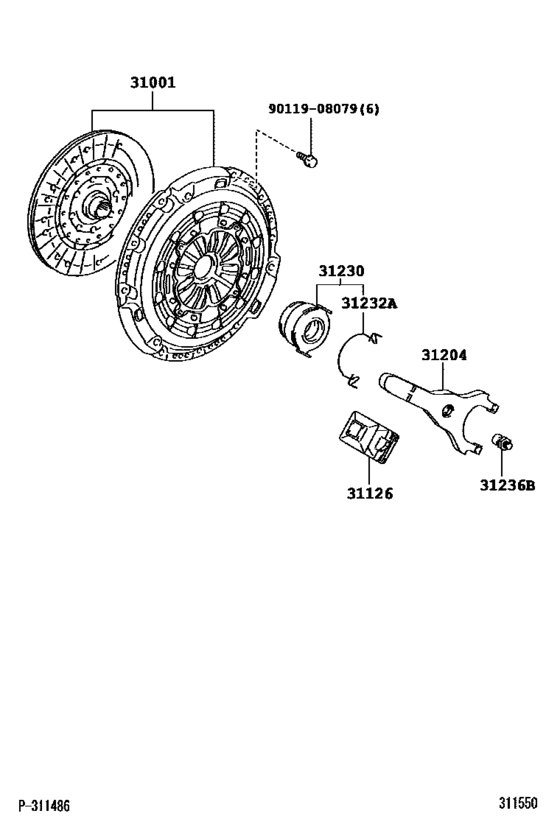

Clutch & Release Fork ([11.2005 - ] (0511- )ALA3#..6F) Diagram Toyota RAV4/VANGUARD
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- ALA35
- grade
- G
- ENGINE
- 2ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 02.2010
- To
- 12.2012
- Gear Shift Type
- 6F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- DCRE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31001
|
31001
31001-0W051
Clutch Set, Cover & Disc
[12.2008 - 04.2011] ALA3#..6F |
31001-0W051 |
— | ||
| replacement | |||||
|
31001
|
31001
31001-0R030 Clutch Set, Cover & Disc[12.2008 - 04.2011] ALA3#..6F |
31001-0R030 |
US $507.60 |
||
|
31001
|
31001
31001-0W090
Clutch Set, Cover & Disc
[05.2011 - 12.2012] ALA3#..6F |
31001-0W090 |
— | ||
| replacement | |||||
|
31001
|
31001
31001-0R030 Clutch Set, Cover & Disc[05.2011 - 12.2012] ALA3#..6F |
31001-0R030 |
US $507.60 |
||
|
31126
|
31126
31126-20080 Boot, Clutch Release Fork[12.2008 - 12.2012] ALA3#..6F |
31126-20080 |
from US $11.36 |
||
|
31204
|
31204
31204-20140
Fork Sub-Assy, Clutch Release
[12.2008 - 12.2012] ALA3#..6F |
31204-20140 |
— | ||
|
31230
|
31230
31230-20200 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [12.2008 - 12.2012] ALA3#..6F |
31230-20200 |
US $26.31 |
||
|
31232A
|
31232A
31232-20031 Clip, Release Bearing Hub[12.2008 - 12.2012] ALA3#..6F |
31232-20031 |
from US $2.56 |
||
|
31236B
|
31236B
31236-20080
Support, Release Fork
[12.2008 - 12.2012] ALA3#..6F |
31236-20080 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
