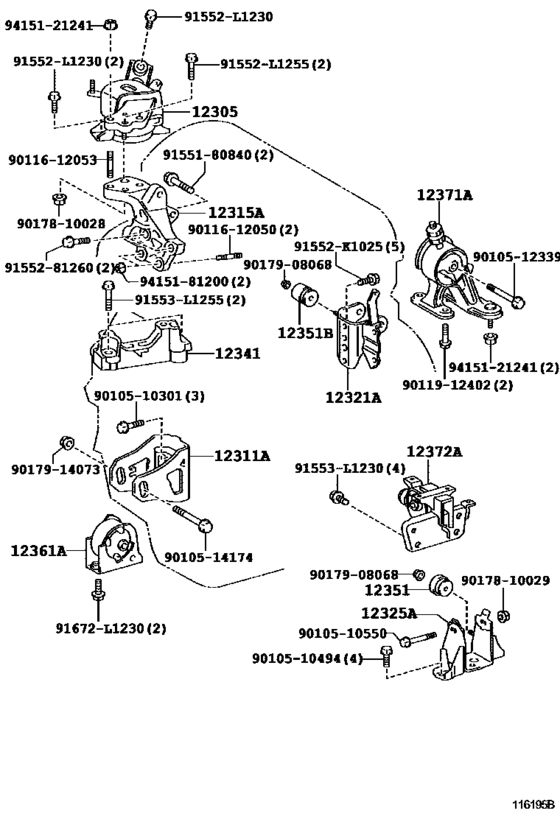

Mounting ([08.2009 - ] (0908- )2ADFTV..ALA35) Diagram Toyota RAV4/VANGUARD
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- ALA35
- grade
- G
- ENGINE
- 2ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 02.2010
- To
- 12.2012
- Gear Shift Type
- 6F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- DCRE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-26072 Insulator Sub-Assy, Engine Mounting, RhENGINE MOUNTING, RH [07.2009 - 12.2012] 2AD#..ALA3#..6F |
12305-26072 |
US $185.87 |
||
|
12311A
|
12311A
12311-26081
Bracket, Engine Mounting, Front(For Transverse Engine)
[08.2009 - 12.2012] 2AD#..ALA3#..6F |
12311-26081 |
— | ||
|
12315A
|
12315A
12315-26020
Bracket, Engine Mounting, Rh(For Transverse Engine)
[12.2008 - 12.2012] 2AD#..ALA3# |
12315-26020 |
— | ||
|
12321A
|
12321A
12321-26070
Bracket, Engine Mounting, Rear(For Transverse Engine)
[08.2009 - 12.2012] 2ADFTV..ALA35 |
12321-26070 |
— | ||
|
12325A
|
12325A
12325-26030
Bracket, Engine Mounting, Lh(For Transverse Engine)
[12.2008 - 12.2012] 2AD#..ALA3#..6F |
12325-26030 |
— | ||
|
12341
|
12341
12341-26011 Spacer, Engine Mounting[08.2008 - 12.2012] 2GRFE..GSA33; 1AZFE,2AZFE,2AD#..ACA30,33,38,ALA3# |
12341-26011 |
US $93.18 |
||
|
12351
|
12351
12351-22090 Damper, Engine MountingENGINE MOUNTING(FOR INSULATOR) [12.2008 - 12.2012] 2AD#..ALA3#..6F |
12351-22090 |
US $23.15 |
||
|
12351B
|
12351B
12351-26010 Damper, Engine Mounting(For Insulator)ENGINE MOUNTING(FOR INSULATOR) [08.2009 - 12.2012] 2ADFTV..ALA35..ATYPE;2ADFTV..ALA35..DCRE..BTYPE |
12351-26010 |
US $28.54 |
||
|
12361A
|
12361A
12361-0R040
Insulator, Engine Mounting, Front
[08.2009 - 12.2012] 2ADFTV..ALA35 |
12361-0R040 |
— | ||
|
12371A
|
12371A
12371-0R060
Insulator, Engine Mounting, Rear
[08.2009 - 12.2012] 2ADFTV..ALA35 |
12371-0R060 |
— | ||
|
12372A
|
12372A
12372-26010 Insulator, Engine Mounting, Lh(For Transverse Engine)ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) [12.2008 - 12.2012] 2AD#..ALA3#..6F |
12372-26010 |
US $108.48 |
||
|
91552K1025
|
91552K1025
91552-K1025 BOLT FLANGE |
91552-K1025 |
US $1.60 |
||
|
91552L1230
|
91552L1230
91552-L1230 BOLT FLANGE |
91552-L1230 |
US $2.56 |
||
|
91552L1255
|
91552L1255
91552-L1255 New Genuine Part |
91552-L1255 |
US $3.04 |
||
|
91553L1230
|
91553L1230
91553-L1230 New Genuine Part |
91553-L1230 |
US $3.36 |
||
|
91553L1255
|
91553L1255
91553-L1255 New Genuine Part |
91553-L1255 |
US $3.20 |
||
|
91672L1230
|
91672L1230
91672-L1230 BOLT FLANGE |
91672-L1230 |
US $3.04 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010510550
|
9010510550
90105-10550 BOLT FLANGE |
90105-10550 |
US $3.84 |
||
|
9010512339
|
9010512339
90105-12339 New Genuine Part |
90105-12339 |
US $5.28 |
||
|
9010514174
|
9010514174
90105-14174 New Genuine Part |
90105-14174 |
US $6.40 |
||
|
9011612050
|
9011612050
90116-12050 New Genuine Part |
90116-12050 |
US $1.16 |
||
|
9011612053
|
9011612053
90116-12053 BOLT STUD |
90116-12053 |
US $4.96 |
||
|
9011912402
|
9011912402
90119-12402 New Genuine Part |
90119-12402 |
US $4.32 |
||
|
9017810028
|
9017810028
90178-10028 New Genuine Part |
90178-10028 |
US $1.92 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
from US $0.96 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9017914073
|
9017914073
90179-14073 New Genuine Part |
90179-14073 |
US $3.84 |
||
|
9155180840
|
9155180840
91551-80840 Bolt(For Head To Camshaft Bearing Cap) |
91551-80840 |
from US $1.23 |
||
|
9155281260
|
9155281260
91552-81260 New Genuine Part |
91552-81260 |
US $4.08 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $1.01 |
||
|
9415181200
|
9415181200
94151-81200 New Genuine Part |
94151-81200 |
US $1.31 |
