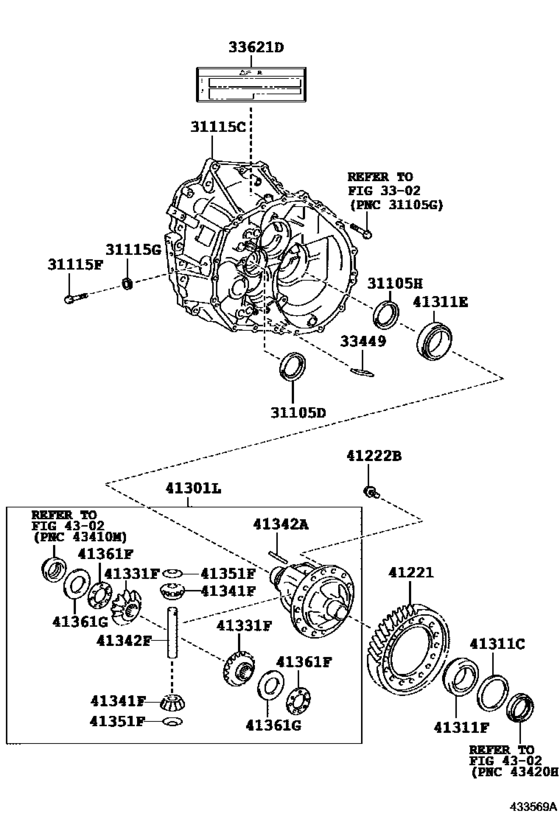

Front Axle Housing & Differential ([10.2015 - ] EA64F (1510- )ALA49..6F) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ALA49
- grade
- G
- ENGINE
- 2ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- RAV4
- From
- 10.2015
- Gear Shift Type
- 6F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105D
|
31105D
90311-30017 Seal, Oil, No.1(For Front Transaxle Case)OIL, NO.1(FOR FRONT TRANSAXLE CASE) [10.2015 - 07.2017] ALA49..6F..(G,M) |
90311-30017 |
from US $4.64 |
||
|
31105H
|
31105H
90311-55004 Seal, Type T Oil, No.1(For Cvt)OIL, NO.2(FOR TRANSAXLE CASE) [10.2015 - 07.2017] ALA49..6F..(G,M) RH; ASA44..6F..M;ASA44..6F..G..ARL |
90311-55004 |
from US $9.76 |
||
|
31115C
|
31115C
31115-42050
Case, Front Transaxle(Mtm)
[10.2015 - 07.2017] ALA49..6F..(G,M) |
31115-42050 |
— | ||
|
31115F
|
31115F
90105-12354 Bolt(For Front Transaxle Case)[10.2015 - 07.2017] ALA49..6F..(G,M) |
90105-12354 |
US $2.48 |
||
|
31115G
|
31115G
90430-13004 Gasket(For Front Transaxle Case)[10.2015 - 07.2017] ALA49..6F..(G,M) |
90430-13004 |
US $1.12 |
||
|
33449
|
33449
33449-60010 Magnet, Transmission[10.2015 - 07.2017] ALA49..6F..(G,M) |
33449-60010 |
from US $4.37 |
||
|
33621D
|
33621D
33621-12150 Label, Transaxle Oil Information[10.2015 - 07.2017] ASA44..6F..M;ALA49..6F..(G,M);ASA44..6F..G..ARL |
33621-12150 |
US $1.60 |
||
|
41221
|
41221
41221-42110
Gear, Front Differential Ring
[10.2015 - 07.2017] ALA49..6F..(G,M) |
41221-42110 |
— | ||
|
41222B
|
41222B
90105-12319 Bolt (For Front Differential Ring Gear Set)[10.2015 - 07.2017] ALA49..6F..(G,M) |
90105-12319 |
US $1.76 |
||
|
41301L
|
41301L
41301-42240
Case Sub-Assy, Front Differential, No.1
[10.2015 - 07.2017] ALA49..6F..(G,M) |
41301-42240 |
— | ||
|
41311C
|
41311C
90564-56109
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.00,MARK 0 |
90564-56109 |
— | ||
|
41311C
|
41311C
90564-56110
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.05,MARK 1 |
90564-56110 |
— | ||
|
41311C
|
41311C
90564-56111
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.10,MARK 2 |
90564-56111 |
— | ||
|
41311C
|
41311C
90564-56112
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.15,MARK 3 |
90564-56112 |
— | ||
|
41311C
|
41311C
90564-56113
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.20,MARK 4 |
90564-56113 |
— | ||
|
41311C
|
41311C
90564-56114
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.25,MARK 5 |
90564-56114 |
— | ||
|
41311C
|
41311C
90564-56115
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.30,MARK 6 |
90564-56115 |
— | ||
|
41311C
|
41311C
90564-56116
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.35,MARK 7 |
90564-56116 |
— | ||
|
41311C
|
41311C
90564-56117
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.40,MARK 8 |
90564-56117 |
— | ||
|
41311C
|
41311C
90564-56118
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.45,MARK 9 |
90564-56118 |
— | ||
|
41311C
|
41311C
90564-56119
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.50,MARK A |
90564-56119 |
— | ||
|
41311C
|
41311C
90564-56120
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.55,MARK B |
90564-56120 |
— | ||
|
41311C
|
41311C
90564-56121
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.60,MARK C |
90564-56121 |
— | ||
|
41311C
|
41311C
90564-56122
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.65,MARK D |
90564-56122 |
— | ||
|
41311C
|
41311C
90564-56123
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.70,MARK E |
90564-56123 |
— | ||
|
41311C
|
41311C
90564-56124
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.75,MARK F |
90564-56124 |
— | ||
|
41311C
|
41311C
90564-56125
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.80,MARK G |
90564-56125 |
— | ||
|
41311C
|
41311C
90564-56126
Shim (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) T=2.85,MARK H |
90564-56126 |
— | ||
|
41311E
|
41311E
90366-58010
Bearing, Tapered Roller (For Front Differential Case Front)
[10.2015 - 07.2017] ALA49..6F..(G,M) |
90366-58010 |
— | ||
|
41311F
|
41311F
90366-55063
Bearing, Tapered Roller (For Front Differential Case Rear)
[10.2015 - 07.2017] ALA49..6F..(G,M) |
90366-55063 |
— | ||
|
41331F
|
41331F
41331-12170
Gear, Front Differential Side
[10.2015 - 07.2017] ALA49..6F..(G,M) |
41331-12170 |
— | ||
|
41341F
|
41341F
41341-35050 Pinion, Differential[10.2015 - 07.2017] ALA49..6F..(G,M) |
41341-35050 |
US $29.79 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[10.2015 - 07.2017] ASA44..6F..M;ASA44..M..SA;ALA49,ASA42..6F..(G,M);ZSA42..RHD..6F..M..GEN;ASA44,ZSA4 2..6F..G..ARL |
90250-06058 |
from US $1.99 |
||
|
41342F
|
41342F
41342-20070 Shaft, Front Differential Pinion, No.1FRONT DIFFERENTIAL PINION, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) |
41342-20070 |
US $21.11 |
||
|
41351F
|
41351F
41351-20050 Washer, Front Differential Pinion ThrustFRONT DIFFERENTIAL PINION THRUST [10.2015 - 07.2017] ALA49..6F..(G,M) |
41351-20050 |
US $1.60 |
||
|
41361F
|
41361F
41361-20240 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.25 |
41361-20240 |
US $0.44 |
||
|
41361F
|
41361F
41361-20310 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.30 |
41361-20310 |
US $0.44 |
||
|
41361F
|
41361F
41361-20320 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.35 |
41361-20320 |
US $0.44 |
||
|
41361F
|
41361F
41361-20330 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.40 |
41361-20330 |
US $0.44 |
||
|
41361F
|
41361F
41361-20340 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.45 |
41361-20340 |
US $0.44 |
||
|
41361F
|
41361F
41361-20350 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.50 |
41361-20350 |
US $0.44 |
||
|
41361F
|
41361F
41361-20360 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.55 |
41361-20360 |
US $0.44 |
||
|
41361F
|
41361F
41361-20370 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.60 |
41361-20370 |
US $0.58 |
||
|
41361F
|
41361F
41361-20380 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.65 |
41361-20380 |
US $0.58 |
||
|
41361F
|
41361F
41361-20390 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.70 |
41361-20390 |
US $0.58 |
||
|
41361F
|
41361F
41361-20400 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.75 |
41361-20400 |
US $0.58 |
||
|
41361F
|
41361F
41361-20410 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.80 |
41361-20410 |
US $0.58 |
||
|
41361F
|
41361F
41361-20420 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.85 |
41361-20420 |
US $0.58 |
||
|
41361F
|
41361F
41361-20430 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.90 |
41361-20430 |
US $3.79 |
||
|
41361F
|
41361F
41361-20440 Washer, Front Differential Side Gear Thrust, No.1FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 [10.2015 - 07.2017] ALA49..6F..(G,M) T=1.95 |
41361-20440 |
US $3.93 |
||
|
41361G
|
41361G
90208-45001 Washer, Conical Spring(For Center Differential Side Gear)[10.2015 - 07.2017] ASA44..M..SA;ALA49..6F..(G,M) |
90208-45001 |
US $3.84 |
