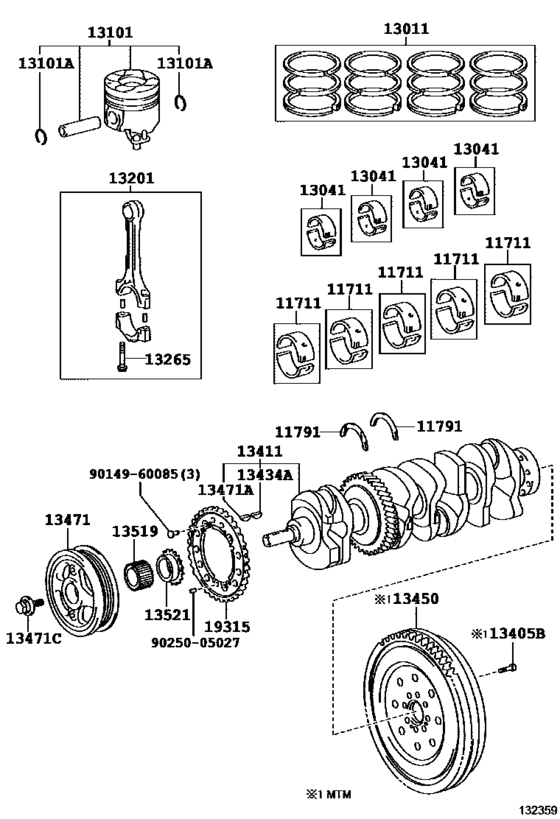

Crankshaft & Piston ([10.2015 - ] (1510- )2AD#) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ALA49
- grade
- G
- ENGINE
- 2ADFTV
- TRANSMISSION
- ATM
- DESTINATION
- SA
- Model
- RAV4
- From
- 10.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11711
|
11711
11701-0R020-01
Bearing, Crankshaft
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARK1,REFER REPAIR MANUAL |
11701-0R020-01 |
— | ||
|
11711
|
11711
11701-0R020-02
Bearing, Crankshaft
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARK2,REFER REPAIR MANUAL |
11701-0R020-02 |
— | ||
|
11711
|
11711
11701-0R020-03
Bearing, Crankshaft
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARK3,REFER REPAIR MANUAL |
11701-0R020-03 |
— | ||
|
11711
|
11711
11701-0R020-04
Bearing, Crankshaft
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARK4,REFER REPAIR MANUAL |
11701-0R020-04 |
— | ||
|
11711
|
11711
11701-0R020-05
Bearing, Crankshaft
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARK5,REFER REPAIR MANUAL |
11701-0R020-05 |
— | ||
|
11711
|
11711
11701-0R020-A0
Bearing, Crankshaft
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARKA,REFER REPAIR MANUAL |
11701-0R020-A0 |
— | ||
|
11791
|
11791
11791-0R010
Washer, Crankshaft Thrust, Upper
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) STD |
11791-0R010 |
— | ||
|
13011
|
13011
13011-0R050
Ring Set, Piston
[10.2015 - 01.2017] 2AD#..ALA49 STD |
13011-0R050 |
— | ||
|
13011
|
13011
13011-0R060 Ring Set, Piston[02.2017 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) STD |
13011-0R060 |
US $207.36 |
||
|
13041
|
13041
13041-0R020-01
Bearing, Connecting Rod
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARK1,REFER REPAIR MANUAL |
13041-0R020-01 |
— | ||
|
13041
|
13041
13041-0R020-02
Bearing, Connecting Rod
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARK2,REFER REPAIR MANUAL |
13041-0R020-02 |
— | ||
|
13041
|
13041
13041-0R020-03
Bearing, Connecting Rod
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARK3,REFER REPAIR MANUAL |
13041-0R020-03 |
— | ||
|
13041
|
13041
13041-0R020-04
Bearing, Connecting Rod
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARK4,REFER REPAIR MANUAL |
13041-0R020-04 |
— | ||
|
13041
|
13041
13041-0R020-05
Bearing, Connecting Rod
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) MARK5,REFER REPAIR MANUAL |
13041-0R020-05 |
— | ||
|
13101
|
13101
13101-0R080 Piston Sub-Assy, W/pin[10.2015 - 06.2016] 2AD#..ALA49 STD |
13101-0R080 |
US $101.92 |
||
|
13101
|
13101
13101-0R081
Piston Sub-Assy, W/pin
[07.2016 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) STD |
13101-0R081 |
— | ||
|
13101A
|
13101A
90520-W0001 Ring, Hole Snap(For Piston Pin)HOLE SNAP(FOR PISTON PIN) [10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
90520-W0001 |
US $1.16 |
||
|
13201
|
13201
13201-0R011
Rod Sub-Assy, Connecting
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
13201-0R011 |
— | ||
|
13265
|
13265
13265-22031 Bolt, Connecting RodCONNECTING ROD [10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
13265-22031 |
from US $3.72 |
||
|
13411
|
13411
13401-0R021
Crankshaft
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
13401-0R021 |
— | ||
|
13434A
|
13434A
95161-30516 Key(For Oil Pump Drive Spline)[10.2015 -] 2ARFXE..AVA4# *347; 2ARFE..ASA42..6F..X;2ARFE..ASA44..X..ARL;2AR#..ASA42,AVA4#..6FC,A;2ARFE..ASA44..6F C..(G,M)..ARL;2ARFE..ASA44..6FC..M..(GCC,GEN);2ARFE..ASA44..(G,X)..(GCC,GEN,SA) *419 OR *463; 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49.. |
95161-30516 |
from US $1.17 |
||
|
13471
|
13471
13408-0R030 Pulley, CrankshaftCRANKSHAFT [10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
13408-0R030 |
US $163.07 |
||
|
13471A
|
13471A
95161-30516 Key(For Oil Pump Drive Spline)[10.2015 -] 2ARFXE..AVA4# *347; 2ARFE..ASA42..6F..X;2ARFE..ASA44..X..ARL;2AR#..ASA42,AVA4#..6FC,A;2ARFE..ASA44..6F C..(G,M)..ARL;2ARFE..ASA44..6FC..M..(GCC,GEN);2ARFE..ASA44..(G,X)..(GCC,GEN,SA) *419 OR *463; 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49.. |
95161-30516 |
from US $1.17 |
||
|
13471C
|
13471C
90119-18003 Bolt(For Crankshaft Pulley Set)[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
90119-18003 |
US $9.12 |
||
|
13519
|
13519
13519-26010 Gear, Oil Pump DriveOIL PUMP DRIVE [10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
13519-26010 |
US $23.59 |
||
|
13521
|
13521
13521-26010
Gear Or Sprocket, Crankshaft Timing
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
13521-26010 |
— | ||
|
19315
|
19315
19315-0R011
Plate, Crank Angle Sensor, No.1
[10.2015 - 05.2016] 2AD#..ALA49 |
19315-0R011 |
— | ||
|
19315
|
19315
19315-0R020
Plate, Crank Angle Sensor, No.1
[05.2016 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
19315-0R020 |
— | ||
|
9014960085
|
9014960085
90149-60085 New Genuine Part |
90149-60085 |
US $0.61 |
||
|
9025005027
|
9025005027
90250-05027 Pin, Straight |
90250-05027 |
from US $0.80 |
