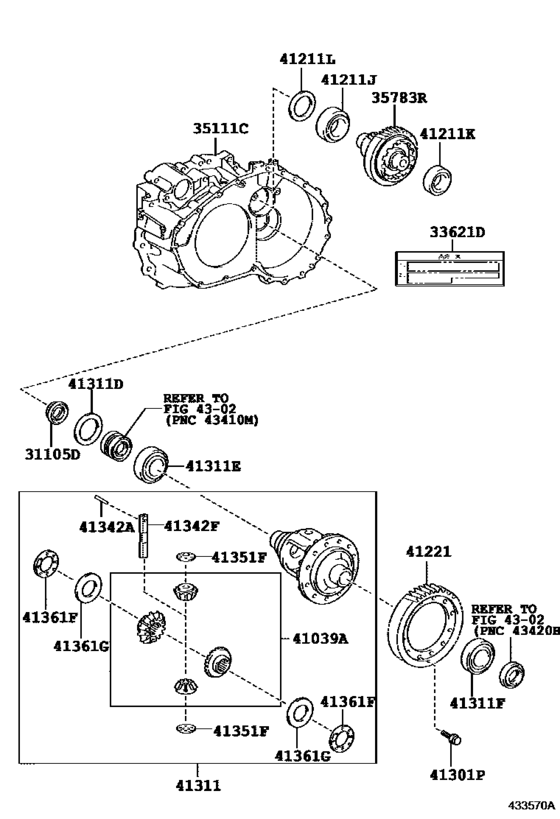

Front Axle Housing & Differential ([10.2015 - ] U660F (1510- )ALA49..6FC) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ALA49
- grade
- G
- ENGINE
- 2ADFTV
- TRANSMISSION
- ATM
- DESTINATION
- SA
- Model
- RAV4
- From
- 10.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105D
|
31105D
90311-55005 Seal, Oil, No.1(For Front Transaxle Case)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) |
90311-55005 |
from US $9.76 |
||
|
33621D
|
33621D
33621-28021 Label, Transaxle Oil Information[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) |
33621-28021 |
US $1.60 |
||
|
35111C
|
35111C
35105-42040
Housing, Transaxle
[10.2015 -] ALA49..6FC |
35105-42040 |
— | ||
|
35783R
|
35783R
35705-28010 Gear, Counter Driven[10.2015 -] ALA49..6FC |
35705-28010 |
US $933.30 |
||
|
41039A
|
41039A
41039-48040 Gear Kit, Differential[10.2015 -] ALA49..6FC; ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) *284 |
41039-48040 |
US $165.98 |
||
|
41211J
|
41211J
90366-42012 Bearing, Tepered Roller (For Differential Drive Pinion Rh)[10.2015 -] ALA49..6FC |
90366-42012 |
from US $42.56 |
||
|
41211K
|
41211K
90366-35176 Bearing, Tepered Roller (For Differential Drive Pinion Lh)[10.2015 -] ALA49..6FC |
90366-35176 |
US $34.50 |
||
|
41211L
|
41211L
90564-71014 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.000 |
90564-71014 |
US $1.60 |
||
|
41211L
|
41211L
90564-71015 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.025 |
90564-71015 |
US $1.60 |
||
|
41211L
|
41211L
90564-71016 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.050 |
90564-71016 |
US $1.60 |
||
|
41211L
|
41211L
90564-71017 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.075 |
90564-71017 |
US $1.60 |
||
|
41211L
|
41211L
90564-71018 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.100 |
90564-71018 |
US $1.60 |
||
|
41211L
|
41211L
90564-71019 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.125 |
90564-71019 |
US $1.60 |
||
|
41211L
|
41211L
90564-71020 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.150 |
90564-71020 |
US $2.48 |
||
|
41211L
|
41211L
90564-71021 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.175 |
90564-71021 |
US $2.48 |
||
|
41211L
|
41211L
90564-71022 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.200 |
90564-71022 |
US $2.48 |
||
|
41211L
|
41211L
90564-71023 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.225 |
90564-71023 |
US $2.48 |
||
|
41211L
|
41211L
90564-71024 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.250 |
90564-71024 |
US $2.48 |
||
|
41211L
|
41211L
90564-71025 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.275 |
90564-71025 |
US $2.48 |
||
|
41211L
|
41211L
90564-71026 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.300 |
90564-71026 |
US $2.48 |
||
|
41211L
|
41211L
90564-71027 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.325 |
90564-71027 |
US $2.48 |
||
|
41211L
|
41211L
90564-71028 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.350 |
90564-71028 |
US $2.48 |
||
|
41211L
|
41211L
90564-71029 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.375 |
90564-71029 |
US $2.48 |
||
|
41211L
|
41211L
90564-71030 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.400 |
90564-71030 |
US $2.48 |
||
|
41211L
|
41211L
90564-71031 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.425 |
90564-71031 |
US $2.48 |
||
|
41211L
|
41211L
90564-71032 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.450 |
90564-71032 |
US $2.48 |
||
|
41211L
|
41211L
90564-71033 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.475 |
90564-71033 |
US $2.48 |
||
|
41211L
|
41211L
90564-71034 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.500 |
90564-71034 |
US $2.48 |
||
|
41211L
|
41211L
90564-71035 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.525 |
90564-71035 |
US $2.48 |
||
|
41211L
|
41211L
90564-71036 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.550 |
90564-71036 |
US $2.48 |
||
|
41211L
|
41211L
90564-71037 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.575 |
90564-71037 |
US $2.48 |
||
|
41211L
|
41211L
90564-71038 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.600 |
90564-71038 |
US $2.48 |
||
|
41211L
|
41211L
90564-71039 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.625 |
90564-71039 |
US $2.48 |
||
|
41211L
|
41211L
90564-71040 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.650 |
90564-71040 |
US $2.48 |
||
|
41211L
|
41211L
90564-71041 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.675 |
90564-71041 |
US $2.48 |
||
|
41211L
|
41211L
90564-71042 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.700 |
90564-71042 |
US $2.48 |
||
|
41211L
|
41211L
90564-71043 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.725 |
90564-71043 |
US $2.48 |
||
|
41211L
|
41211L
90564-71044 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.750 |
90564-71044 |
US $2.48 |
||
|
41211L
|
41211L
90564-71045 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.775 |
90564-71045 |
US $2.48 |
||
|
41211L
|
41211L
90564-71046 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.800 |
90564-71046 |
US $2.48 |
||
|
41211L
|
41211L
90564-71047 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.825 |
90564-71047 |
US $2.48 |
||
|
41211L
|
41211L
90564-71048 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.850 |
90564-71048 |
US $2.48 |
||
|
41211L
|
41211L
90564-71049 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.875 |
90564-71049 |
US $2.48 |
||
|
41211L
|
41211L
90564-71050 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.900 |
90564-71050 |
US $2.48 |
||
|
41211L
|
41211L
90564-71051 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.925 |
90564-71051 |
US $2.48 |
||
|
41211L
|
41211L
90564-71052 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.950 |
90564-71052 |
US $2.48 |
||
|
41211L
|
41211L
90564-71053 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=2.975 |
90564-71053 |
US $2.48 |
||
|
41211L
|
41211L
90564-71054 Shim (For Differential Drive Pinion)[10.2015 -] ALA49..6FC T=3.000 |
90564-71054 |
US $2.48 |
||
|
41221
|
41221
41221-28150
Gear, Front Differential Ring
[10.2015 -] ALA49..6FC |
41221-28150 |
— | ||
| replacement | |||||
|
41221
|
41221
41221-28160 Gear, Front Differential Ring[10.2015 -] ALA49..6FC |
41221-28160 |
US $131.04 |
||
|
41301P
|
41301P
90105-12303 Bolt (For Front Differential Ring Gear Set)[10.2015 -] ALA49,ASA42..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) |
90105-12303 |
US $2.04 |
||
|
41311
|
41311
41301-42161
Case, Front Differential
[10.2015 -] ALA49..6FC |
41301-42161 |
— | ||
|
41311D
|
41311D
90564-82009 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.000 |
90564-82009 |
US $2.48 |
||
|
41311D
|
41311D
90564-82010 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.025 |
90564-82010 |
US $2.48 |
||
|
41311D
|
41311D
90564-82011 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.050 |
90564-82011 |
US $2.48 |
||
|
41311D
|
41311D
90564-82012 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.075 |
90564-82012 |
US $2.48 |
||
|
41311D
|
41311D
90564-82013 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.100 |
90564-82013 |
US $2.48 |
||
|
41311D
|
41311D
90564-82014 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.125 |
90564-82014 |
US $2.48 |
||
|
41311D
|
41311D
90564-82015 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.150 |
90564-82015 |
US $2.48 |
||
|
41311D
|
41311D
90564-82016 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.175 |
90564-82016 |
US $2.48 |
||
|
41311D
|
41311D
90564-82017 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.200 |
90564-82017 |
US $2.48 |
||
|
41311D
|
41311D
90564-82018 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.225 |
90564-82018 |
US $2.48 |
||
|
41311D
|
41311D
90564-82019 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.250 |
90564-82019 |
US $2.48 |
||
|
41311D
|
41311D
90564-82020 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.275 |
90564-82020 |
US $2.48 |
||
|
41311D
|
41311D
90564-82021 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.300 |
90564-82021 |
US $2.48 |
||
|
41311D
|
41311D
90564-82022 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.325 |
90564-82022 |
US $2.48 |
||
|
41311D
|
41311D
90564-82023 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.350 |
90564-82023 |
US $2.48 |
||
|
41311D
|
41311D
90564-82024 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.375 |
90564-82024 |
US $2.48 |
||
|
41311D
|
41311D
90564-82025 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.400 |
90564-82025 |
US $2.48 |
||
|
41311D
|
41311D
90564-82026 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.425 |
90564-82026 |
US $2.48 |
||
|
41311D
|
41311D
90564-82027 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.450 |
90564-82027 |
US $2.48 |
||
|
41311D
|
41311D
90564-82028 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.475 |
90564-82028 |
US $2.48 |
||
|
41311D
|
41311D
90564-82029 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.500 |
90564-82029 |
US $2.48 |
||
|
41311D
|
41311D
90564-82030 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.525 |
90564-82030 |
US $2.48 |
||
|
41311D
|
41311D
90564-82031 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.550 |
90564-82031 |
US $2.48 |
||
|
41311D
|
41311D
90564-82032 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.575 |
90564-82032 |
US $2.48 |
||
|
41311D
|
41311D
90564-82033 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.600 |
90564-82033 |
US $2.48 |
||
|
41311D
|
41311D
90564-82034 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.625 |
90564-82034 |
US $2.48 |
||
|
41311D
|
41311D
90564-82035 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.650 |
90564-82035 |
US $2.48 |
||
|
41311D
|
41311D
90564-82036 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.675 |
90564-82036 |
US $2.48 |
||
|
41311D
|
41311D
90564-82037 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.700 |
90564-82037 |
US $2.48 |
||
|
41311D
|
41311D
90564-82038 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.725 |
90564-82038 |
US $2.48 |
||
|
41311D
|
41311D
90564-82039 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.750 |
90564-82039 |
US $2.48 |
||
|
41311D
|
41311D
90564-82040 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.775 |
90564-82040 |
US $2.48 |
||
|
41311D
|
41311D
90564-82041 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.800 |
90564-82041 |
US $3.20 |
||
|
41311D
|
41311D
90564-82042 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.825 |
90564-82042 |
US $3.20 |
||
|
41311D
|
41311D
90564-82043 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.850 |
90564-82043 |
US $3.20 |
||
|
41311D
|
41311D
90564-82044 Shim (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=2.875 |
90564-82044 |
US $3.20 |
||
|
41311E
|
41311E
90366-62004 Bearing, Tapered Roller (For Front Differential Case Front)[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) |
90366-62004 |
from US $47.17 |
||
|
41311F
|
41311F
90366-55077 Bearing, Tapered Roller (For Front Differential Case Rear)[10.2015 -] ALA49..6FC |
90366-55077 |
US $43.32 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[10.2015 -] ZSA44..6F;ASA44..X..ARL;ALA49,ASA42..6FC;ZSA42..LHD..6F..M;ALA49,ASA42..6F..X;ZSA4 2..6F..(G,X)..GEN;ASA44..6FC..(G,M)..ARL;ASA44..6FC..M..(GCC,GEN);ASA44..(G,X)..(G CC,GEN,SA);ZSA42..6F..(M,X)..(ARL,SA) |
90250-06058 |
US $2.56 |
||
|
41342F
|
41342F
41342-33051 Shaft, Front Differential Pinion, No.1[10.2015 -] ALA49..6FC; ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) *284 |
41342-33051 |
US $23.44 |
||
|
41351F
|
41351F
41351-33030 Washer, Front Differential Pinion Thrust[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) |
41351-33030 |
from US $1.75 |
||
|
41361F
|
41361F
41361-33020 Washer, Front Differential Side Gear Thrust, No.1[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=1.50 |
41361-33020 |
US $3.49 |
||
|
41361F
|
41361F
41361-33030 Washer, Front Differential Side Gear Thrust, No.1[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=1.55 |
41361-33030 |
US $3.49 |
||
|
41361F
|
41361F
41361-33040 Washer, Front Differential Side Gear Thrust, No.1[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=1.60 |
41361-33040 |
US $3.49 |
||
|
41361F
|
41361F
41361-33050 Washer, Front Differential Side Gear Thrust, No.1[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=1.65 |
41361-33050 |
US $3.49 |
||
|
41361F
|
41361F
41361-33060 Washer, Front Differential Side Gear Thrust, No.1[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=1.70 |
41361-33060 |
US $3.49 |
||
|
41361F
|
41361F
41361-33070 Washer, Front Differential Side Gear Thrust, No.1[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=1.75 |
41361-33070 |
US $3.49 |
||
|
41361F
|
41361F
41361-33080 Washer, Front Differential Side Gear Thrust, No.1[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=1.80 |
41361-33080 |
US $3.64 |
||
|
41361F
|
41361F
41361-33090 Washer, Front Differential Side Gear Thrust, No.1[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=1.85 |
41361-33090 |
US $3.64 |
||
|
41361F
|
41361F
41361-33100 Washer, Front Differential Side Gear Thrust, No.1[10.2015 -] ALA49..6FC;ASA44..6FC..(G,X);ASA44..6FC..M..(ARL,GCC,GEN) T=1.90 |
41361-33100 |
US $3.79 |
||
|
41361G
|
41361G
90208-45001 Washer, Conical Spring(For Center Differential Side Gear)[10.2015 -] ALA49..6FC |
90208-45001 |
US $3.84 |
||
